Turbo Model

  1. Remove the clip (B) above the air cleaner upper cover.

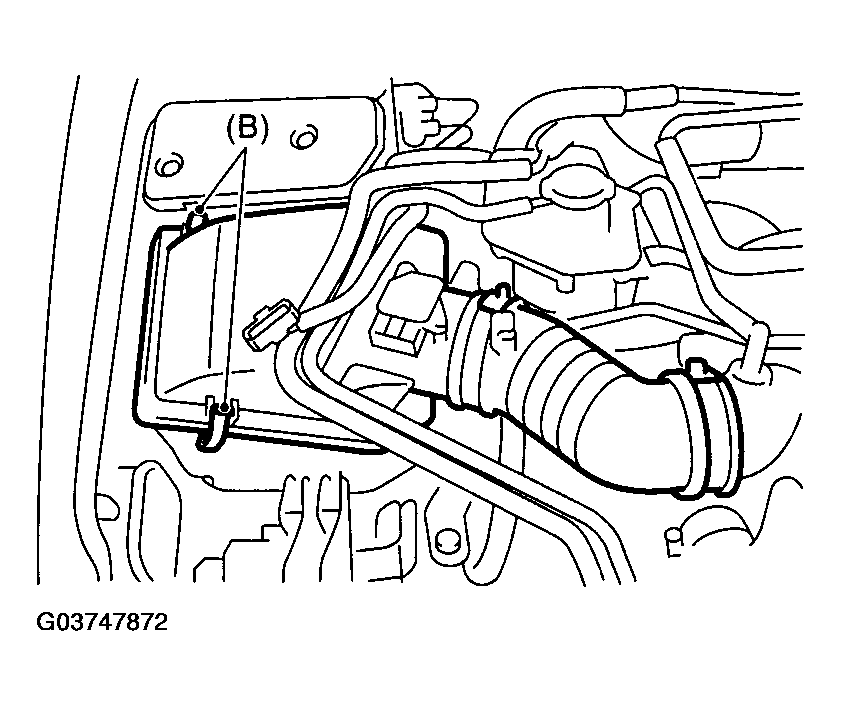

    Fig 1: Removing Air Cleaner Upper Cover Clip (TURBO Model)
    G03747872Courtesy of SUBARU OF AMERICA, INC.
  2. Remove air cleaner.

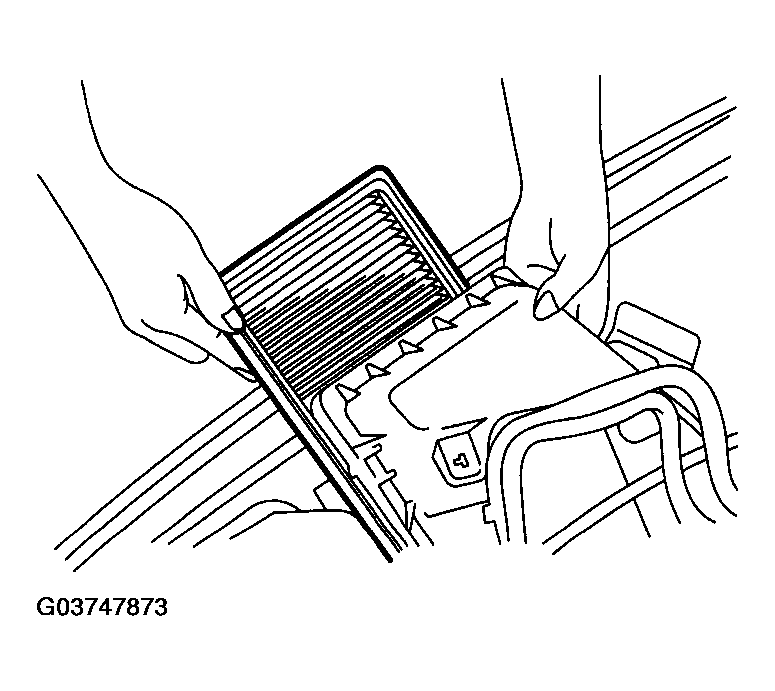

    Fig 2: Removing Air Cleaner (Turbo Model)
    G03747873Courtesy of SUBARU OF AMERICA, INC.
  3. Install in the reverse order of removal.
    CAUTION: Align protruding portions of air cleaner upper cover with holes of air cleaner lower case, then secure upper cover to lower case.
    Fig 3: Securing Air Cleaner Upper Cover To Air Cleaner Lower Case
    G03747874Courtesy of SUBARU OF AMERICA, INC.
