Non-TURBO AT models

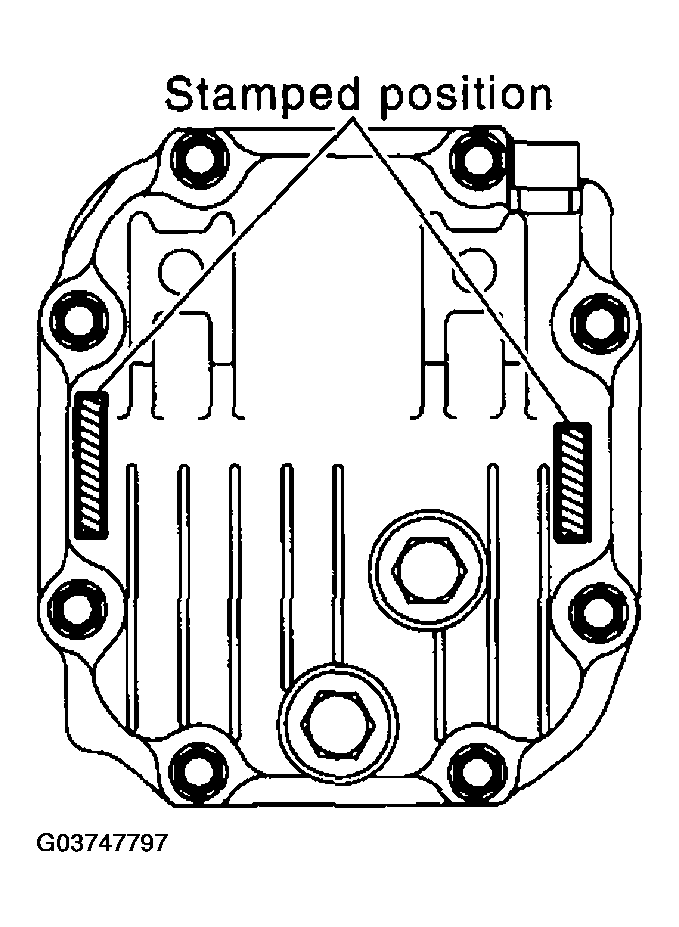

Fig 1: Identifying Stamp Location (Non-TURBO AT Models)

G03747797

Courtesy of SUBARU OF AMERICA, INC.

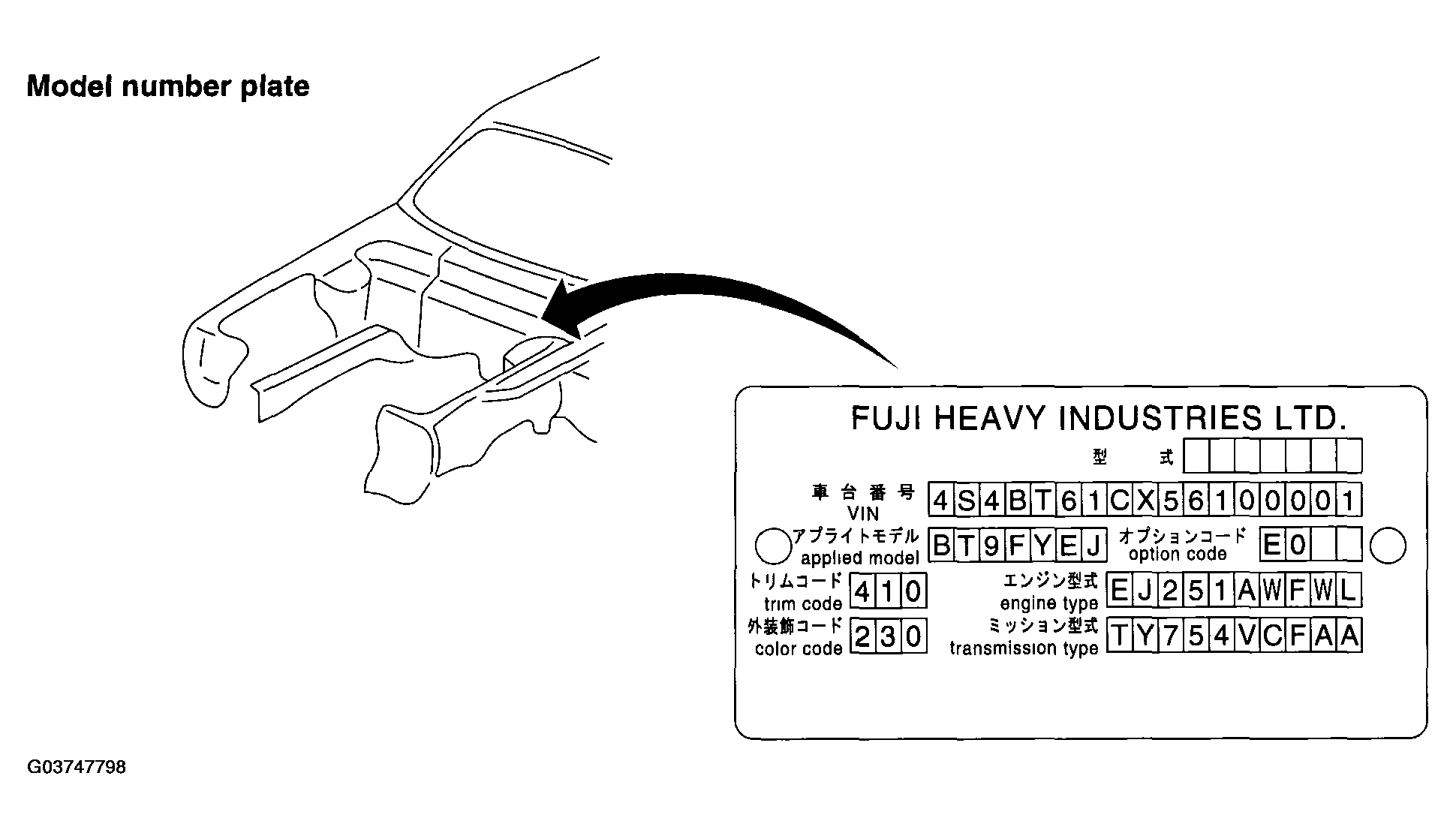

Fig 2: Identifying Model Number Plate Location

G03747798

Courtesy of SUBARU OF AMERICA, INC.
