Combination Switch (Light): Removal

WARNING: This page is about a different car, the 2005 Subaru Outback and 2005 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the instrument panel lower cover. < Ref. to REMOVAL , Instrument Panel Lower Cover. >
  3. Remove the screws and remove the steering column cover (upper and lower).
    Fig 1: Removing Screws And Steering Column Cover
    G03833531Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the connector from combination switch.
  5. Remove the screws which secure switch, then remove the combination switch.

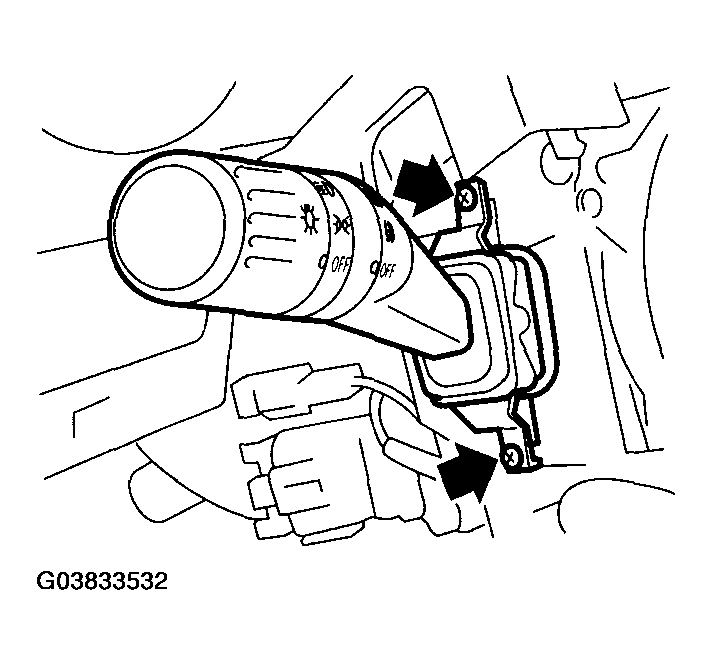

Fig 2: Removing Screws Which Secure Switch
G03833532Courtesy of SUBARU OF AMERICA, INC.
