Home >> Subaru >> 2005 >> Baja Base, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Engine (Diagnostics) (H4SO) >> Drive Cycle >> Operation >> Drive According To The Following Drive Pattern

Drive According To The Following Drive Pattern

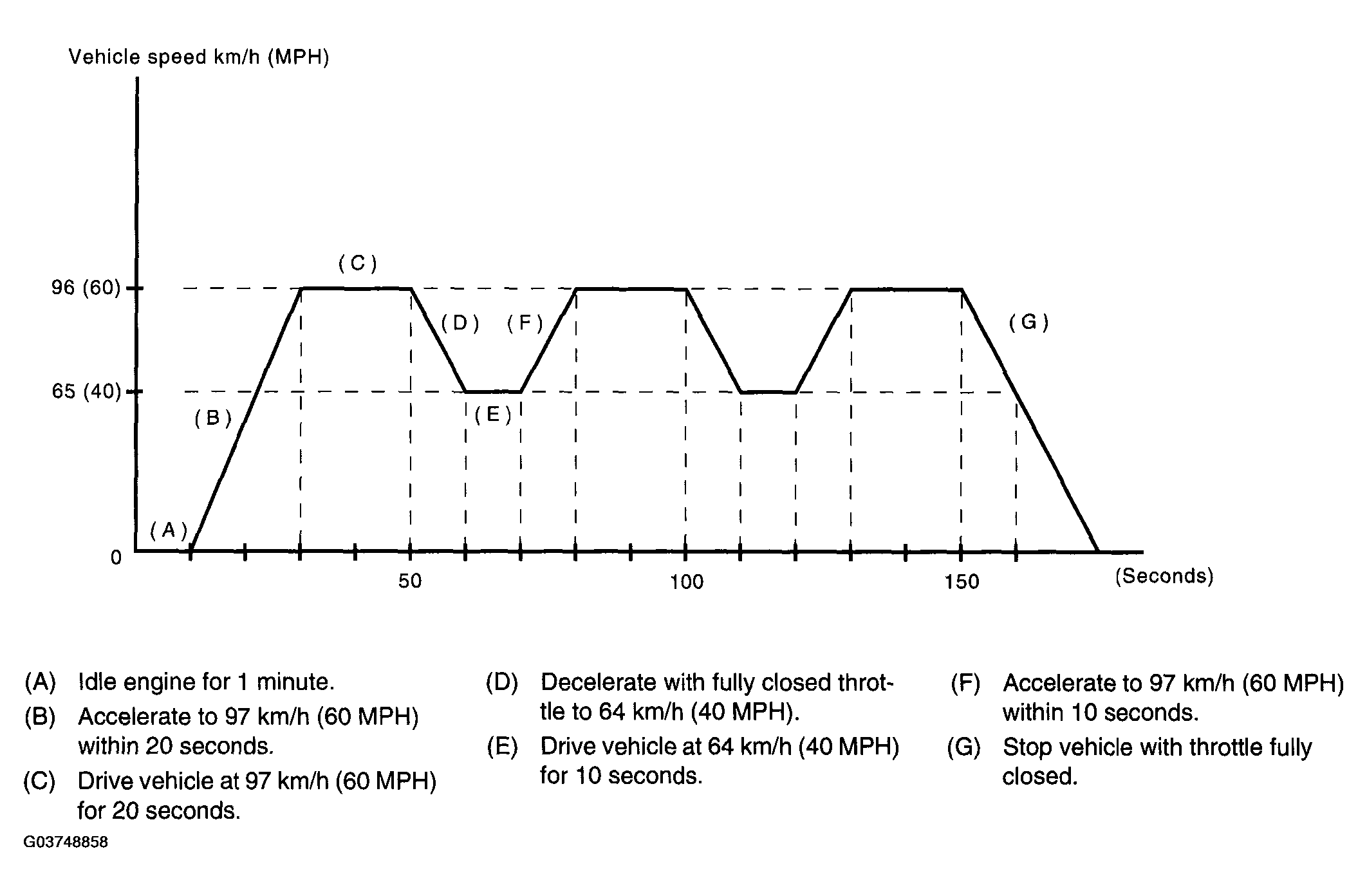

Fig 1: Drive Pattern
G03748858Courtesy of SUBARU OF AMERICA, INC.
DTC ITEM CONDITION

DTC No. Item Condition
*P0065 Air assisted injector control range/performance -
*P0121 Throttle/pedal position sensor/switch "A" circuit range/performance -
*P0126 INSUFFICIENT COOLANT TEMPERATURE FOR STABLE OPERATION -
*P0139 O2 Sensor circuit slow response (Bank 1 Sensor 2) -
*P0171 System too lean (Bank 1) -
*P0172 System too rich (Bank 1) -
*P0301 Cylinder 1 misfire detected -
*P0302 Cylinder 2 misfire detected -
*P0303 Cylinder 3 misfire detected -
*P0304 Cylinder 4 misfire detected -
*P0400 Exhaust gas recirculation flow -
*P2096 Post catalyst fuel trim system too lean bank 1 -
*P2097 Post catalyst fuel trim system too rich bank 1 -
