Rear Regulator and Motor Assembly: Removal

Remove door trim. < Ref. to REMOVAL , Rear Door Trim . >
Remove sealing cover. < Ref. to REMOVAL , Rear Sealing Cover .>
Remove door glass. < Ref. to , REMOVAL , Rear Door Glass. >
Secure bolts using screwdriver to remove front sash adjusting nut.

Fig 1: Removing Front Sash Adjusting Nut
Courtesy of SUBARU OF AMERICA, INC.
Remove front sash.
Disconnect electrical connector regulator motor.
Loosen four bolts and two nuts to remove regulator assembly.

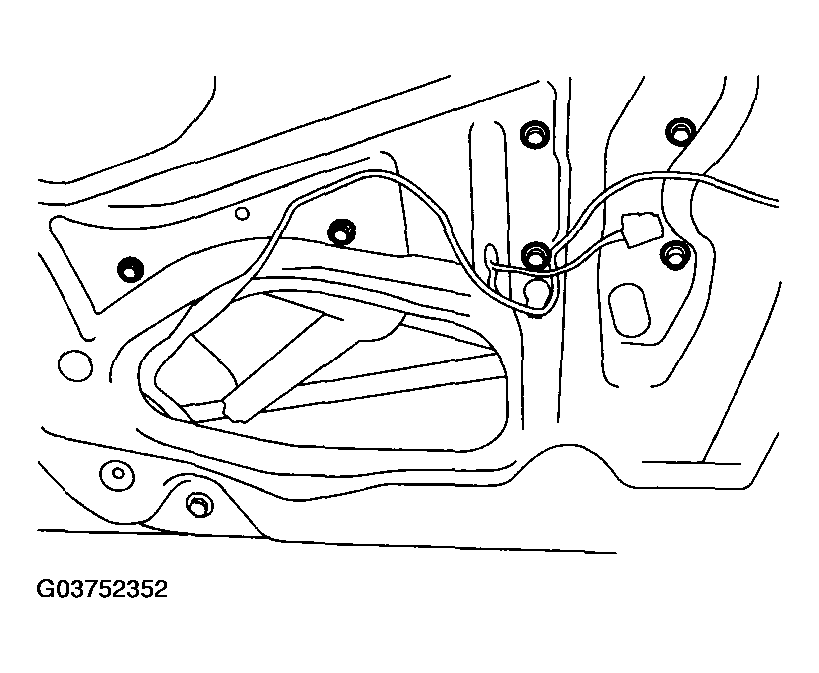

Fig 2: Removing Regulator Assembly
Courtesy of SUBARU OF AMERICA, INC.
Loosen screws to remove motor assembly.

Fig 3: Removing Motor Assembly
Courtesy of SUBARU OF AMERICA, INC.
