Starting/Charging Systems (H4SO): Generator: Installation

Install in the reverse order of removal.

CAUTION: Check and adjust the V-belt tension. < Ref. to INSPECTION , V-belt. > or < Ref. to INSTALLATION , V-belt. >

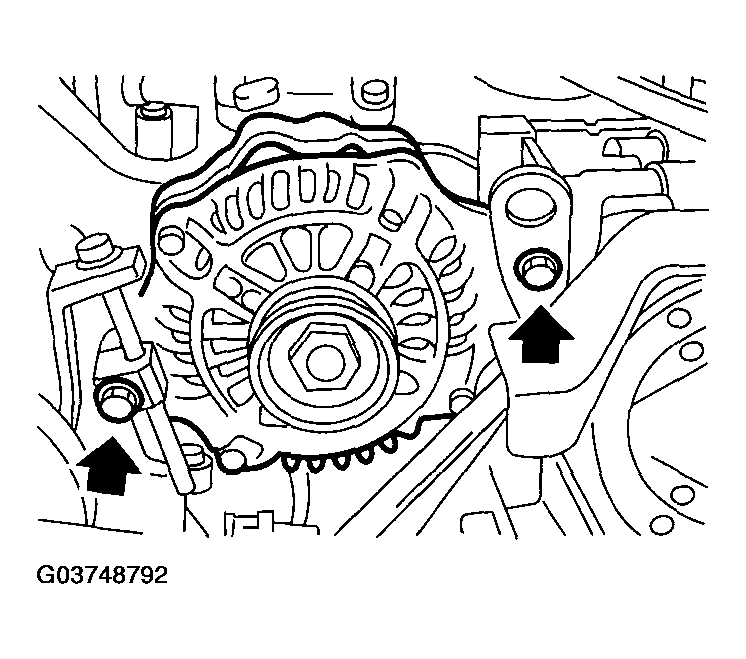

Fig 1: Installing Bolt

Courtesy of SUBARU OF AMERICA, INC.
