Integrated Module: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the instrument panel lower cover. < Ref. to REMOVAL . >
  3. Remove the nut, then remove the integrated module while disconnecting the connector.

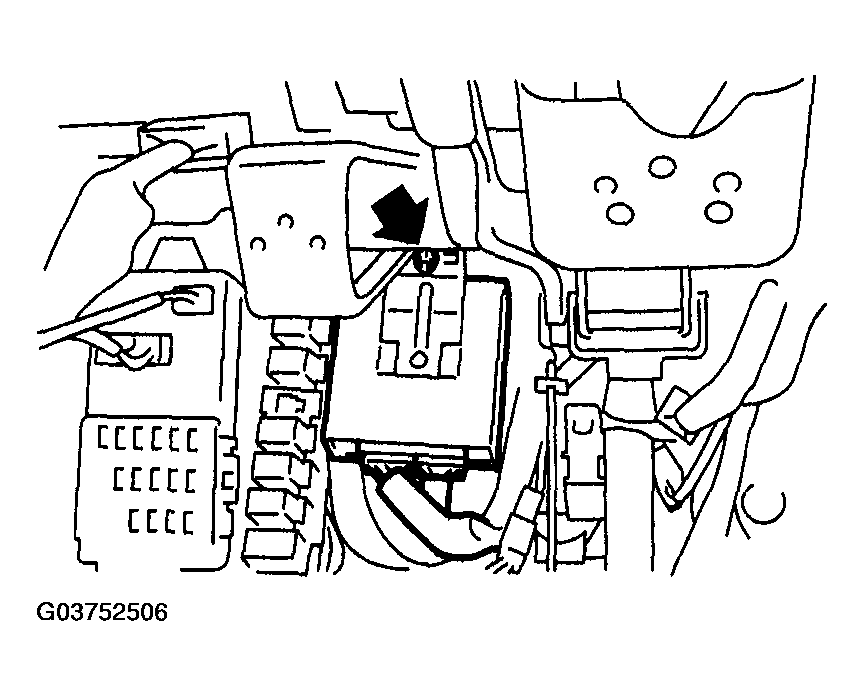

    Fig 1: Removing Integrated Module
    G03752506Courtesy of SUBARU OF AMERICA, INC.
