General Description
>>
Components With Torque Specifications
>>
Switch Back Gate Lock
Switch Back Gate Lock

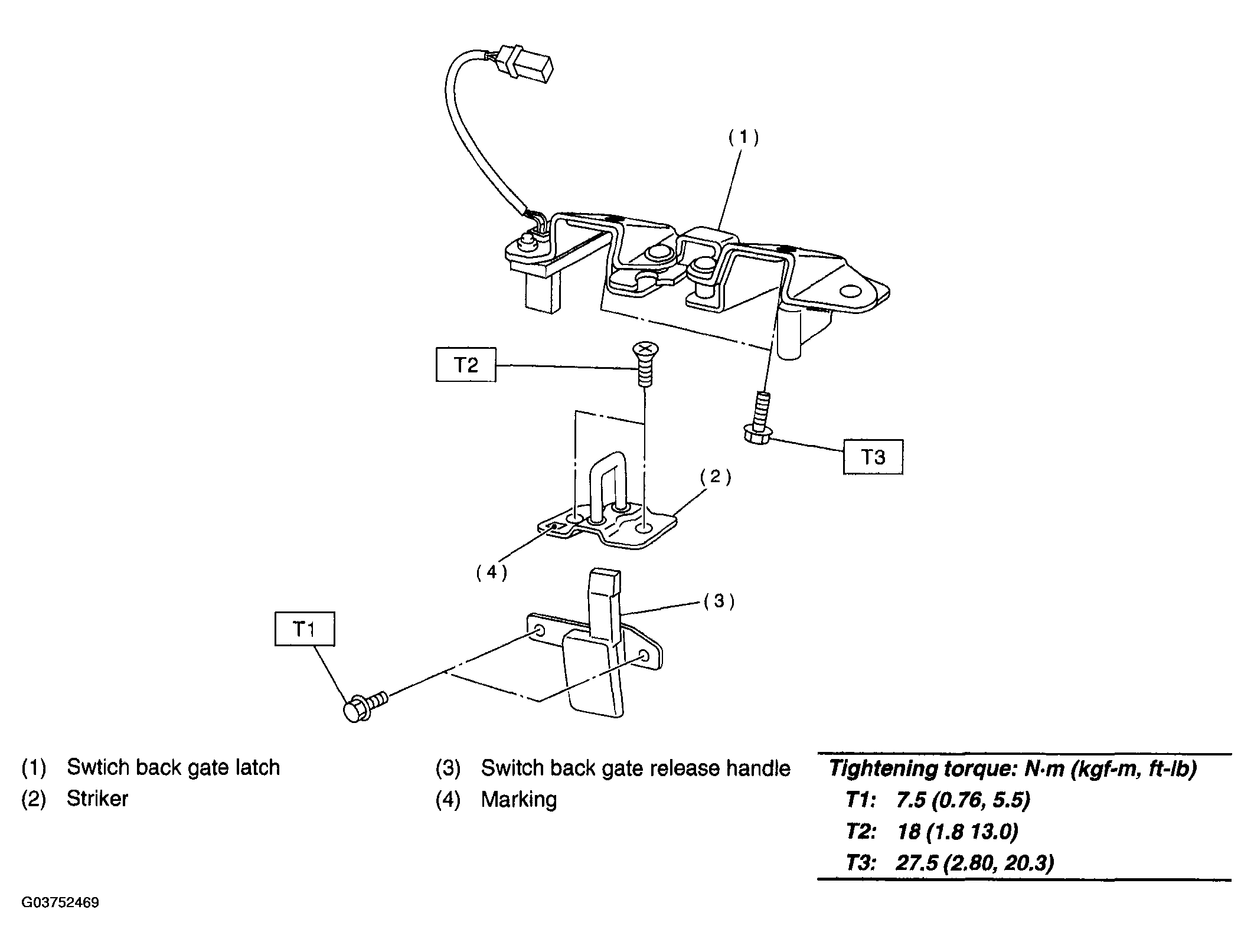

Fig 1: Exploded View Of Switch Back Gate Lock
Courtesy of SUBARU OF AMERICA, INC.
NOTE:
When installing striker, mount with marked portion facing the vehicle front.
Courtesy of SUBARU OF AMERICA, INC.
