Pitching Stopper

  1. Remove the air cleaner case or intake chamber. (Non-TURBO model)

    < Ref. to REMOVAL , Air Cleaner Case. >

  2. Remove the intercooler. (TURBO model)

    < Ref. to REMOVAL , Intercooler. >

  3. Remove the pitching stopper.

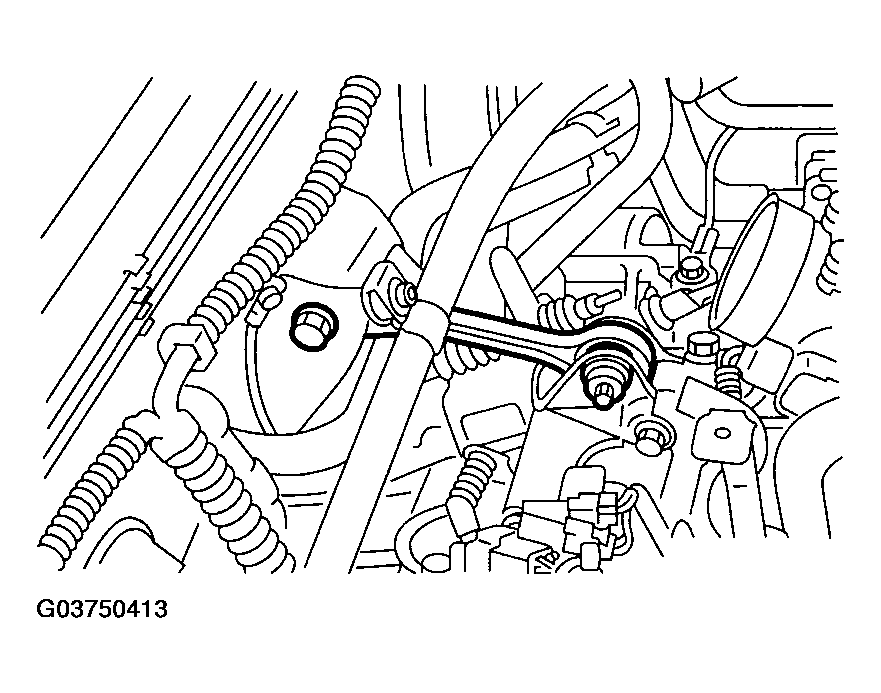

    Fig 1: Removing Pitching Stopper
    G03750413Courtesy of SUBARU OF AMERICA, INC.
