Parking Pawl: Installation

  1. Install the parking pawl, shaft and return spring.

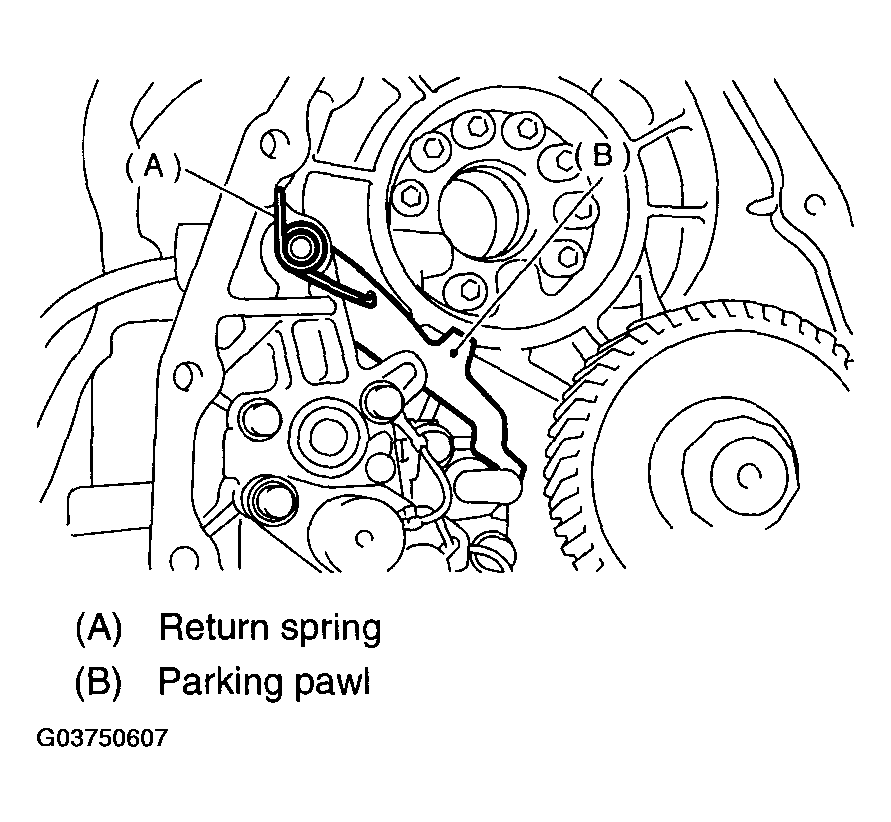

    Fig 1: Installing Parking Pawl, Shaft And Return Spring
    G03750607Courtesy of SUBARU OF AMERICA, INC.
  2. Install the reduction drive gear. < Ref. to , INSTALLATION . >
  3. Install the center differential carrier. (VTD model) < Ref. to , INSTALLATION . >
  4. Install the rear vehicle speed sensor and extension case. < Ref. to , INSTALLATION . >
  5. Install the transmission assembly to the vehicle. < Ref. to , INSTALLATION . >
