Transmission Control Module (TCM) I/O Signal: Schematic

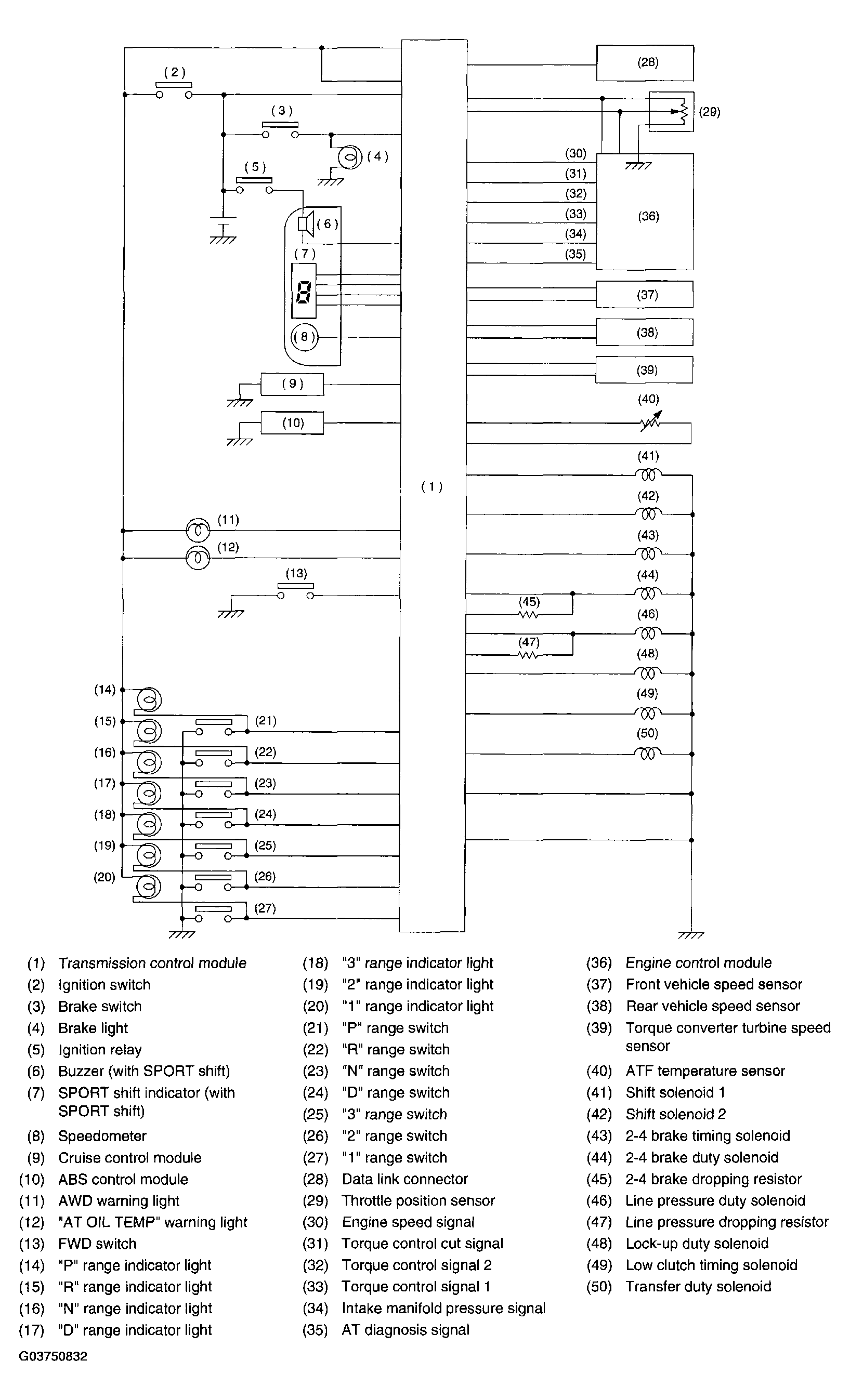

Fig 1: Identifying SCHEMATIC

G03750832

Courtesy of SUBARU OF AMERICA, INC.
