ATF Level

Make sure that ATF level is in the specification. < Ref. to , INSPECTION, AUTOMATIC TRANSMISSION FLUID . >

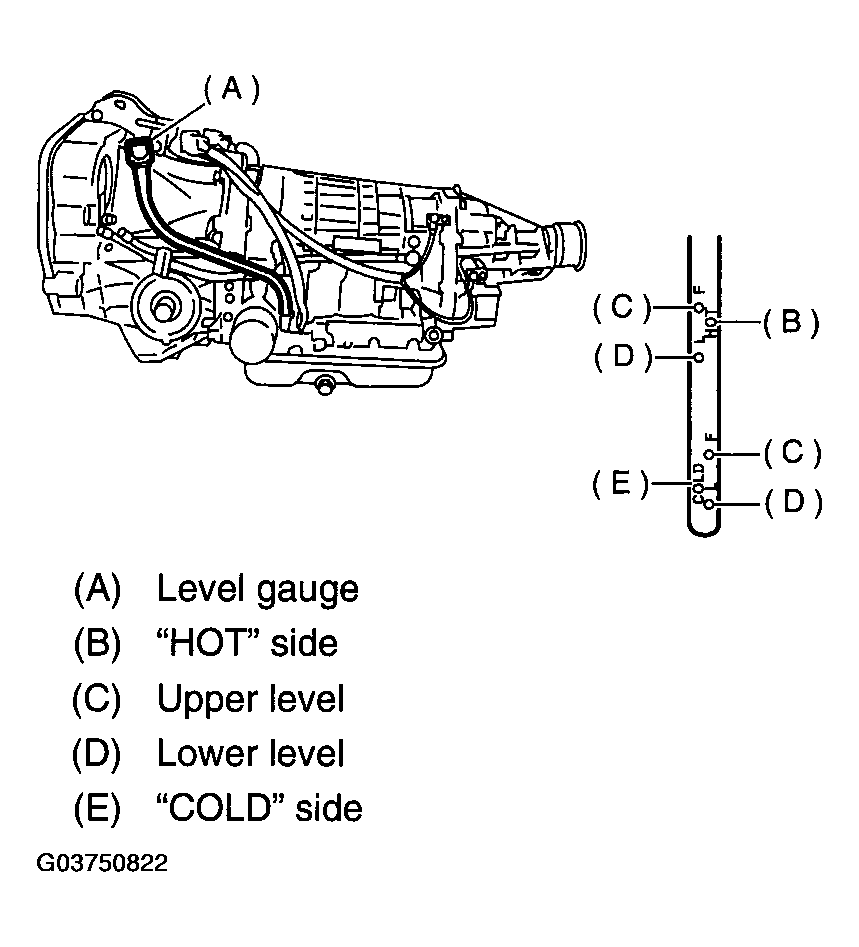

Fig 1: Measuring ATF Level

G03750822

Courtesy of SUBARU OF AMERICA, INC.
