Support Sub Frame Front: Removal

  1. Lift-up the vehicle, using support stand to support rear sub frame.
  2. Remove support sub frame front.

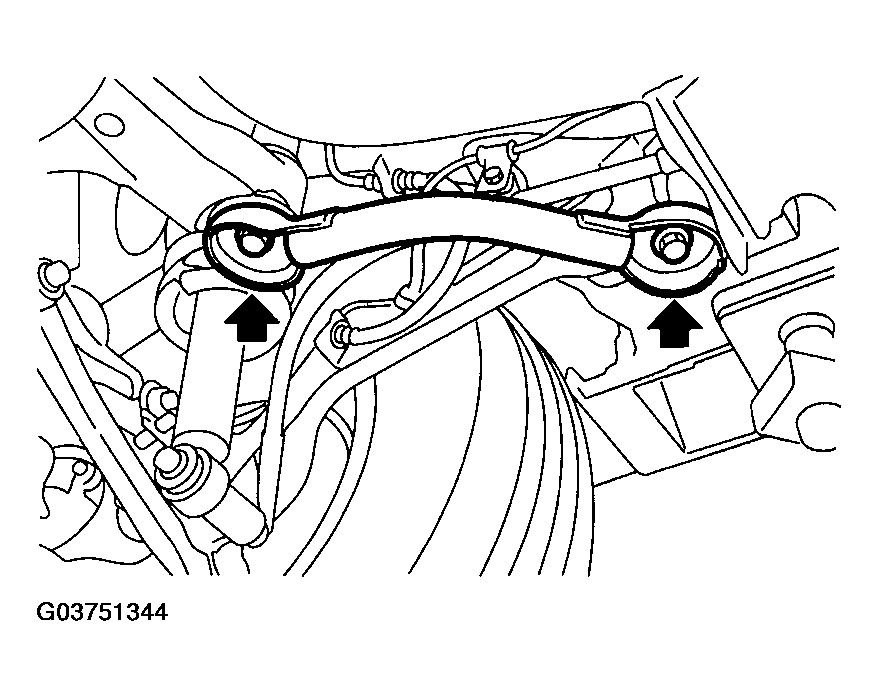

    Fig 1: Removing Support Sub Frame Front
    G03751344Courtesy of SUBARU OF AMERICA, INC.
