Link Upper: Installation
Install in the reverse order of removal, observing the following instructions.
CAUTION:

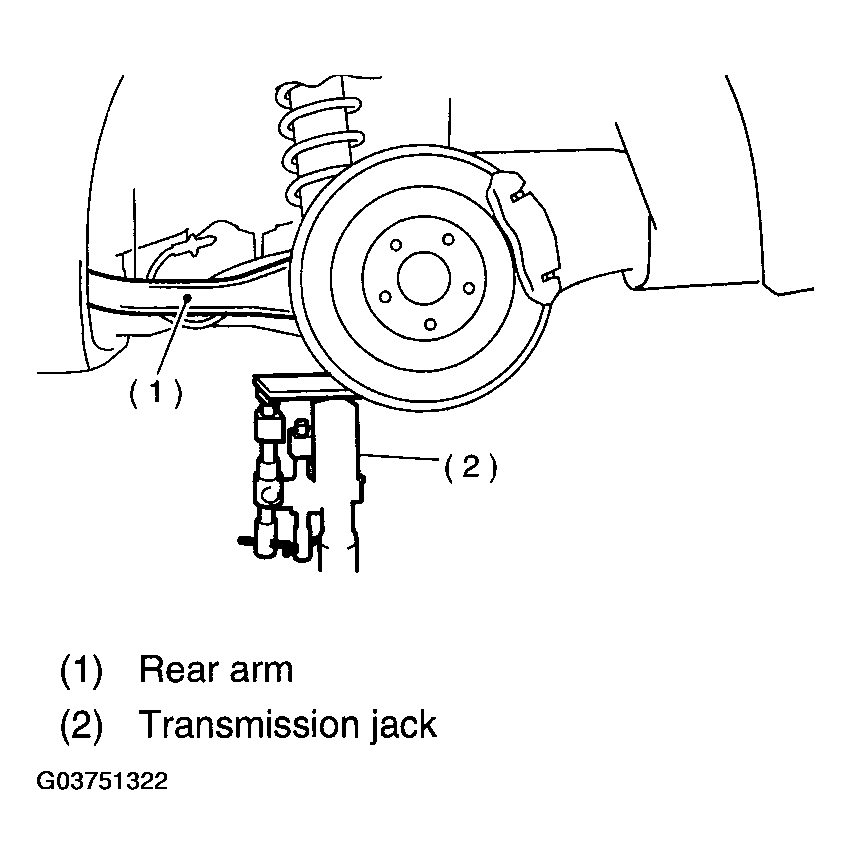

Using transmission jack, support rear arm horizontally, install link upper and tighten nuts to specified torque.
CAUTION:
- Tighten nut when installing adjusting bolt.
- Use a new self-locking nut.
NOTE:
Check wheel alignment and adjust if necessary.
Tightening torque:
120 N.m (12.2 kgf-m, 88 ft-lb)
