Tire Rotation: Inspection

  1. Replace the tire if the tread depth is less than 1.6 mm (0.063 in) or if wear indicators appear across the tire tread. (It is recommended that both right and left tires are replaced as a set.)
  2. Adjust the wheel alignment if abnormally uneven tire wear is found.
  3. Also, rotate the tires between the front and rear tires as illustrated, in order to ensure uniform tire wear.
    Fig 1: Identifying Tire Rotation Sequence
    G03747917Courtesy of SUBARU OF AMERICA, INC.

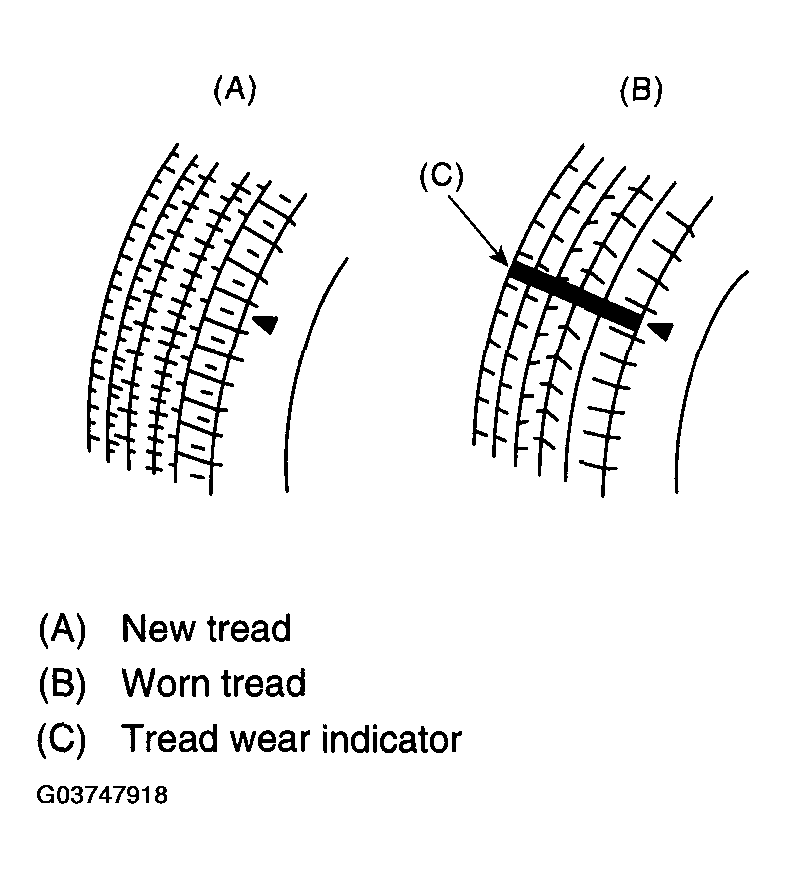

    Fig 2: Identifying Tread Wear Indicator
    G03747918Courtesy of SUBARU OF AMERICA, INC.
