Section 67 (Entertainment): Woofer: Removal

WARNING: This page is about a different car, the 2005 Subaru Outback and 2005 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the hooks (A) and detach woofer cover. < Ref. to REMOVAL , Rear Quarter Trim. >

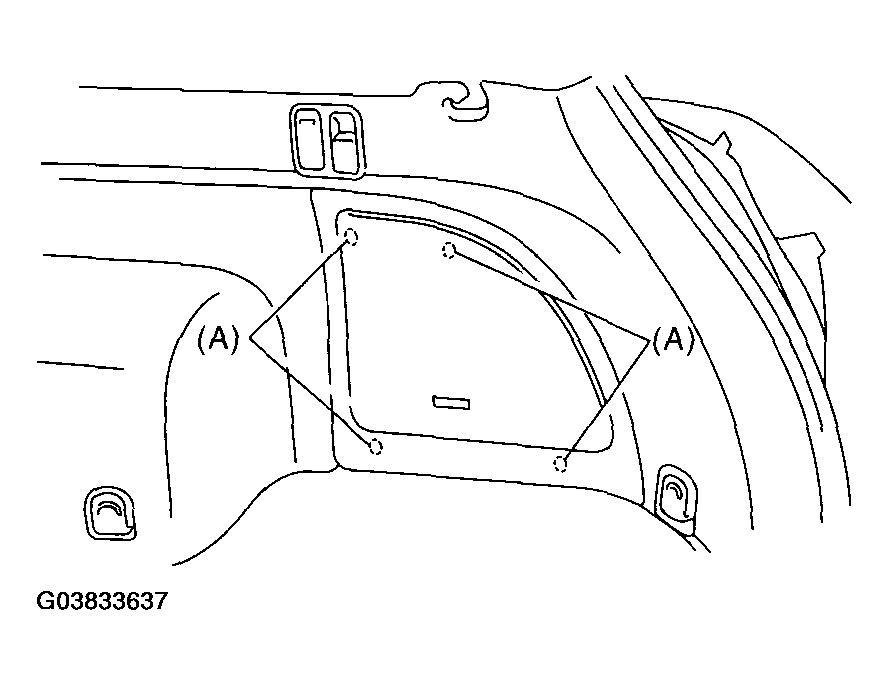

    Fig 1: Removing Hooks And Detach Woofer Cover
    G03833637Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the quarter lower trim. < Ref. to REMOVAL , Rear Quarter Trim. >
  4. Remove the woofer bracket mounting clips (A) and screws, and then remove the woofer bracket.

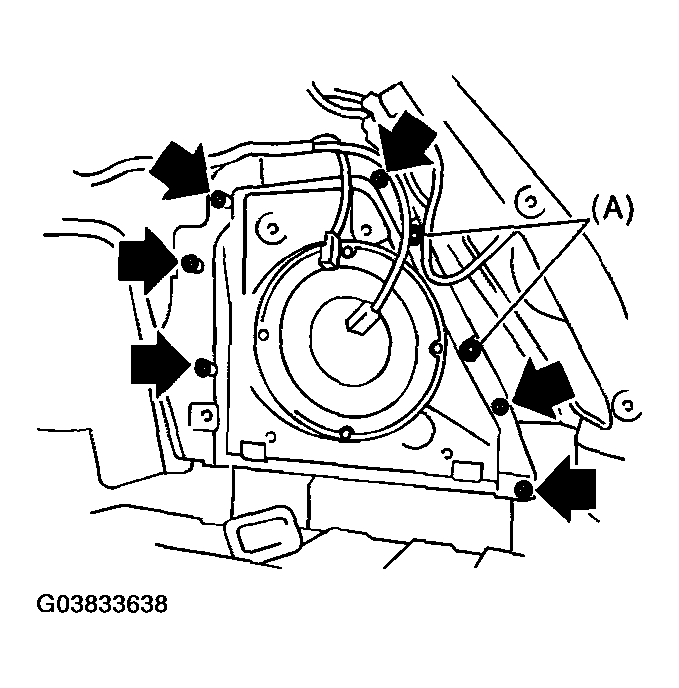

    Fig 2: Removing Woofer Bracket Mounting Clips And Screws
    G03833638Courtesy of SUBARU OF AMERICA, INC.
  5. Disconnect the harness connector and detach woofer.
