Section 67 (Entertainment): Antenna: Repair

WARNING: This page is about a different car, the 2005 Subaru Outback and 2005 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean the antenna wire and surrounding area with a cloth dampened by alcohol.
  2. Paste a thin masking film on the glass along broken wire.
  3. Apply conductive silver composition (DUPONT No. 4817) on the broken portion with a drawing pen.

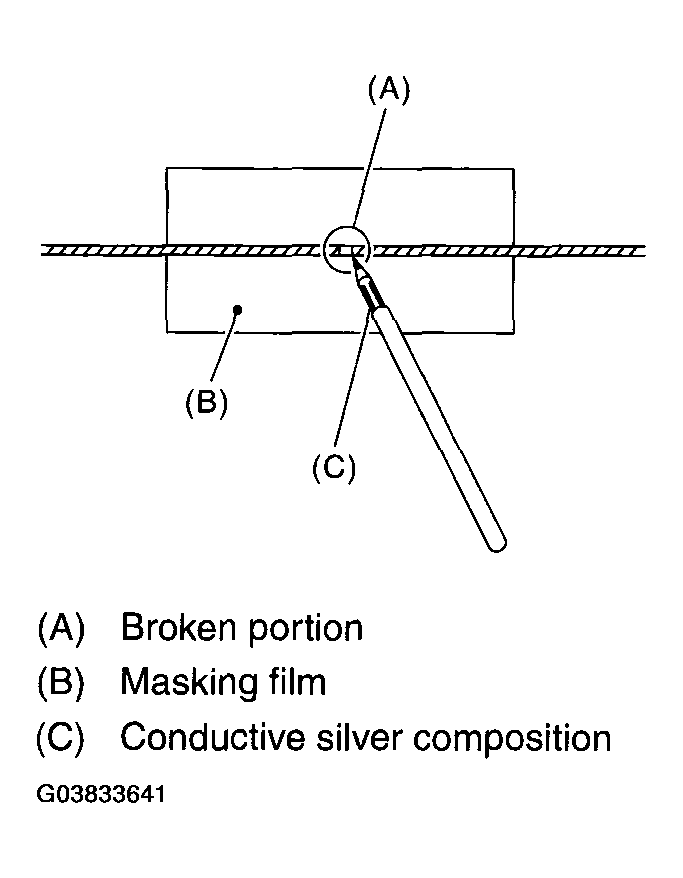

    Fig 1: Applying Conductive Silver Composition On Broken Portion With Drawing Pen
    G03833641Courtesy of SUBARU OF AMERICA, INC.
  4. Dry out the deposited portion.
  5. After repair has been completed, measure the resistance in repaired wire.
