Transmitter (Tire Pressure Sensor)

WARNING: This page is about a different car, the 2005 Subaru Outback and 2005 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the transmitter to the wheel by aligning it with valve hole, and then tighten with nuts.

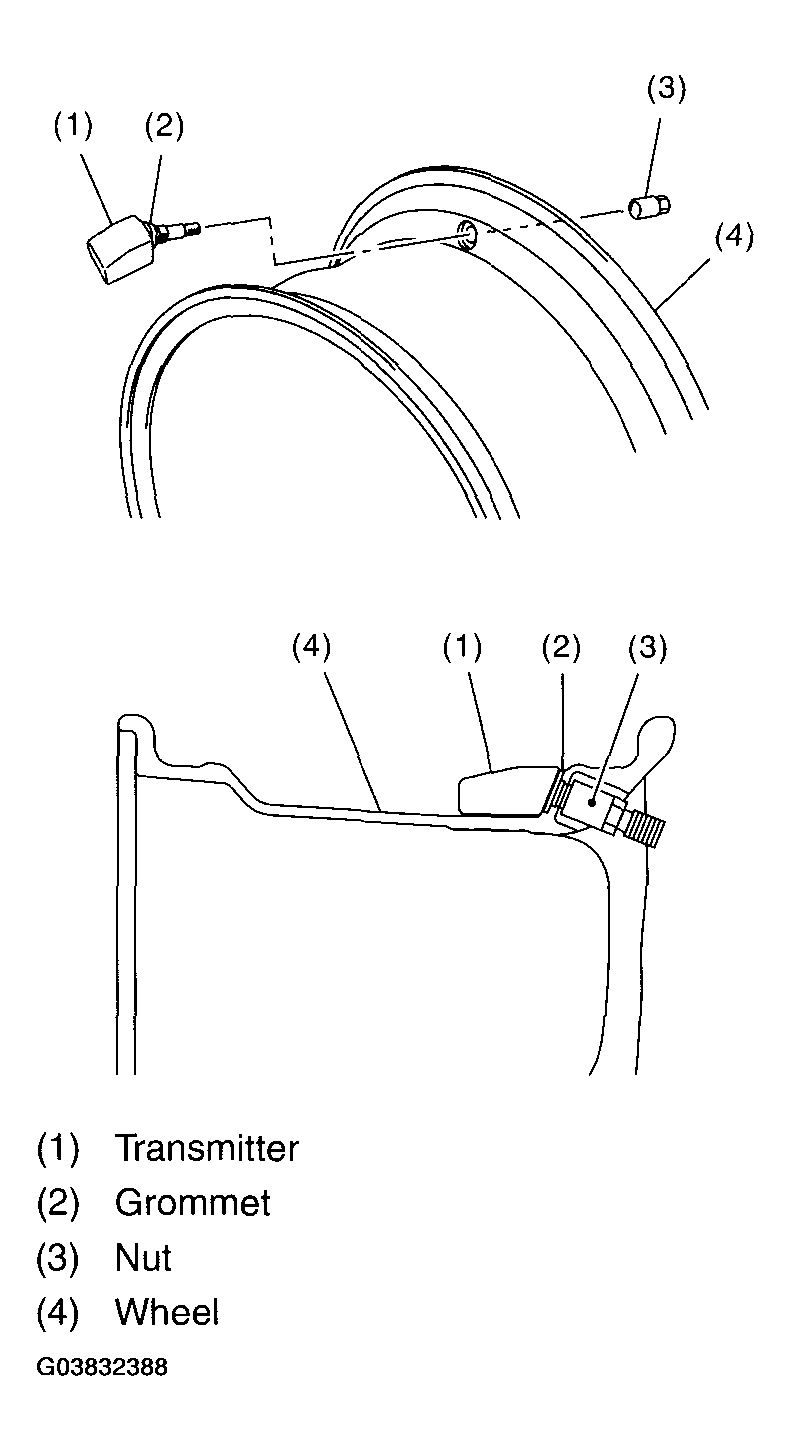

    Fig 1: Installing Transmitter To Wheel
    G03832388Courtesy of SUBARU OF AMERICA, INC.

    Tightening torque: 7.5 N.m (0.76 kgf-m, 5.53 ft-lb)

  2. Install the tires to wheels.
    CAUTION:
    • Use a tire changer when installing tire to wheel.
    • To prevent breaking of transmitter, set the tire changer boom in the position as shown in Fig 2 .

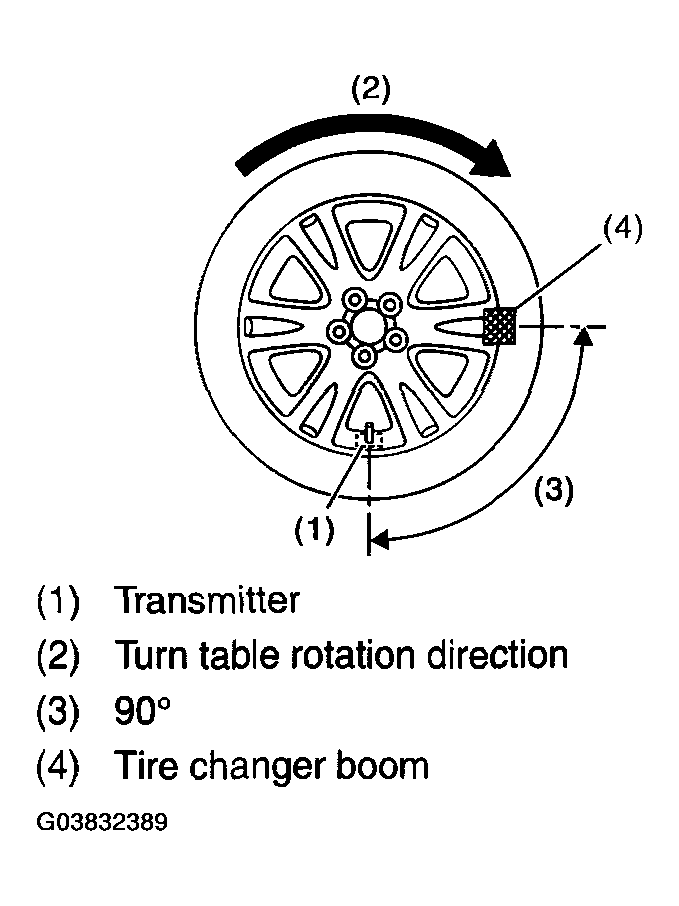

    Fig 2: Setting Tire Changer Boom In Position
    G03832389Courtesy of SUBARU OF AMERICA, INC.
  3. Install the wheels to vehicle. < Ref. to , INSTALLATION , Steel Wheel. >
  4. Register the transmitter ID to tire pressure monitoring control module. < Ref. to REGISTER TRANSMITTER (ID) , OPERATION, Subaru Select Monitor. >
