Special Tool

WARNING: This page is about a different car, the 2005 Subaru Outback and 2005 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

PREPARATION TOOL CHART

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Fig 1	498497100	CRANKSHAFT STOPPER	Used for stopping rotation of flywheel when loosening/tightening bolt, etc.
Fig 2	499747100	CLUTCH DISC GUIDE	Used for installing clutch disc to flywheel.
Fig 3	499057000	TORX® PLUS	Used for removing flywheel (dual mass flywheel type).

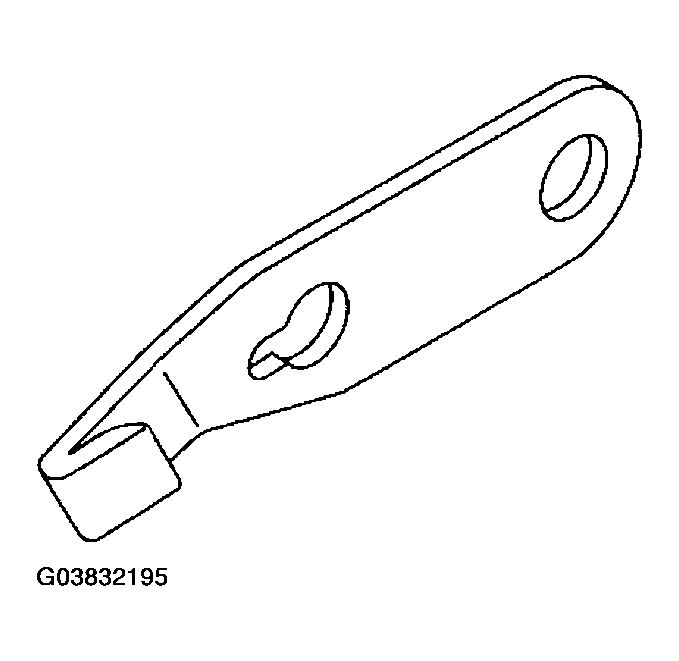

Fig 1: Identifying Special Tool ST-498497100

Courtesy of SUBARU OF AMERICA, INC.

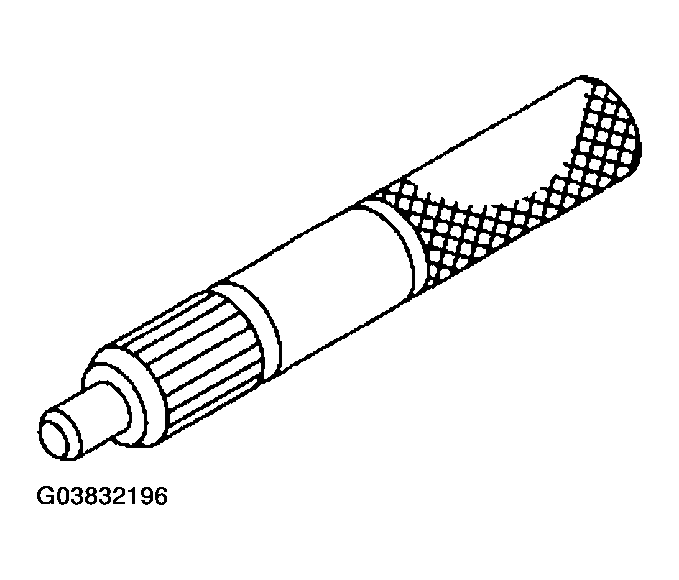

Fig 2: Identifying Special Tool ST-499747100

Courtesy of SUBARU OF AMERICA, INC.

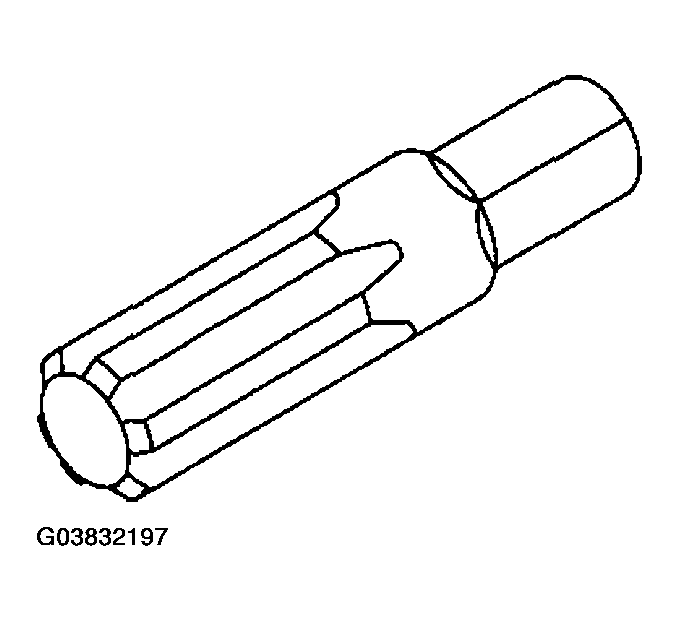

Fig 3: Identifying Special Tool ST-499057000

Courtesy of SUBARU OF AMERICA, INC.
