Starting/Charging Systems (H4SO): Starter: Removal

Disconnect ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove air cleaner case. (Non-Turbo model)
< Ref. to REMOVAL , Air Cleaner Case. >
Remove intercooler. (Turbo model)
< Ref. to REMOVAL , Intercooler. >
Remove air cleaner case stay.
- MT vehicles

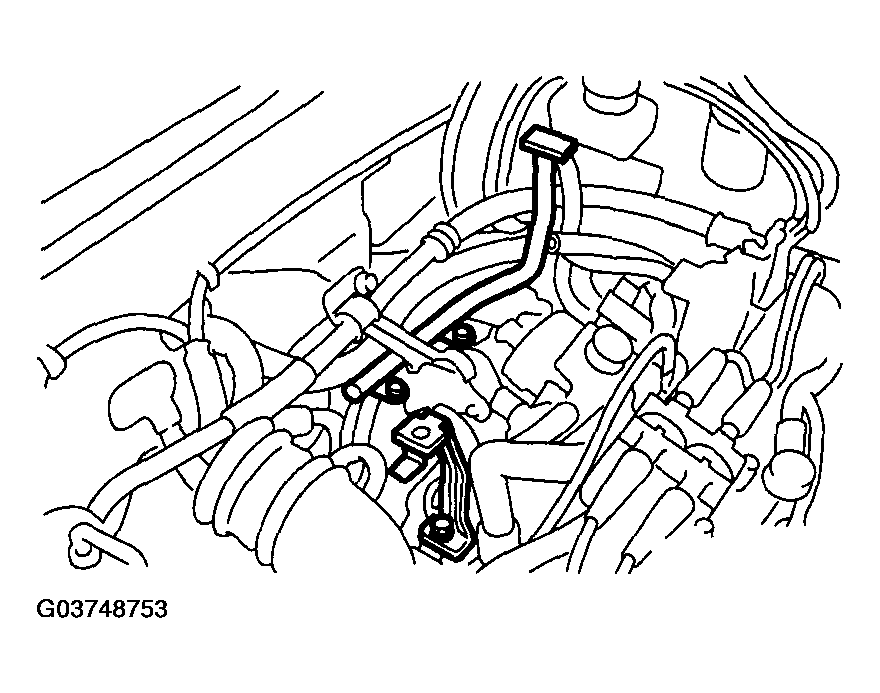

  Fig 2: Removing Air Cleaner Case Stay (MT)
  Courtesy of SUBARU OF AMERICA, INC.
- AT vehicles

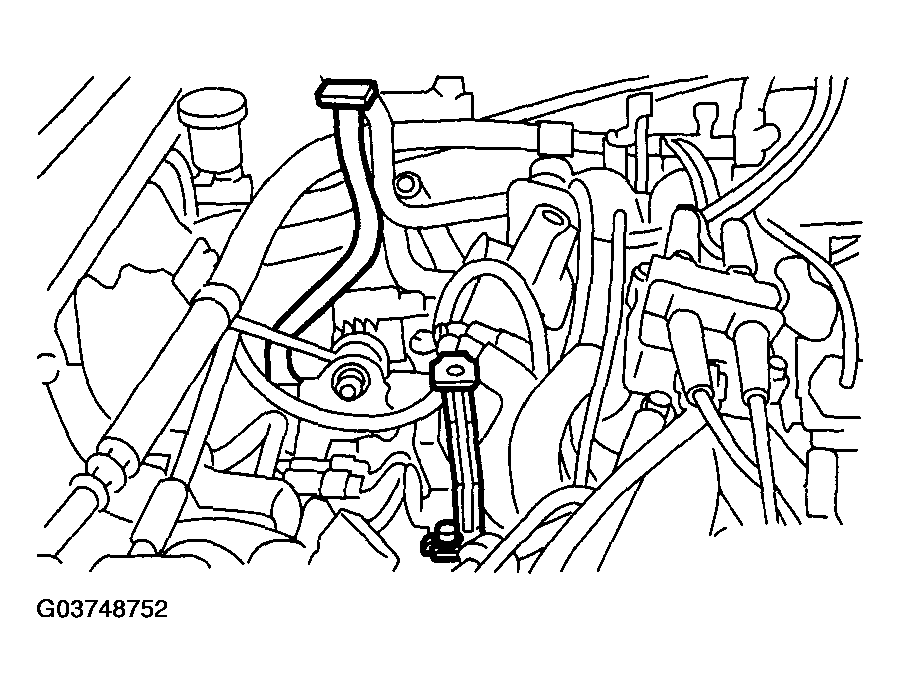

  Fig 3: Removing Air Cleaner Case Stay (AT)
  Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector and terminal from starter.

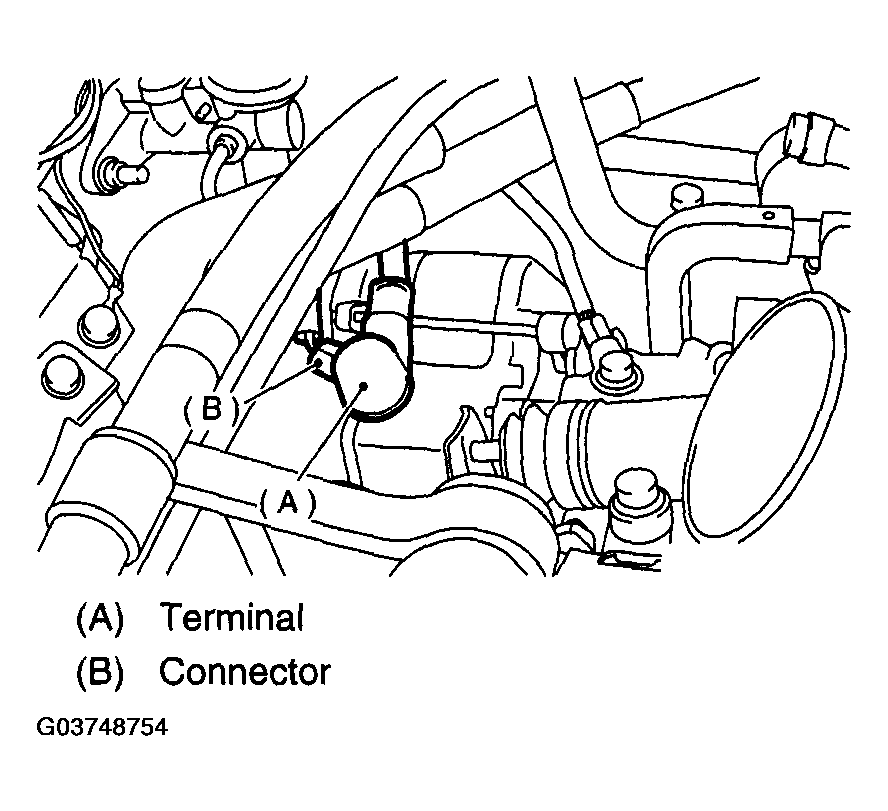

Fig 4: Disconnecting Connector And Terminal From Starter
Courtesy of SUBARU OF AMERICA, INC.
Remove starter from transmission.
