Propeller Shaft: Installation

Insert sleeve yoke into transmission and attach center bearing to vehicle body.
Tightening torque:

52 N.m (5.3 kgf-m, 38.3 ft-lb)

Fig 1: Attaching Center Bearing To Vehicle Body
Courtesy of SUBARU OF AMERICA, INC.
Align matching marks and connect flange yoke and rear differential.
Tightening torque:

31 N.m (3.2 kgf-m, 23.1 ft-lb)

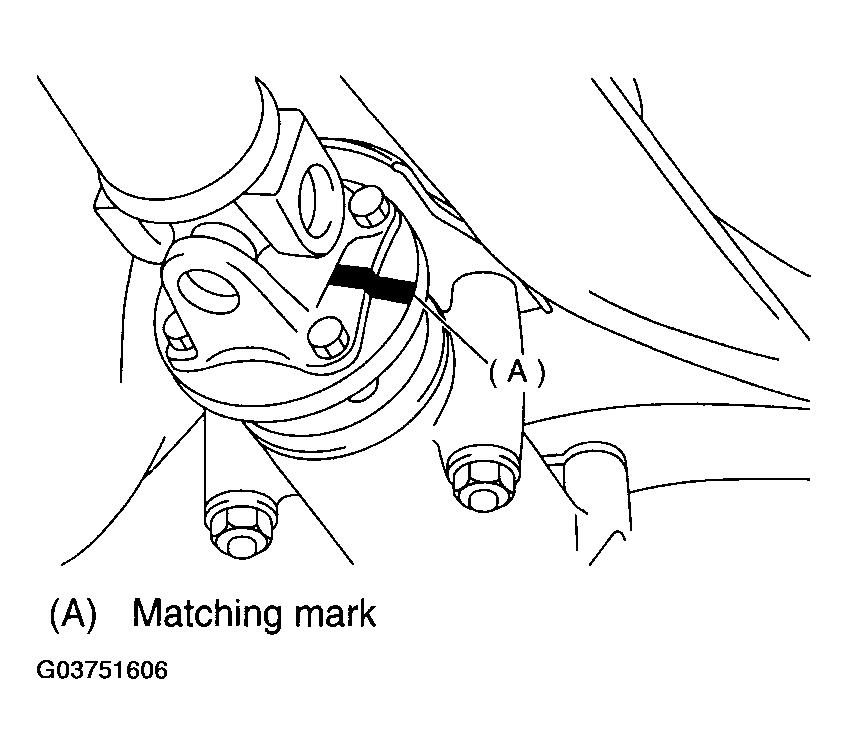

Fig 2: Aligning Matching Marks And Connecting Flange Yoke And Rear Differential
Courtesy of SUBARU OF AMERICA, INC.
Install heat shield cover.
Install center exhaust pipes.
Install rear exhaust pipe and muffler.
