Conditions For Abs Sequence Control

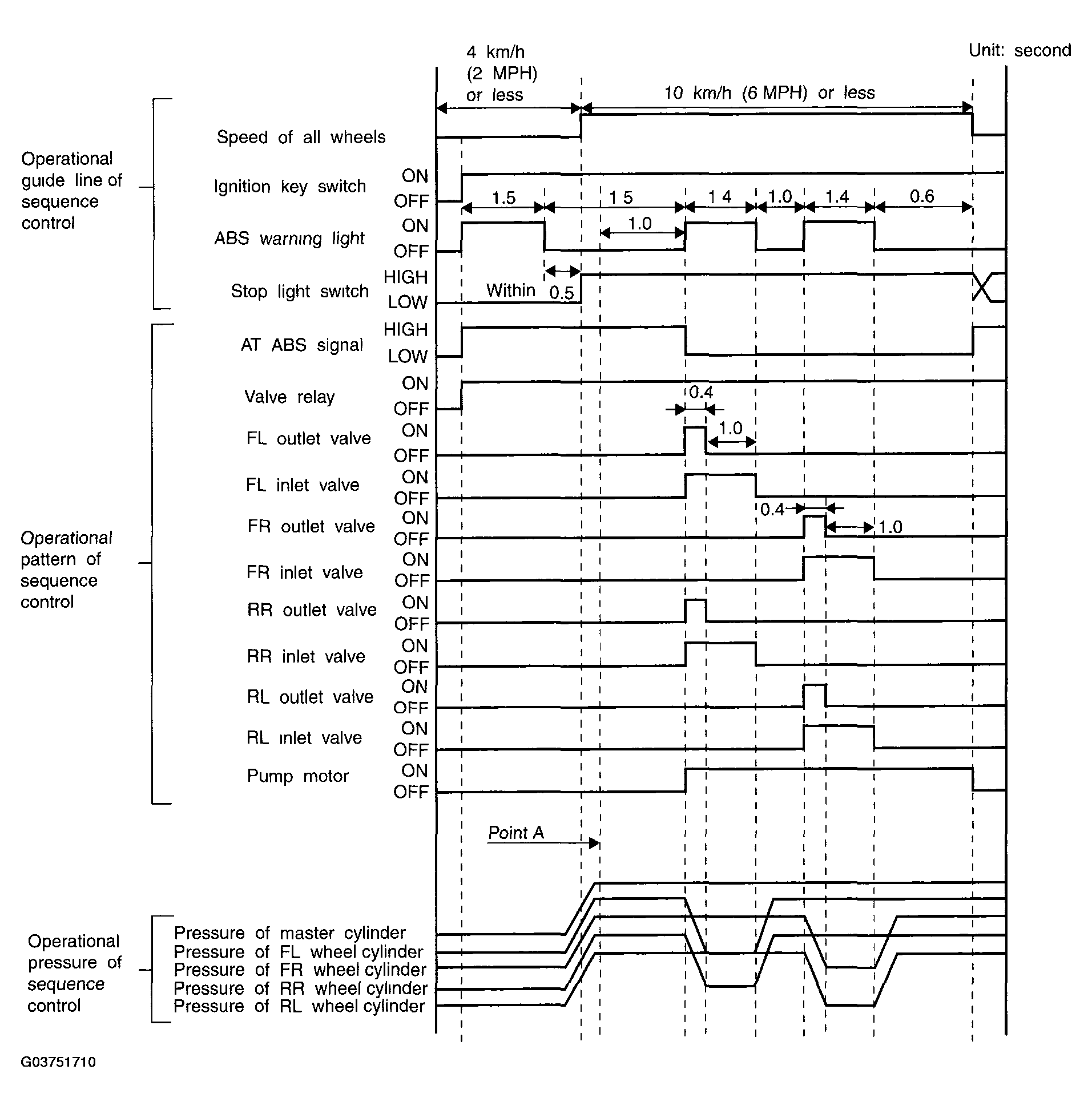

Fig 1: ABS Sequence Control Conditions Chart
G03751710Courtesy of SUBARU OF AMERICA, INC.
NOTE:
  • When select monitor is used, control operation starts at point A.
  • HIGH means high voltage.
  • LOW means low voltage.
