Switch Back Gate Handle: Removal

  1. Remove switch back gate. < Ref. to REMOVAL , Switch Back Gate . >
  2. Remove switch back gate inner cover.

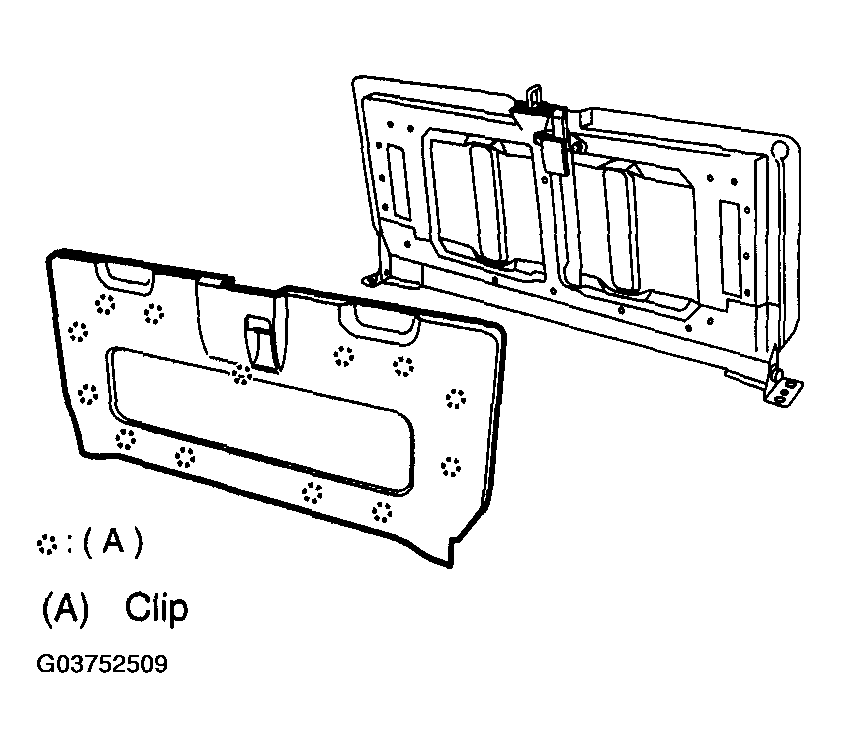

    Fig 1: Removing Switch Back Gate Inner Cover
    G03752509Courtesy of SUBARU OF AMERICA, INC.
  3. Remove bolts and detach switch back gate handle.
    Fig 2: Removing Switch Back Gate Handle
    G03752510Courtesy of SUBARU OF AMERICA, INC.
