Automatic Transmission - Mechanism & Function
>>
Transmission Control Module (TCM)
>>
Schematic Diagrams
>>
Turbo Models
Turbo Models

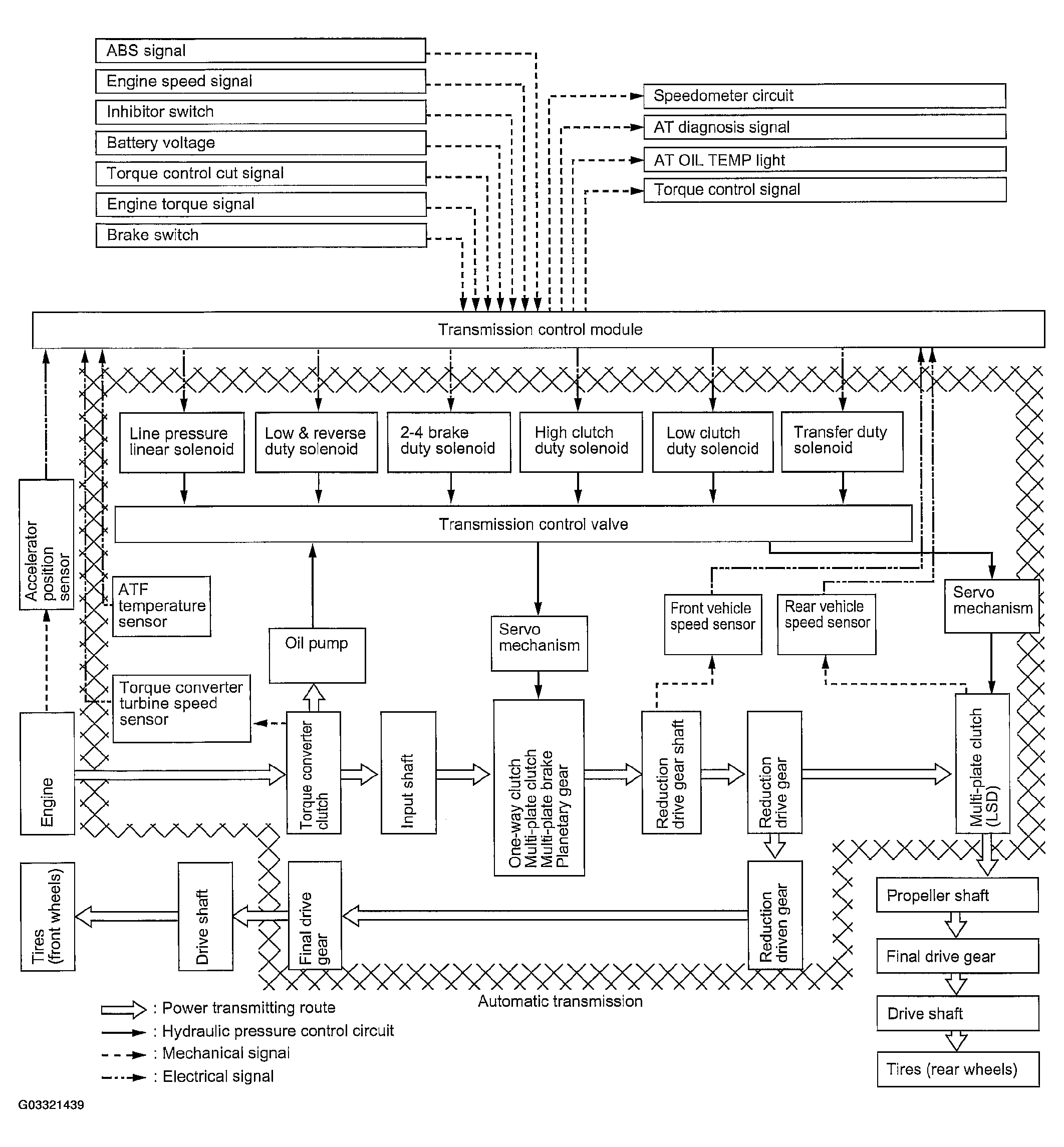

Fig 1: Turbo Models Schematic Diagrams
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
