Automatic Transmission - Mechanism & Function
>>
Transmission Control Module (TCM)
>>
Schematic Diagrams
>>
Non-Turbo Models
Non-Turbo Models

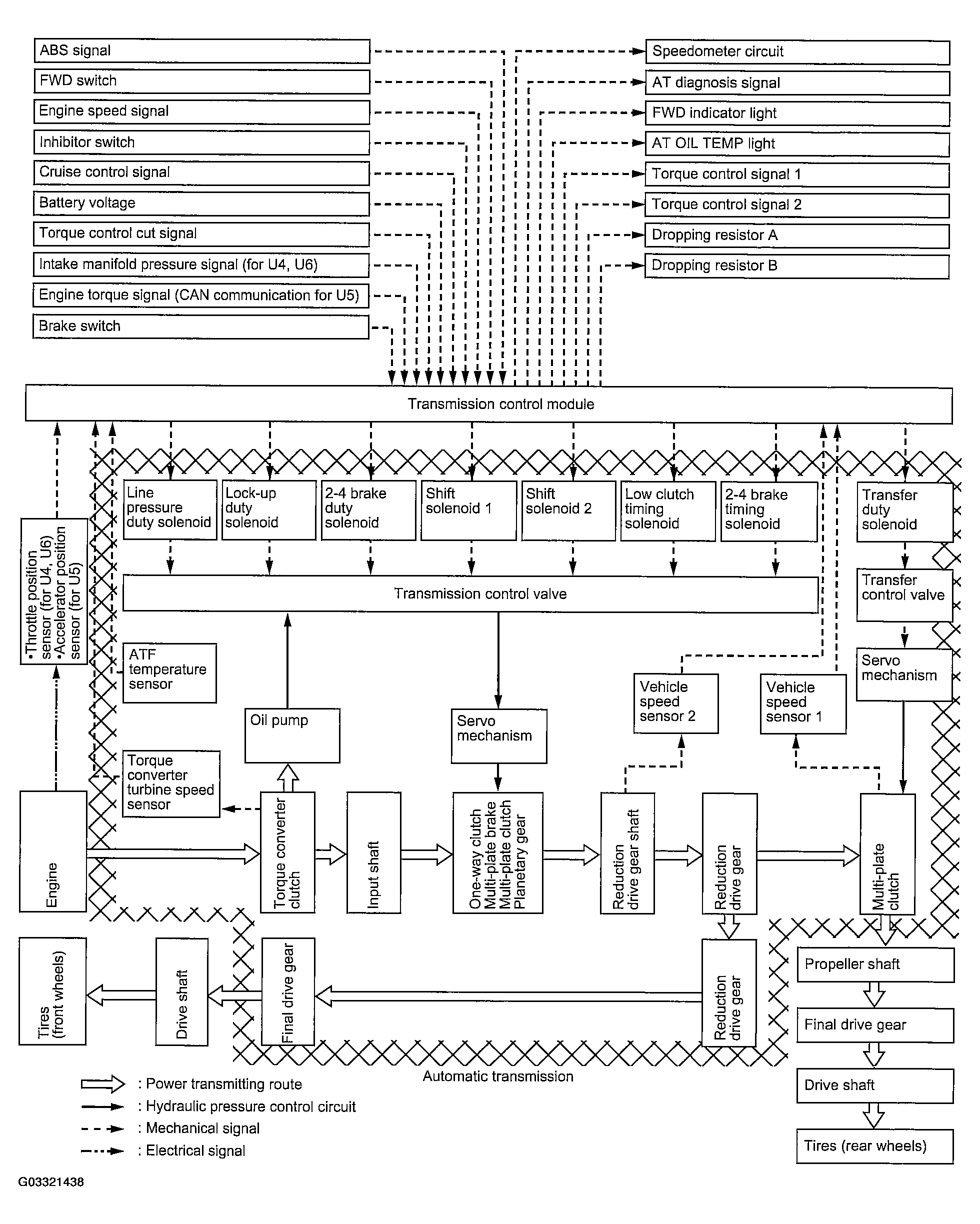

Fig 1: Non-Turbo Models Schematic Diagrams
Courtesy of SUBARU OF AMERICA, INC.
