ATF Temperature Sensor

This sensor is mounted on the hydraulic control valve body of the transmission. It detects the temperature of ATF and outputs it as an electrical resistance signal. The output characteristics of the sensor are shown below.

• Non-turbo models

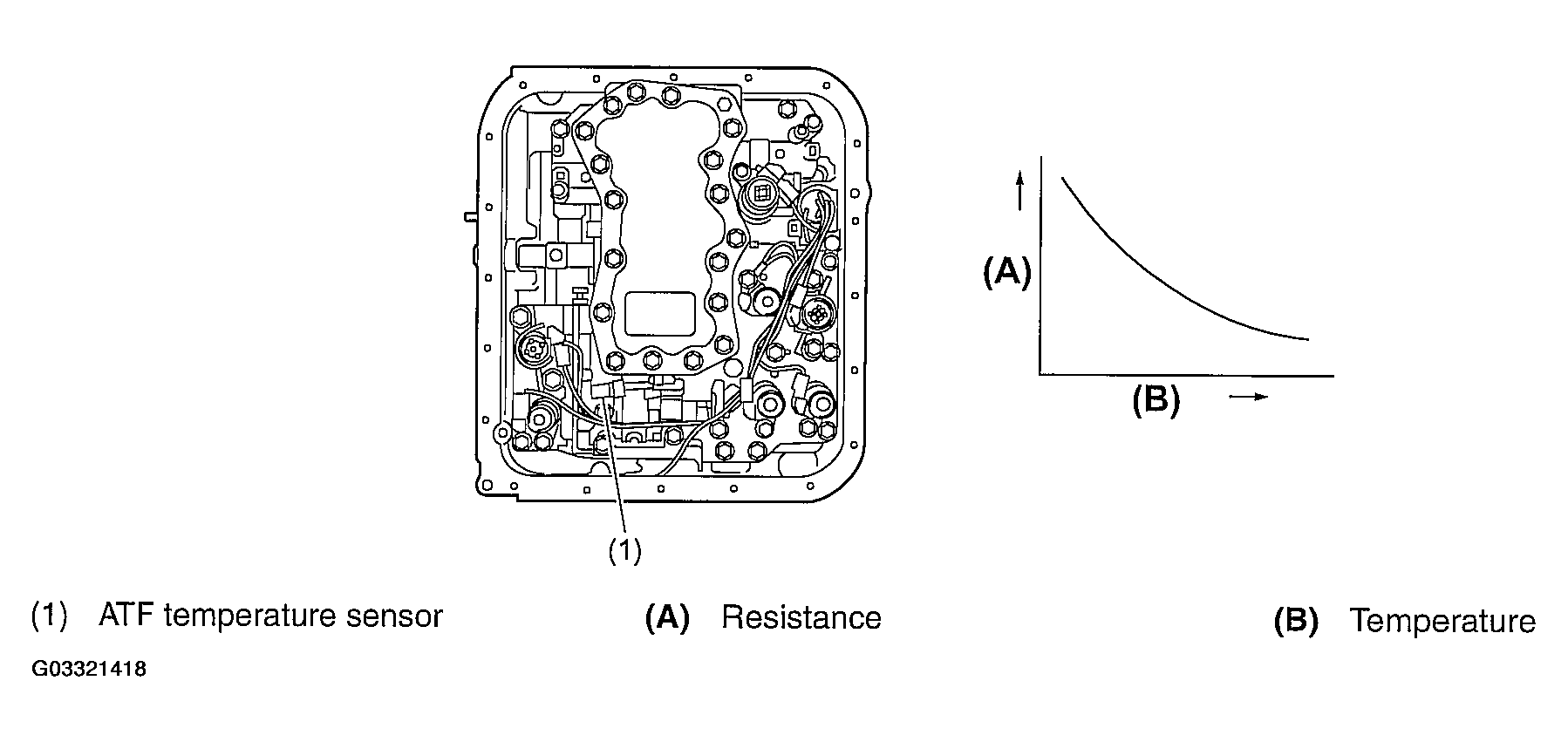

  Fig 1: Identifying ATF Temperature Sensor (Non-Turbo Models)

  Courtesy of SUBARU OF AMERICA, INC.
• Turbo models

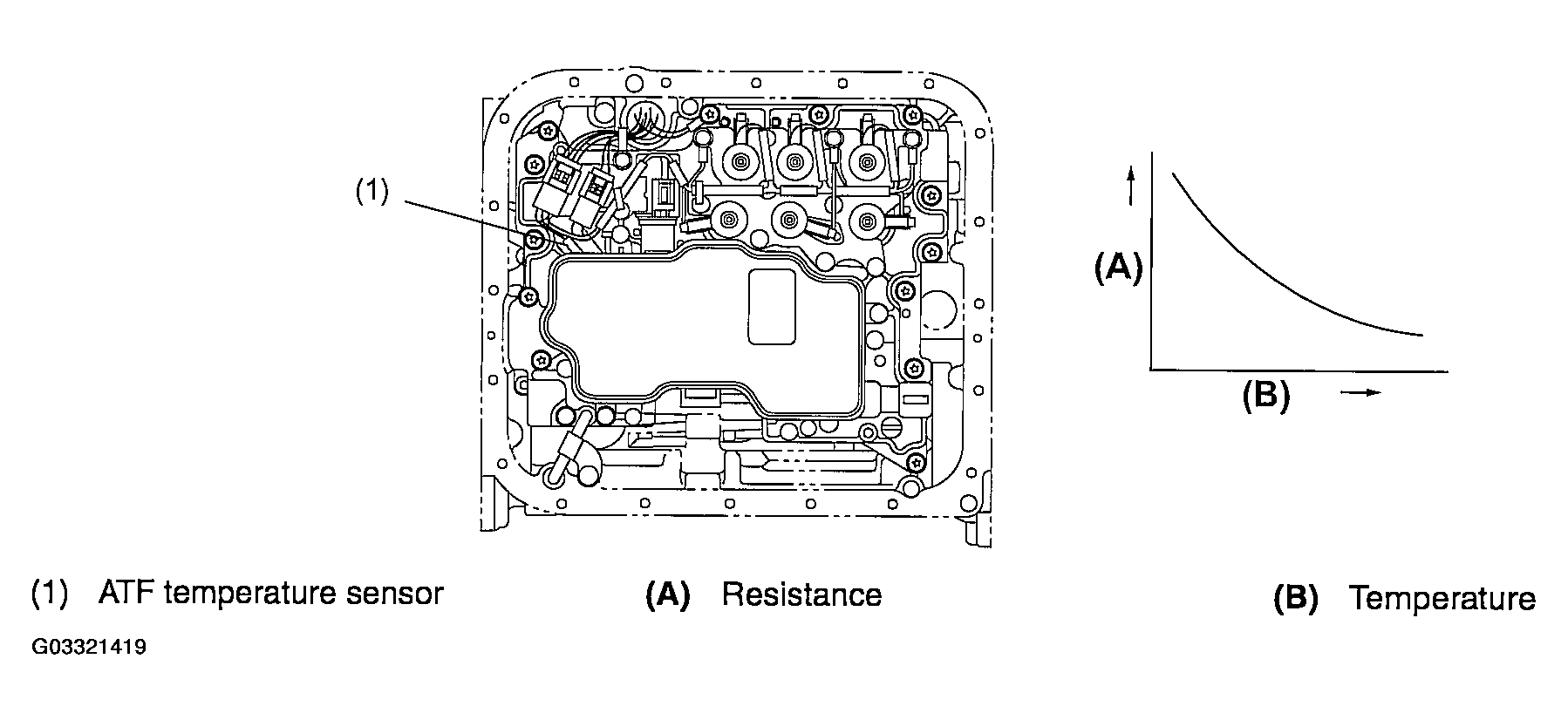

  Fig 2: Identifying ATF Temperature Sensor (Turbo Models)

  Courtesy of SUBARU OF AMERICA, INC.
