Engine Grounding

Make sure the engine grounding terminal is properly connected to the engine.

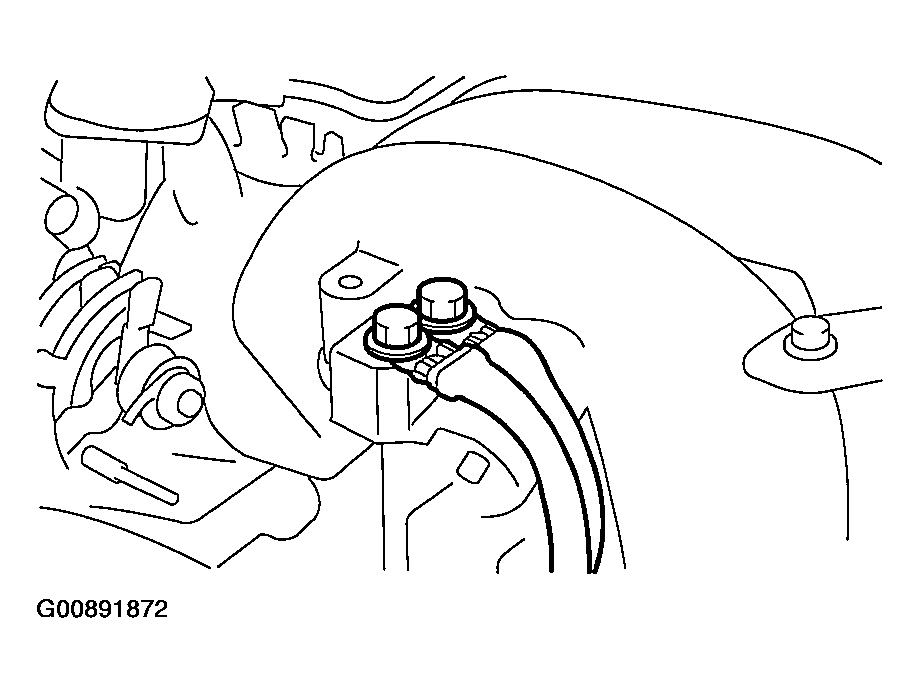

Fig 1: Identifying Engine Grounding Terminal Connected To Engine

G00891872

Courtesy of SUBARU OF AMERICA, INC.
