Compulsory Valve Operation Check Mode: Operation

  1. Prepare Subaru Select Monitor kit. Refer to PREPARATION TOOL , General Description.

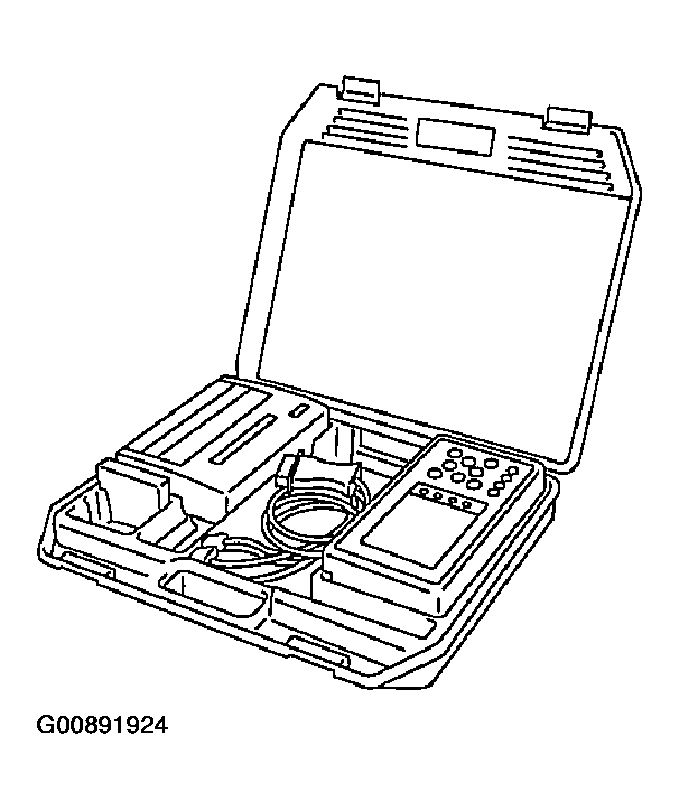

    Fig 1: Identifying Subaru Select Monitor Kit
    G00891924Courtesy of SUBARU OF AMERICA, INC.
  2. Connect diagnosis cable to Subaru Select Monitor.
  3. Insert cartridge into Subaru Select Monitor.

    Refer to PREPARATION TOOL , General Description.

    Fig 2: Inserting Cartridge Into Subaru Select Monitor
    G00891925Courtesy of SUBARU OF AMERICA, INC.
  4. Connect test mode connector at the lower portion of instrument panel (on the driver's side).
    Fig 3: Connecting Test Mode Connector At Lower Portion Of Instrument Panel (On Driver's Side)
    G00891926Courtesy of SUBARU OF AMERICA, INC.
  5. Connect Subaru Select Monitor to data link connector.
    1. Data link connector is located in the lower portion of the instrument panel (on the driver's side).
      Fig 4: Identifying Data Link Connector
      G00891927Courtesy of SUBARU OF AMERICA, INC.
    2. Connect diagnosis cable to data link connector.
    CAUTION: Do not connect scan tools except for Subaru Select Monitor and OBD-II general scan tool.
  6. Turn ignition switch to ON (engine OFF) and Subaru Select Monitor switch to ON.
    Fig 5: Identifying Power Switch
    G00891928Courtesy of SUBARU OF AMERICA, INC.
  7. On the << Main Menu >> display screen, select the {2. Each System Check} and press the [YES] key.
  8. On the << System Selection Menu >> display screen, select the {Engine Control System} and press the [YES] key.
  9. Press the [YES] key after displayed the information of engine type.
  10. On the << Engine Diagnosis >> display screen, select the {System Operation Check Mode} and press the [YES] key.
  11. On the << System Operation Check Mode >> display screen, select the {Actuator ON/OFF Operation} and press the [YES] key.
  12. Select the desired compulsory actuator on the << Actuator ON/OFF Operation >> display screen and press the [YES] key.
  13. Pressing the [NO] key completes the compulsory operation check mode. The display will then return to the << Actuator ON/OFF Operation >> screen.

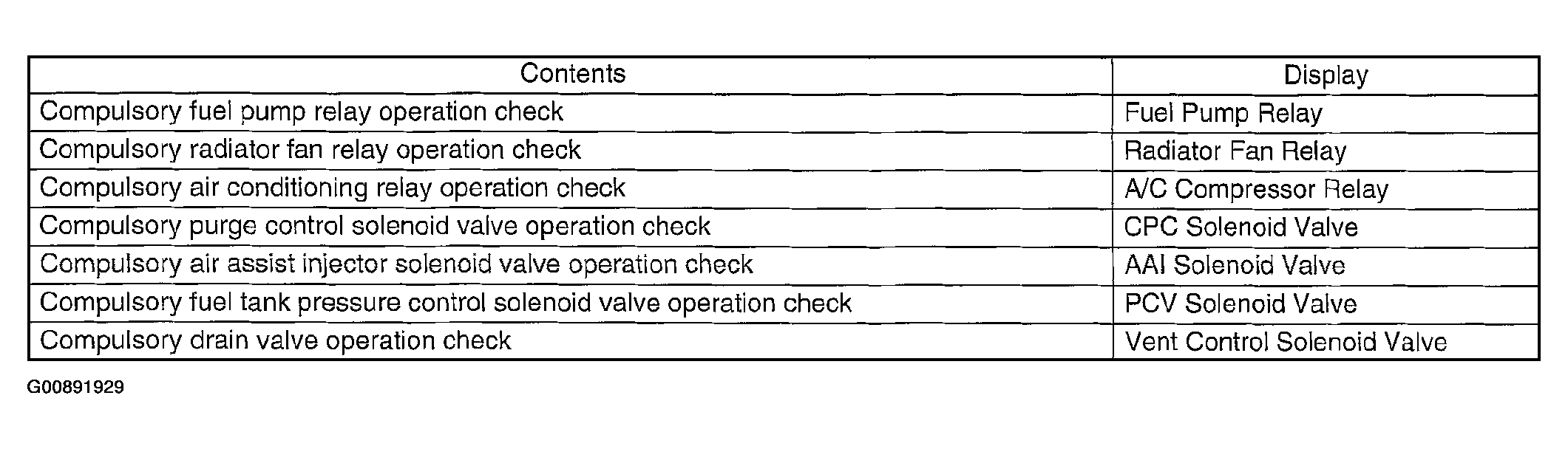

Fig 6: Contents Display Chart
G00891929Courtesy of SUBARU OF AMERICA, INC.
NOTE:
  • The following parts will be displayed but not functional because they are not installed on the vehicle.
Fig 7: Display Chart
G00891930Courtesy of SUBARU OF AMERICA, INC.
