Ignition (H6DO): General Description: Component

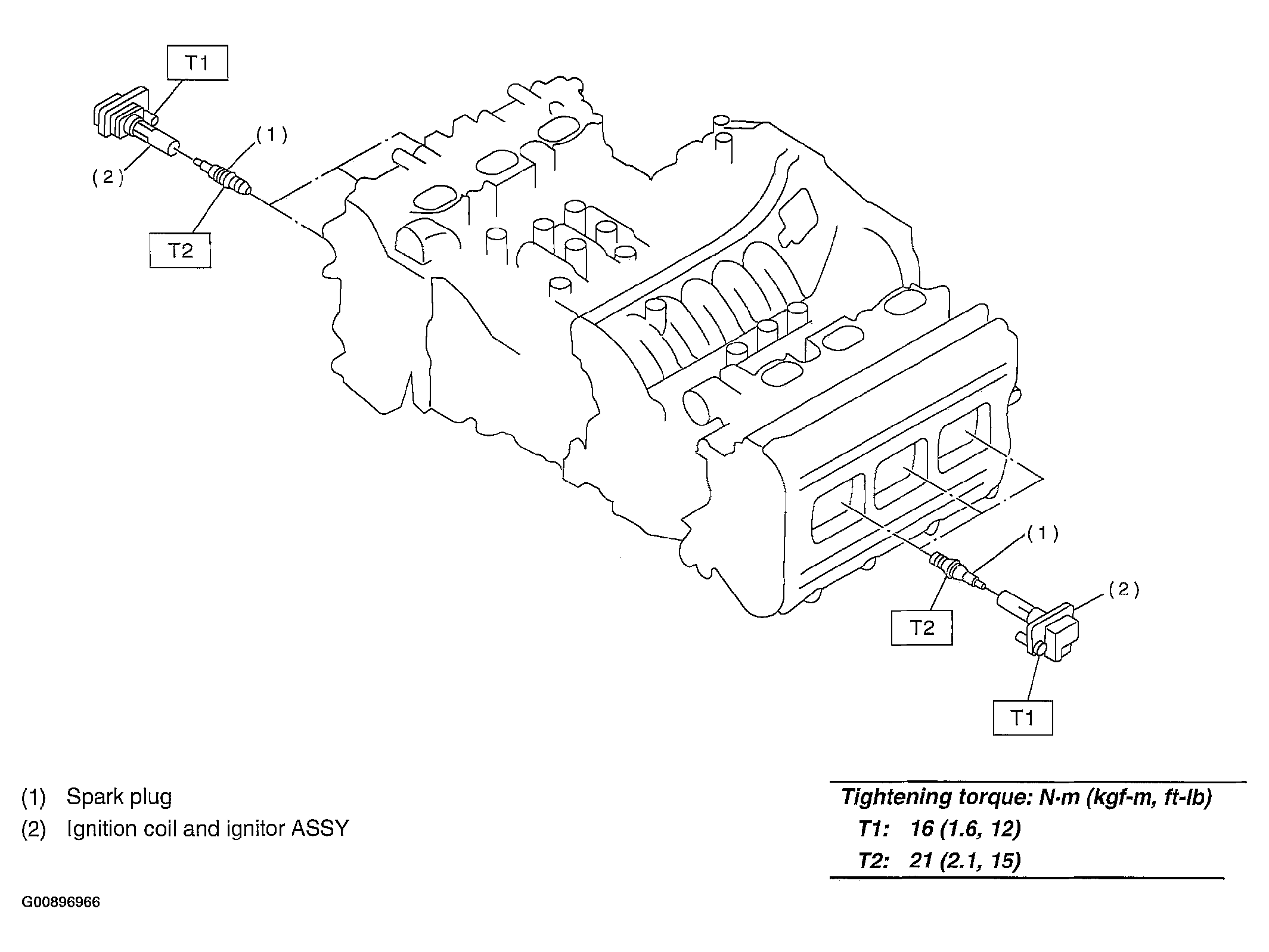

Fig 1: Engine-Ignition System Replacement Components With Torque Specifications

G00896966

Courtesy of SUBARU OF AMERICA, INC.
