Transfer Driven Gear: Disassembly

WARNING: This page is about a different variant/trim than selected.

Using the ST, remove the roller bearing (extension case side).
ST 498077000 REMOVER

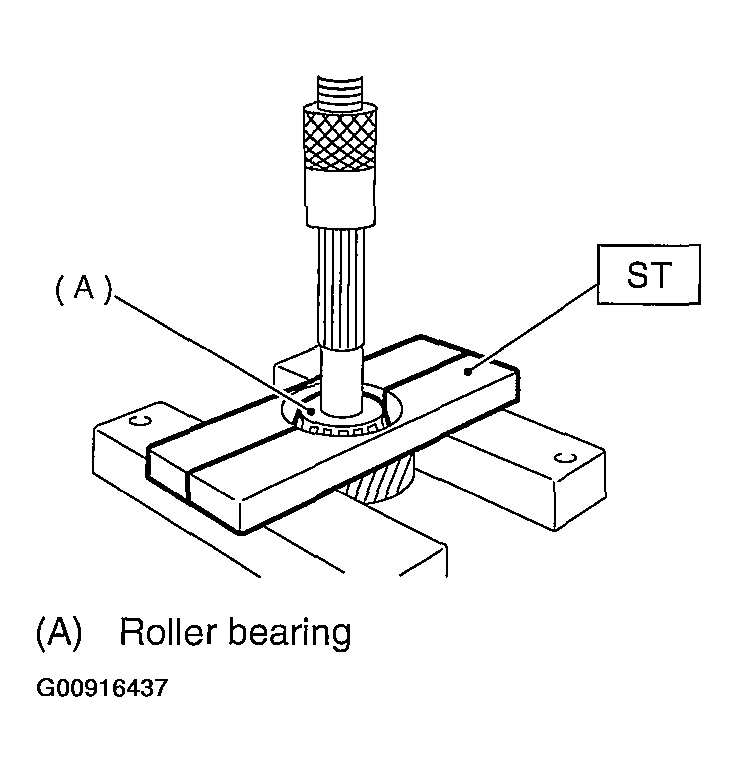

Fig 1: Removing Roller Bearing (Extension Case Side)
Courtesy of SUBARU OF AMERICA, INC.
Using the ST1 and ST2, remove the roller bearing (transfer case side).
ST1 498077000 REMOVER

ST2 899864100 REMOVER

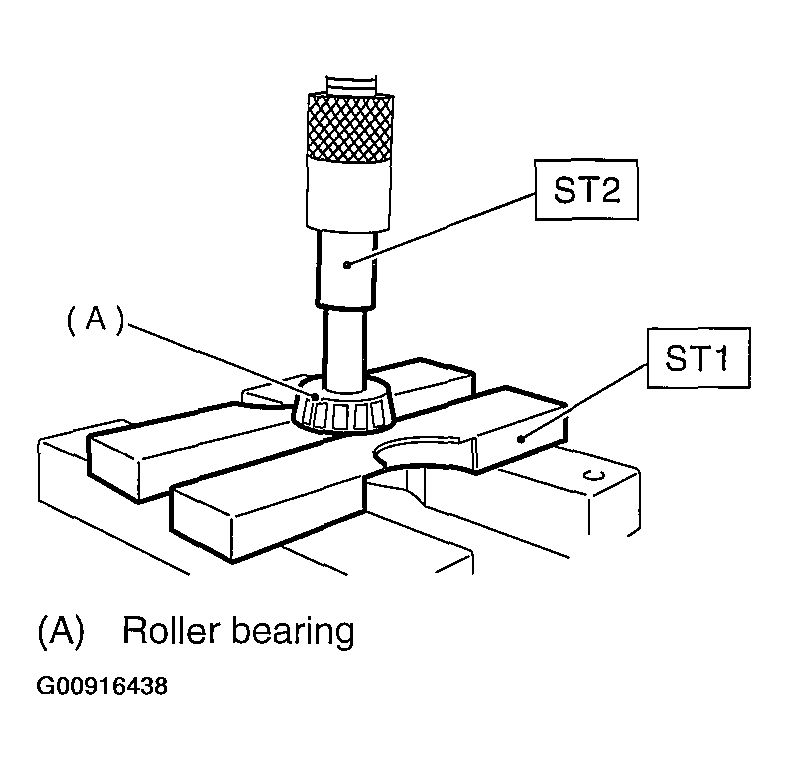

Fig 2: Removing Roller Bearing (Transfer Case Side)
Courtesy of SUBARU OF AMERICA, INC.
