Transfer Driven Gear: Assembly

WARNING: This page is about a different variant/trim than selected.

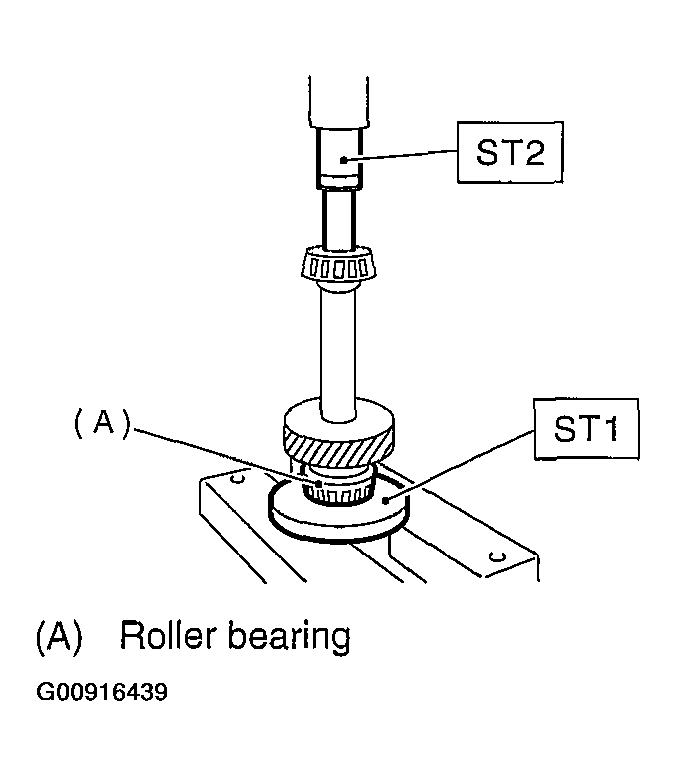

Using the ST, install the roller bearing (extension case side).
ST1 398177700 INSTALLER

ST2 899864100 REMOVER

NOTE: Do not apply pressure in excess of 10 kN (1 ton, 1.1 US ton, 1.0 Imp ton)

Fig 1: Installing Roller Bearing (Extension Case Side)
Courtesy of SUBARU OF AMERICA, INC.

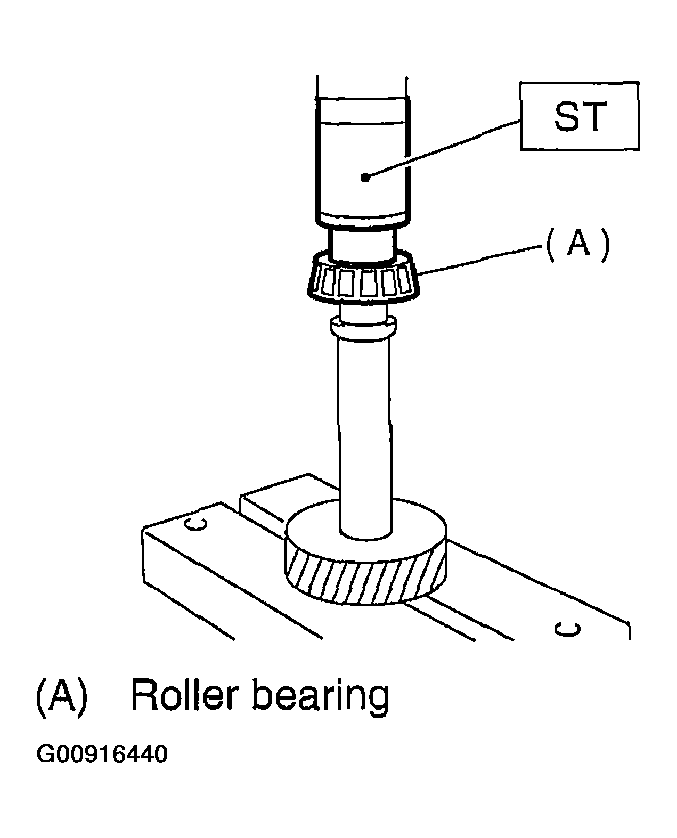

Using the ST, install the roller bearing (transfer case side).
ST 499757002 INSTALLER

NOTE: Do not apply pressure in excess of 10 kN (1 ton, 1.1 US ton, 1.0 Imp ton)

Fig 2: Installing Roller Bearing (Transfer Case Side)
Courtesy of SUBARU OF AMERICA, INC.
