Transfer Drive Gear: Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Set the ST applying to inner race of bearing and install to drive shaft.

    ST 398177700 INSTALLER

    NOTE: Do not apply pressure in excess of 10 kN (1 ton, 1.1 US ton, 1.0 Imp ton)

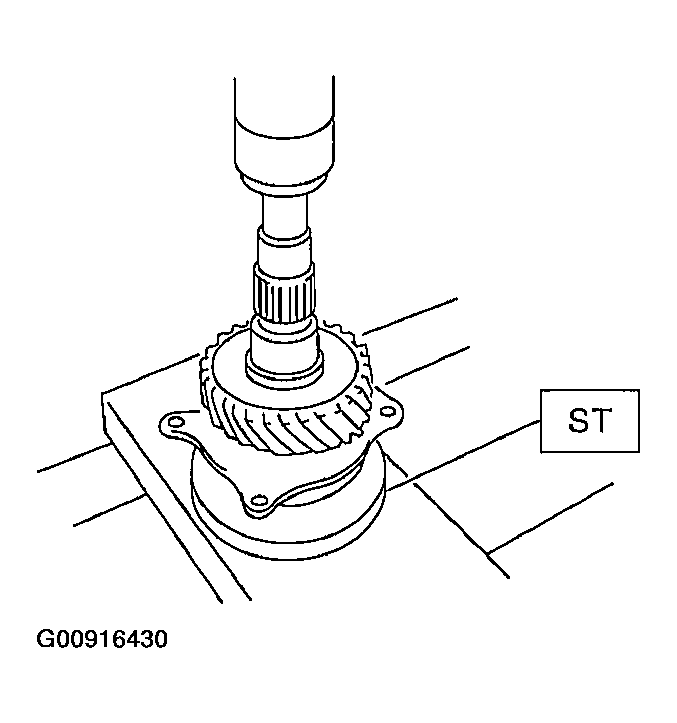

    Fig 1: Setting ST Applying To Inner Race Of Bearing
    G00916430Courtesy of SUBARU OF AMERICA, INC.
  2. Install the snap ring on transfer drive shaft.
  3. Check the clearance between snap ring and ball bearing. Refer to INSPECTION  , Transfer Drive Gear.
