General Diagnostic: Inspection

WARNING: This page is about a different variant/trim than selected.
  1. MANUAL TRANSMISSION

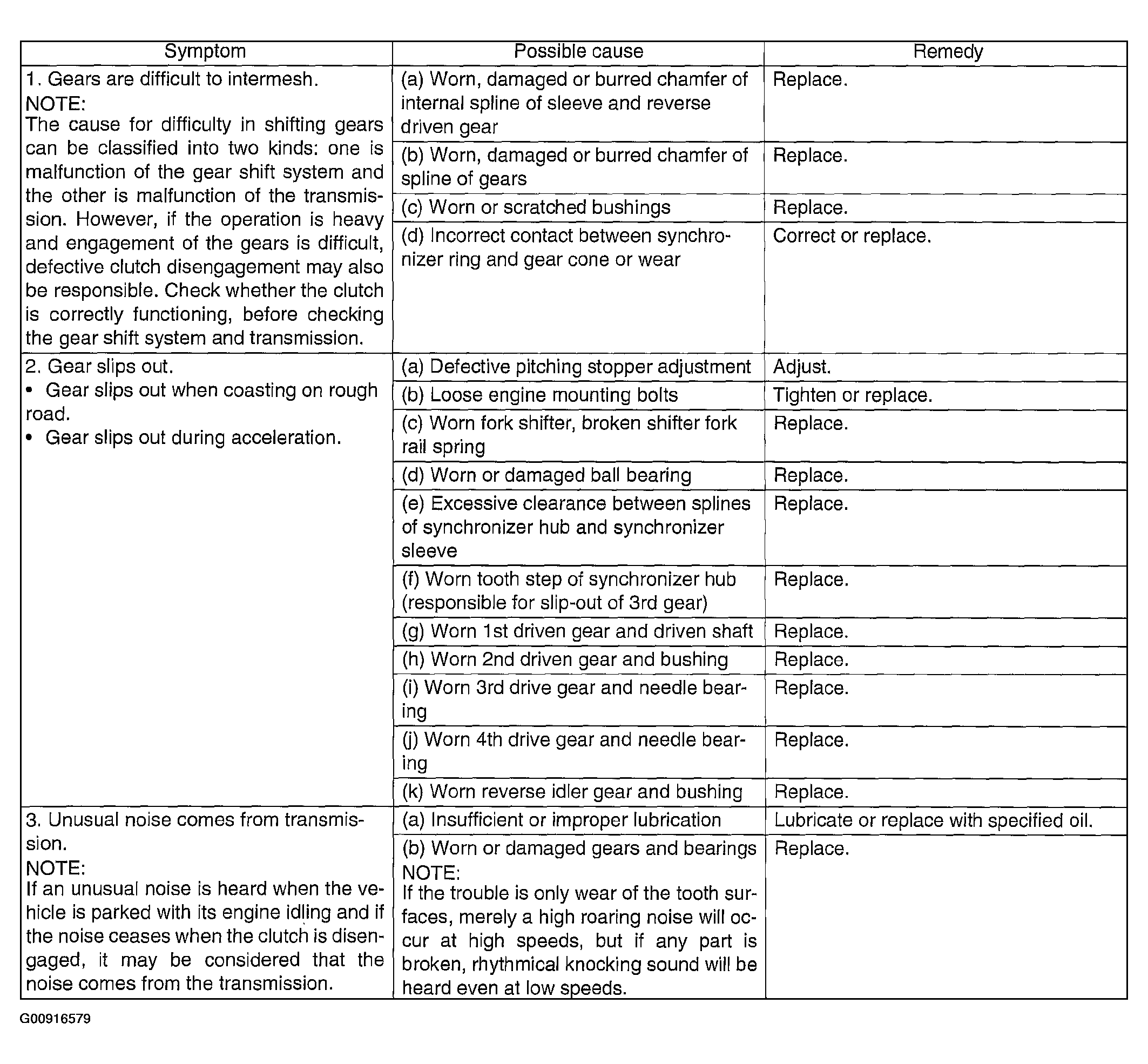

    Fig 1: Manual Transmission Inspection Chart
    G00916579Courtesy of SUBARU OF AMERICA, INC.
  2. DIFFERENTIAL

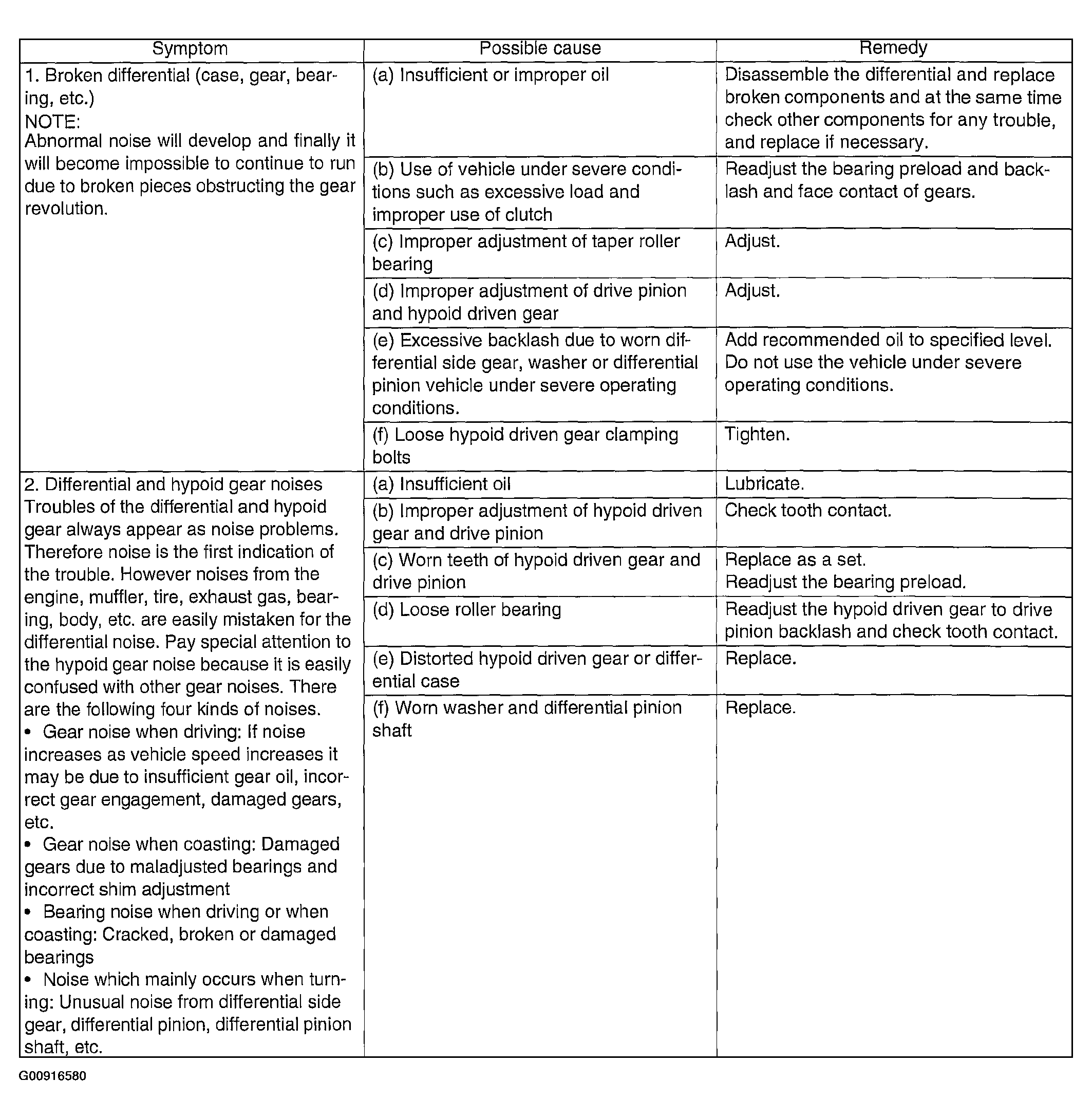

    Fig 2: Differential Inspection Chart
    G00916580Courtesy of SUBARU OF AMERICA, INC.
