Center Differential: Disassembly
WARNING: This page is about a different variant/trim than selected.
NOTE:
Do not disassemble the center differential because it is a non-disassemble part.

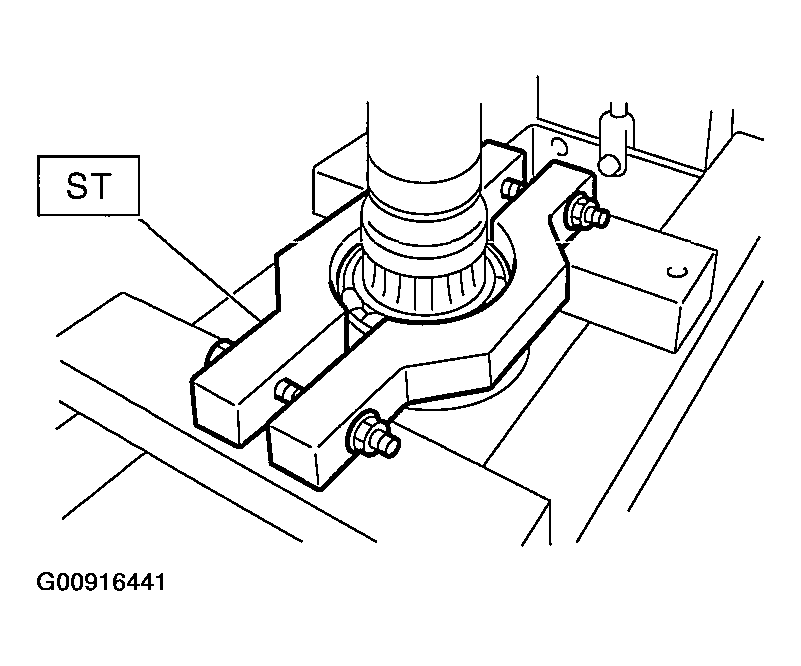

Remove the ball bearing using ST.
NOTE:
Do not reuse the ball bearing.
ST4 98077300 CENTER DIFFERENTIAL BEARING REMOVER
Courtesy of SUBARU OF AMERICA, INC.
