Home >> Subaru >> 2004 >> Outback L.L. Bean Edition >> Repair and Diagnosis >> Engine Performance >> System >> Engine (Diagnostics) (H6DO) >> Diagnostics for Engine Starting Failure >> Procedure

Diagnostics for Engine Starting Failure: Procedure

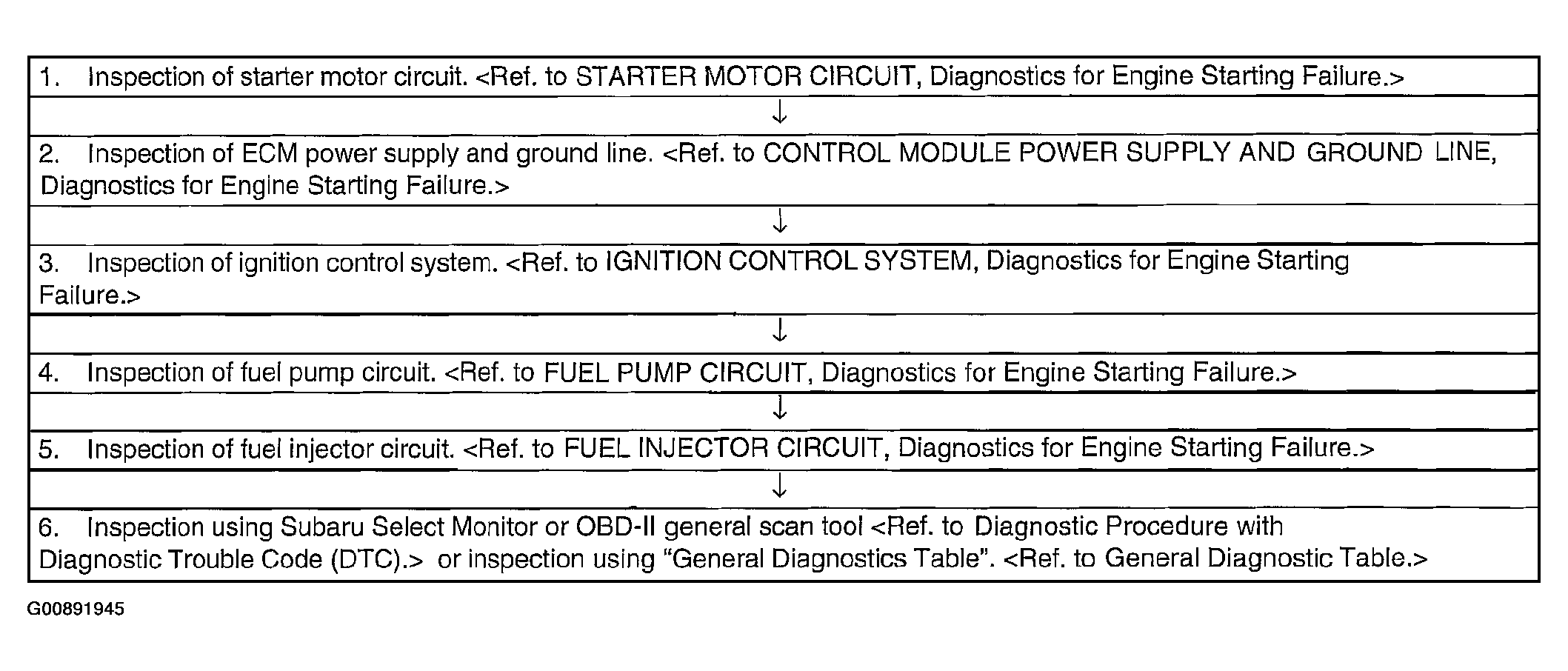

Fig 1: Diagnostics Chart For Engine Starting Failure Procedure

G00891945

Courtesy of SUBARU OF AMERICA, INC.
