Rear Differential Front Member: Installation

  1. Install rear differential front member.
    1. Tightening torque:

      T1: 65 N.m (6.6 kgf-m, 48 ft-lb)

      T2: 110 N.m (11.2 kgf-m, 81 ft-lb)

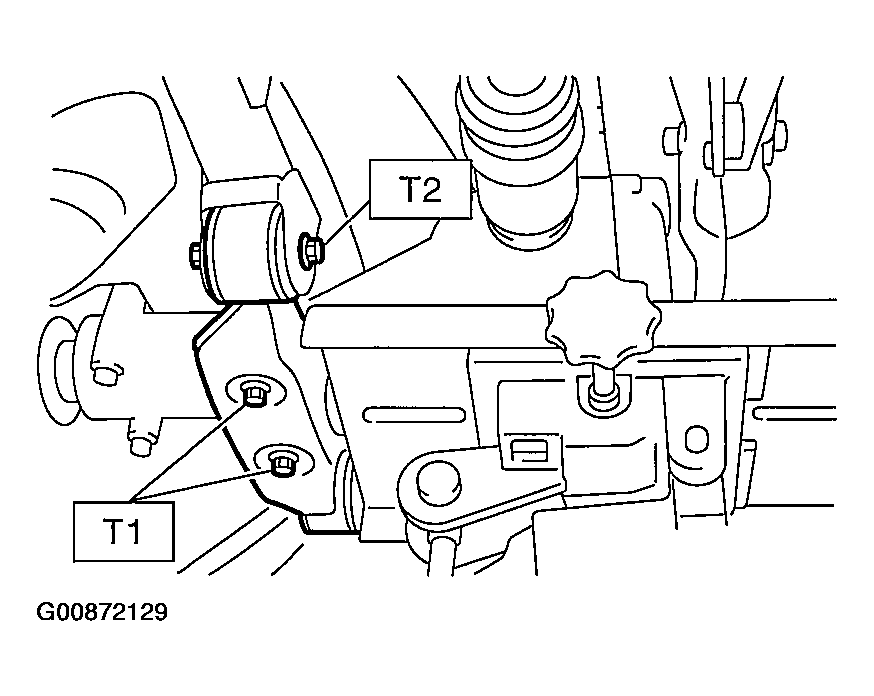

    Fig 1: Identifying Rear Differential Front Member
    G00872129Courtesy of SUBARU OF AMERICA, INC.
