Adjusting Parts
VA-type

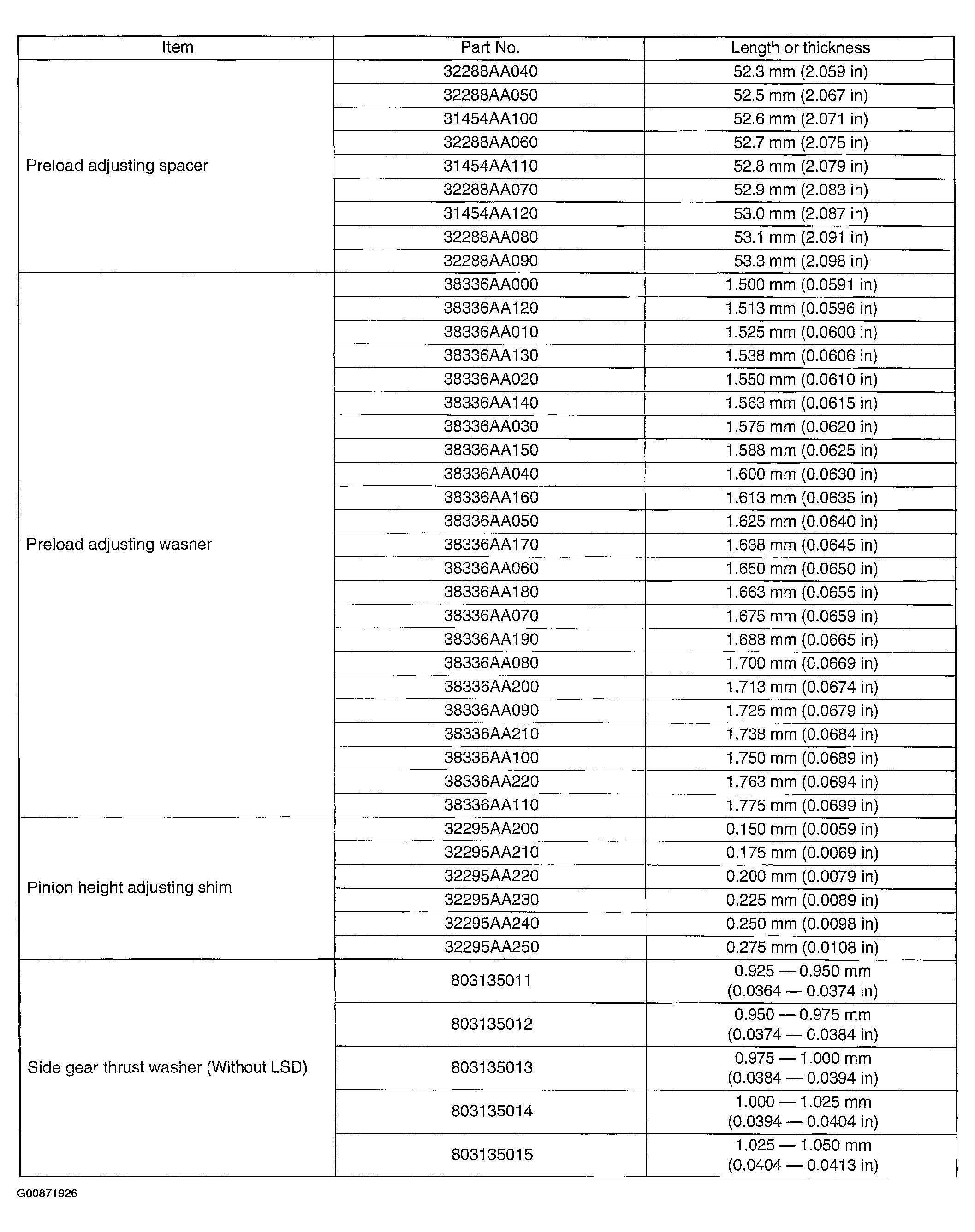

Fig 1: Adjusting Parts Specifications (VA-Type)
Courtesy of SUBARU OF AMERICA, INC.
T-type

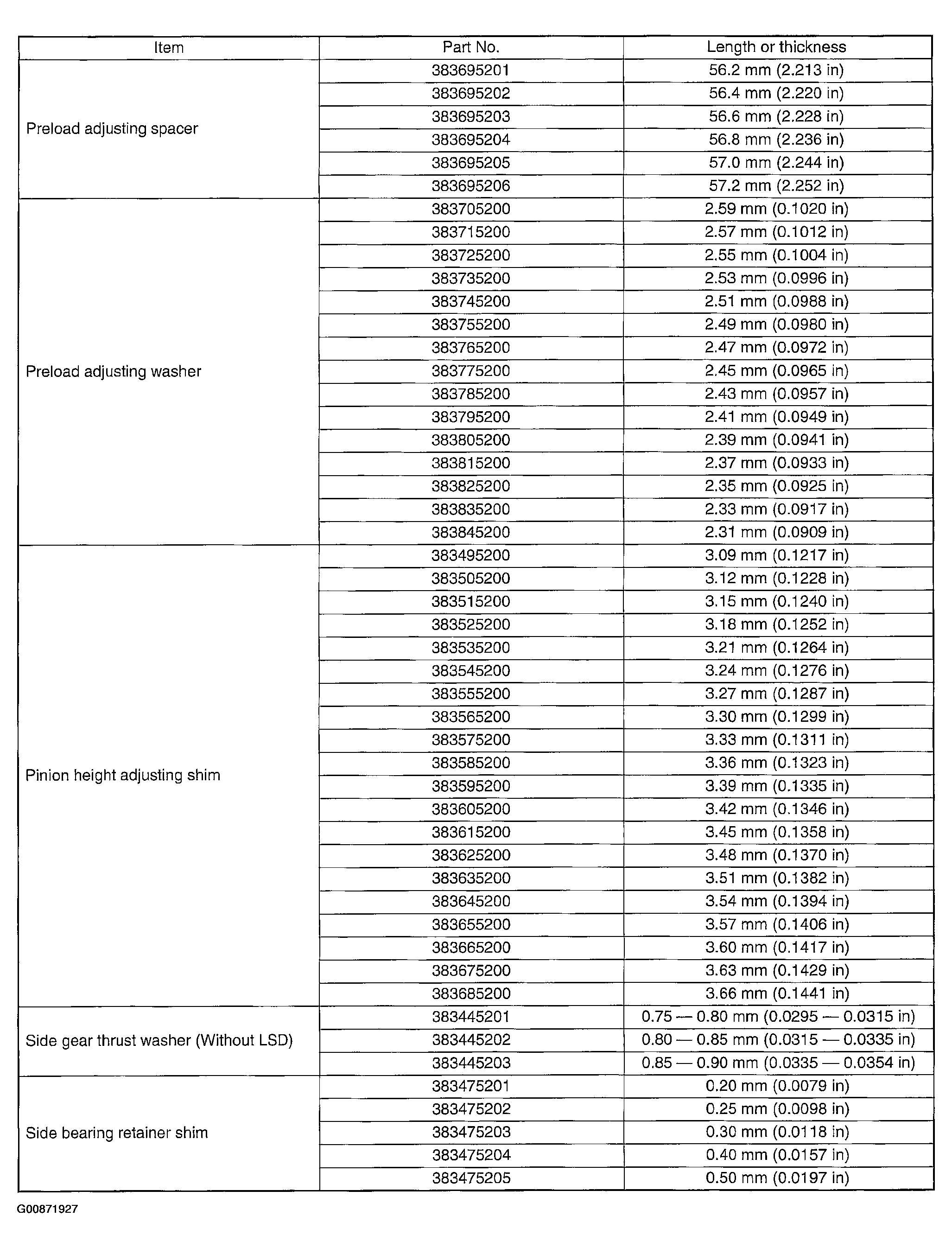

Fig 2: Adjusting Parts Specifications (T-Type)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
