Special Tools

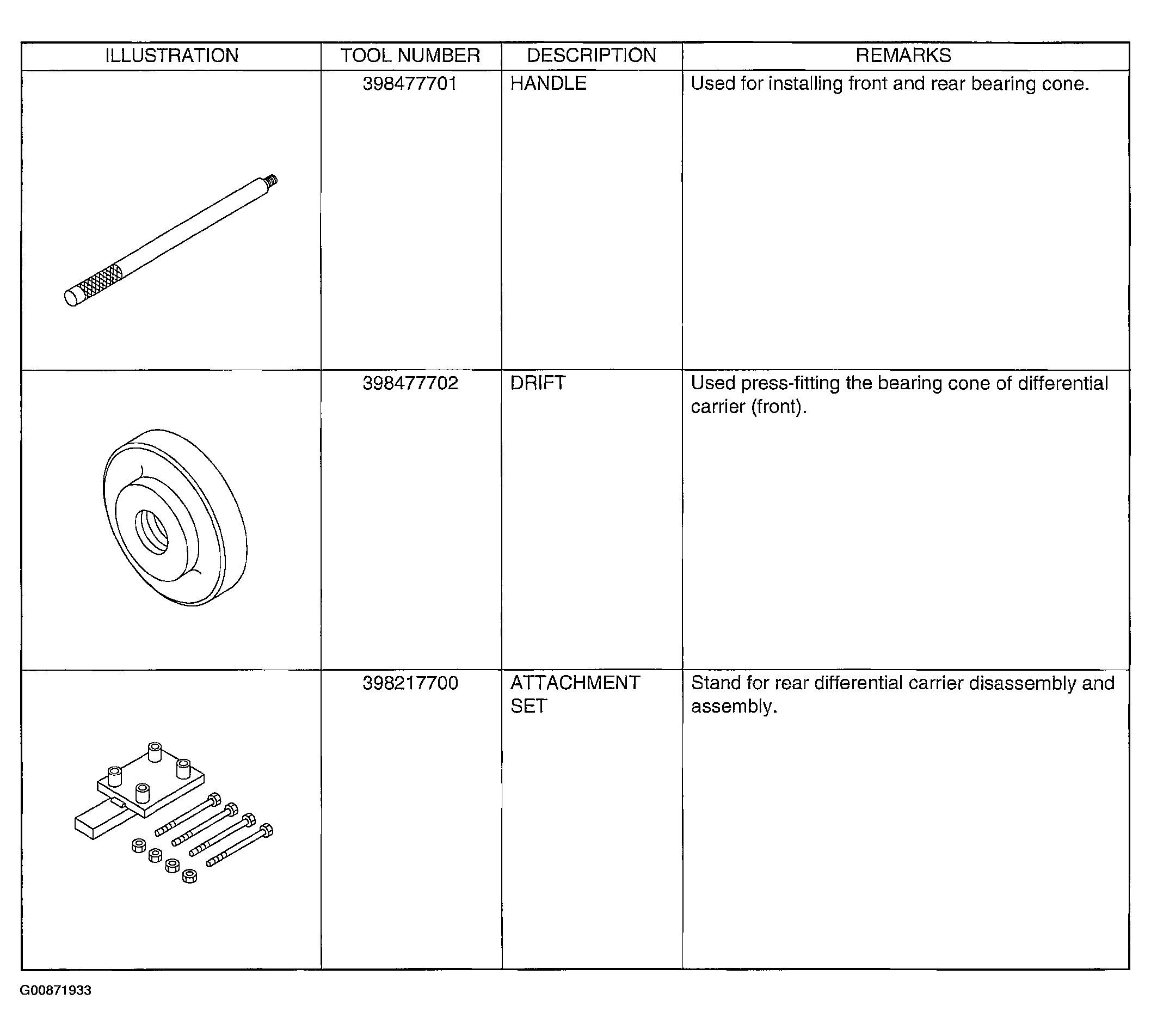

Fig 1: Identifying Special Tools (1 Of 11)

G00871933

Courtesy of SUBARU OF AMERICA, INC.

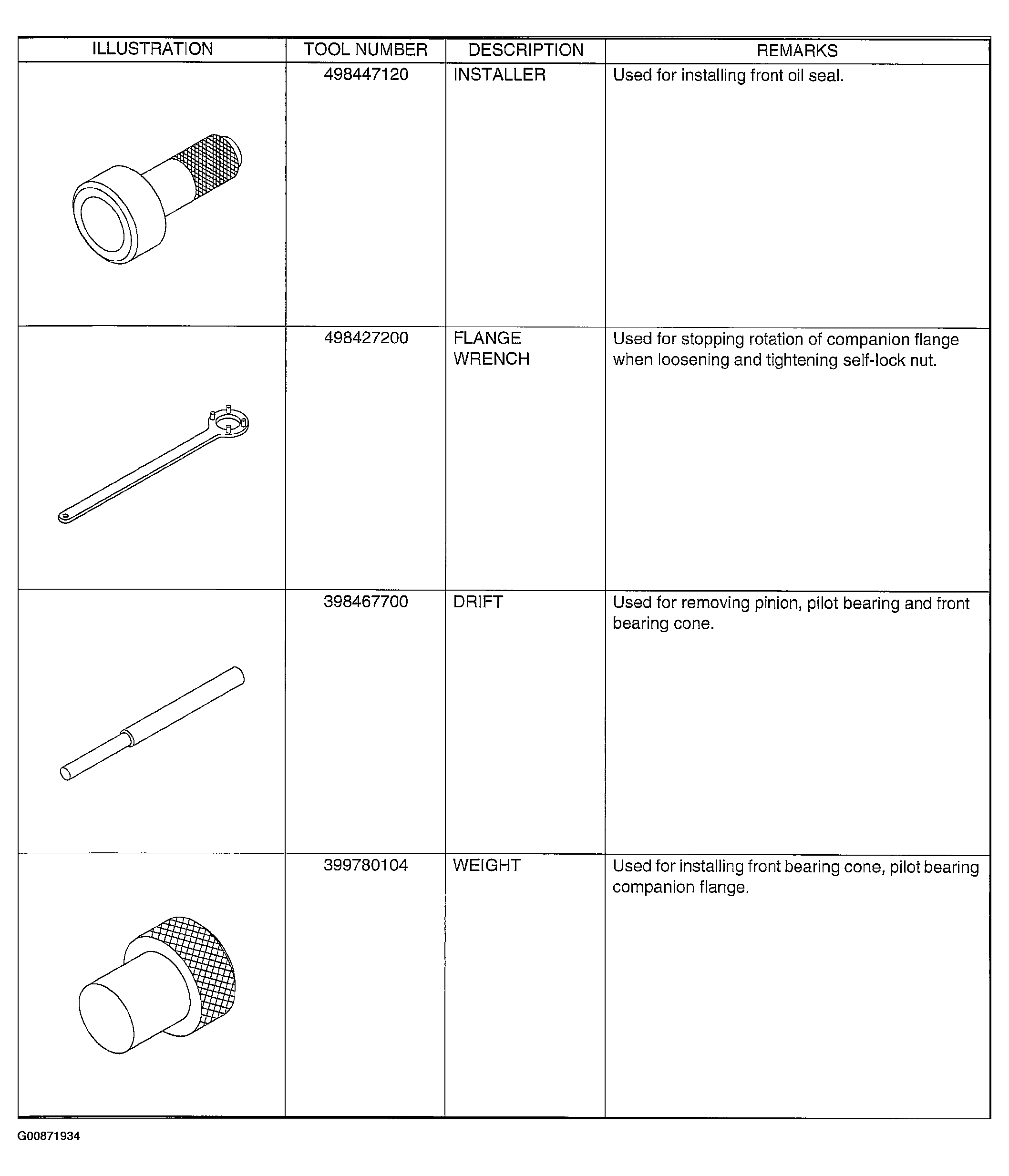

Fig 2: Identifying Special Tools (2 Of 11)

G00871934

Courtesy of SUBARU OF AMERICA, INC.

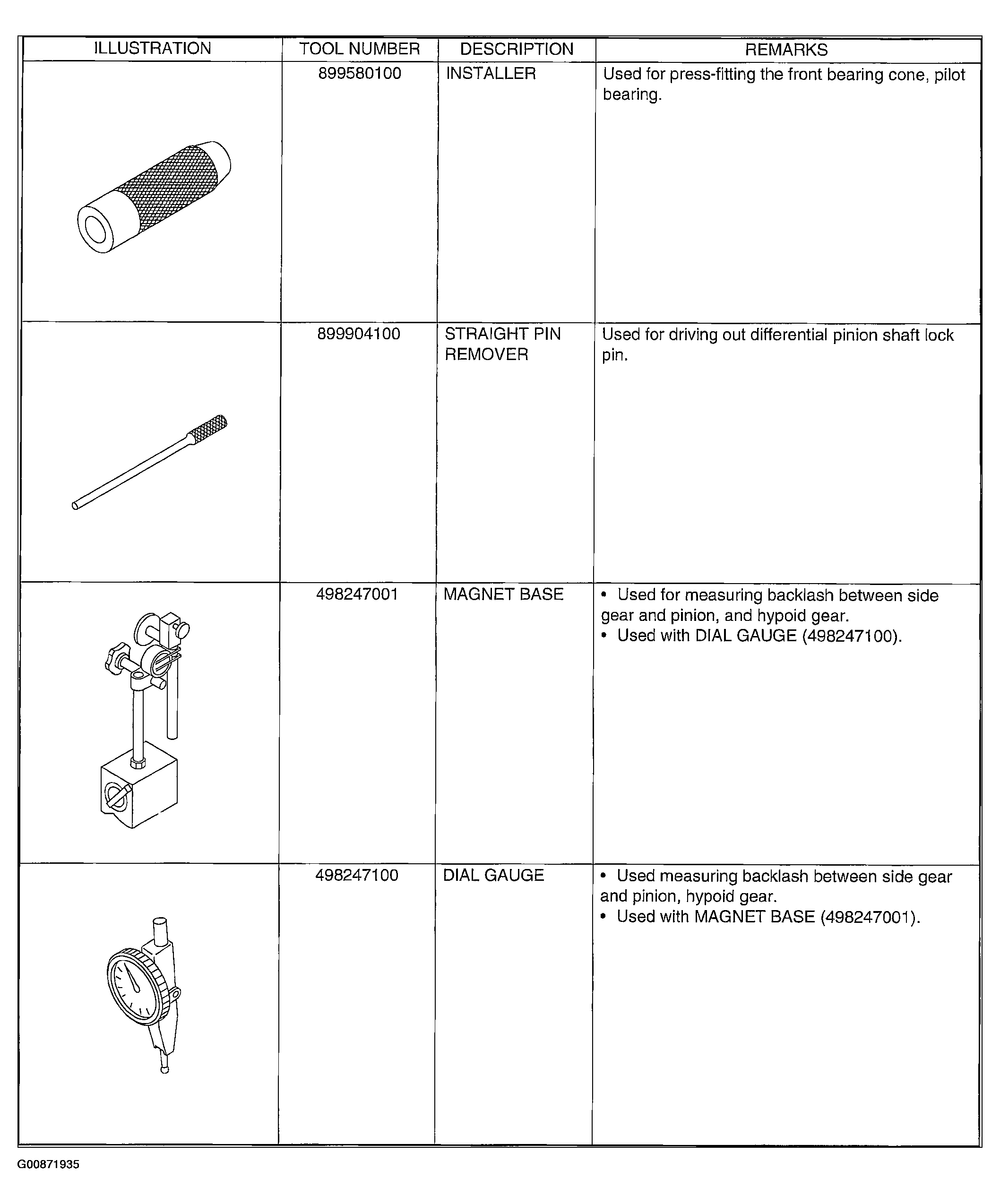

Fig 3: Identifying Special Tools (3 Of 11)

G00871935

Courtesy of SUBARU OF AMERICA, INC.

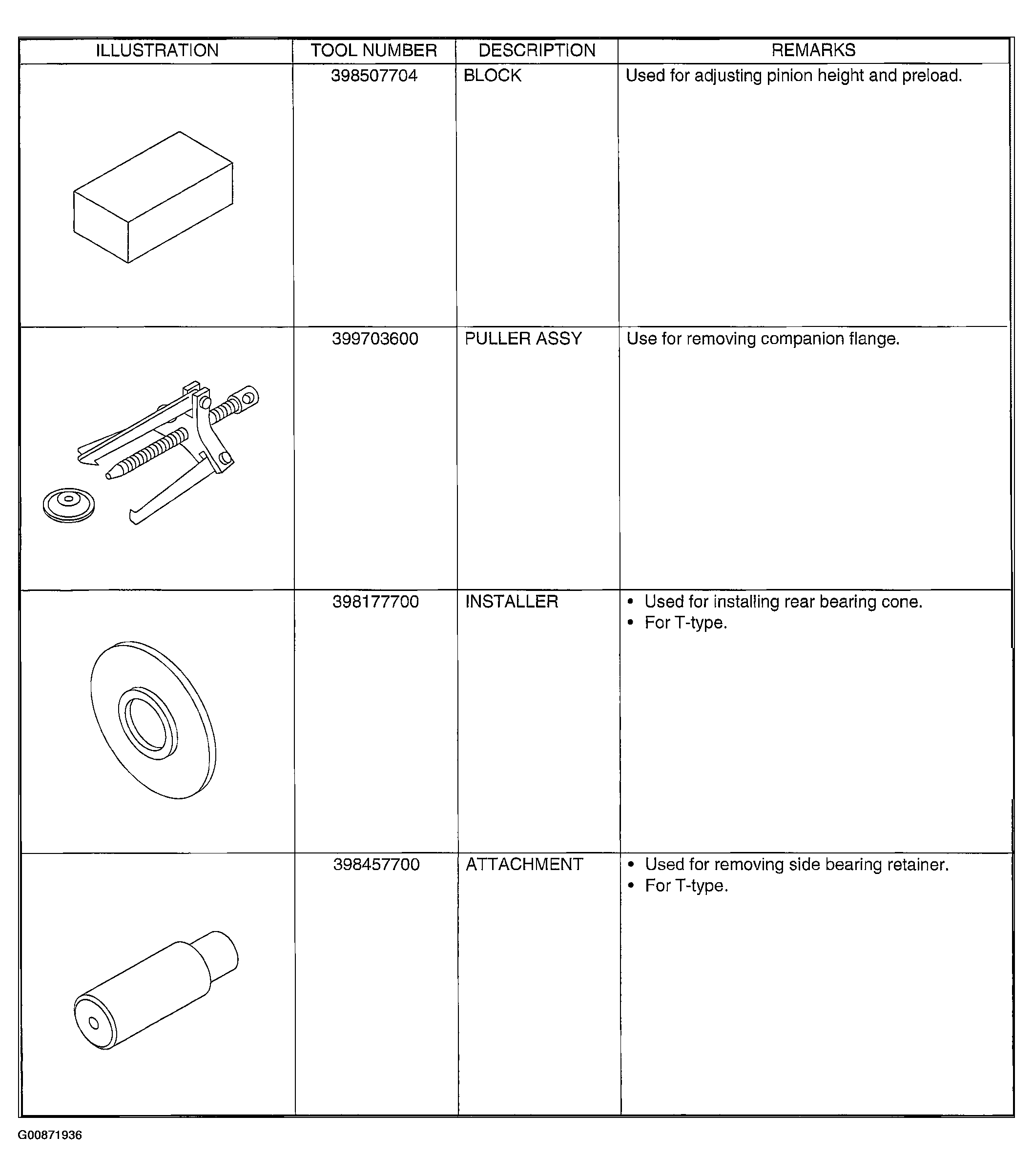

Fig 4: Identifying Special Tools (4 Of 11)

G00871936

Courtesy of SUBARU OF AMERICA, INC.

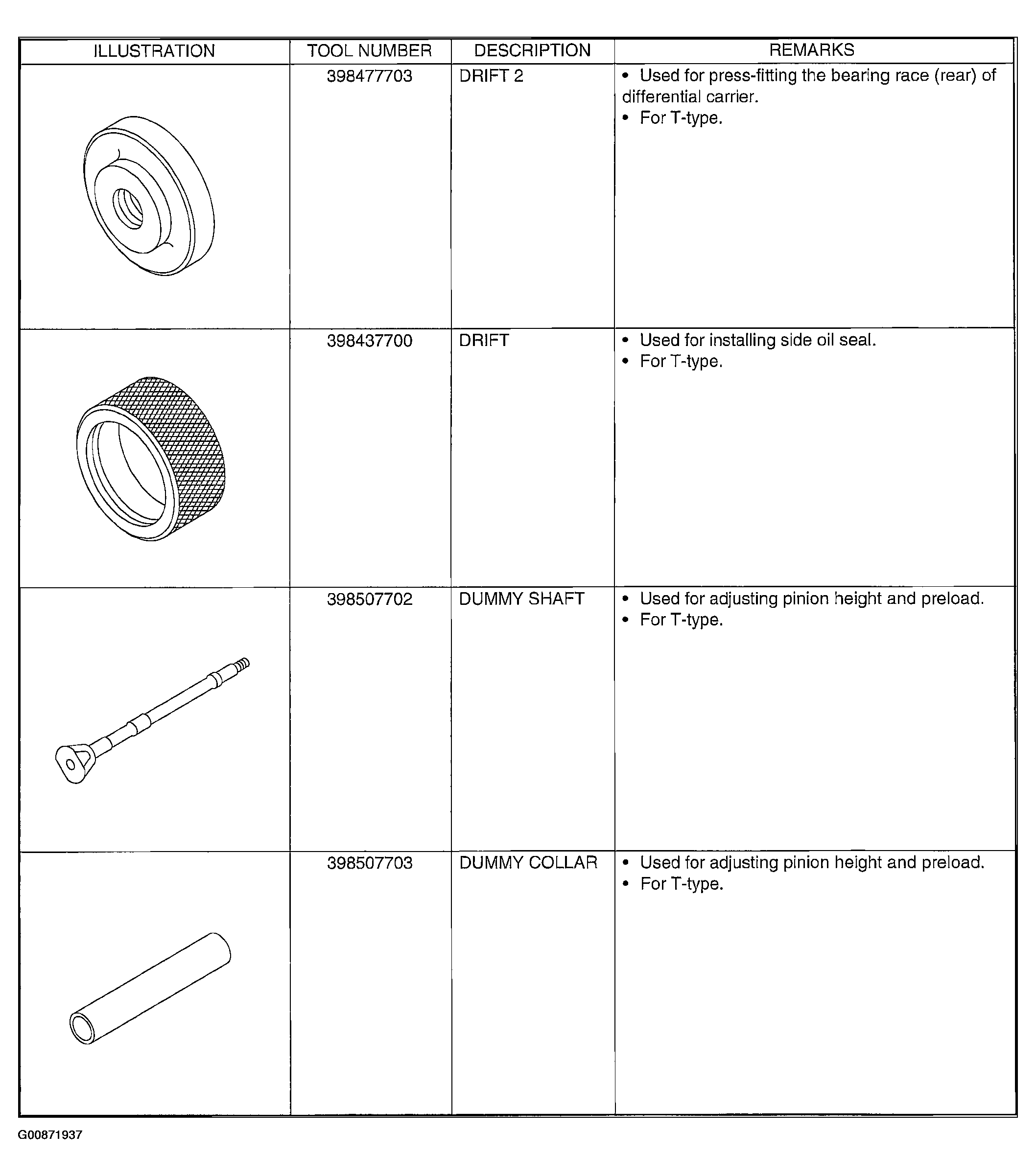

Fig 5: Identifying Special Tools (5 Of 11)

G00871937

Courtesy of SUBARU OF AMERICA, INC.

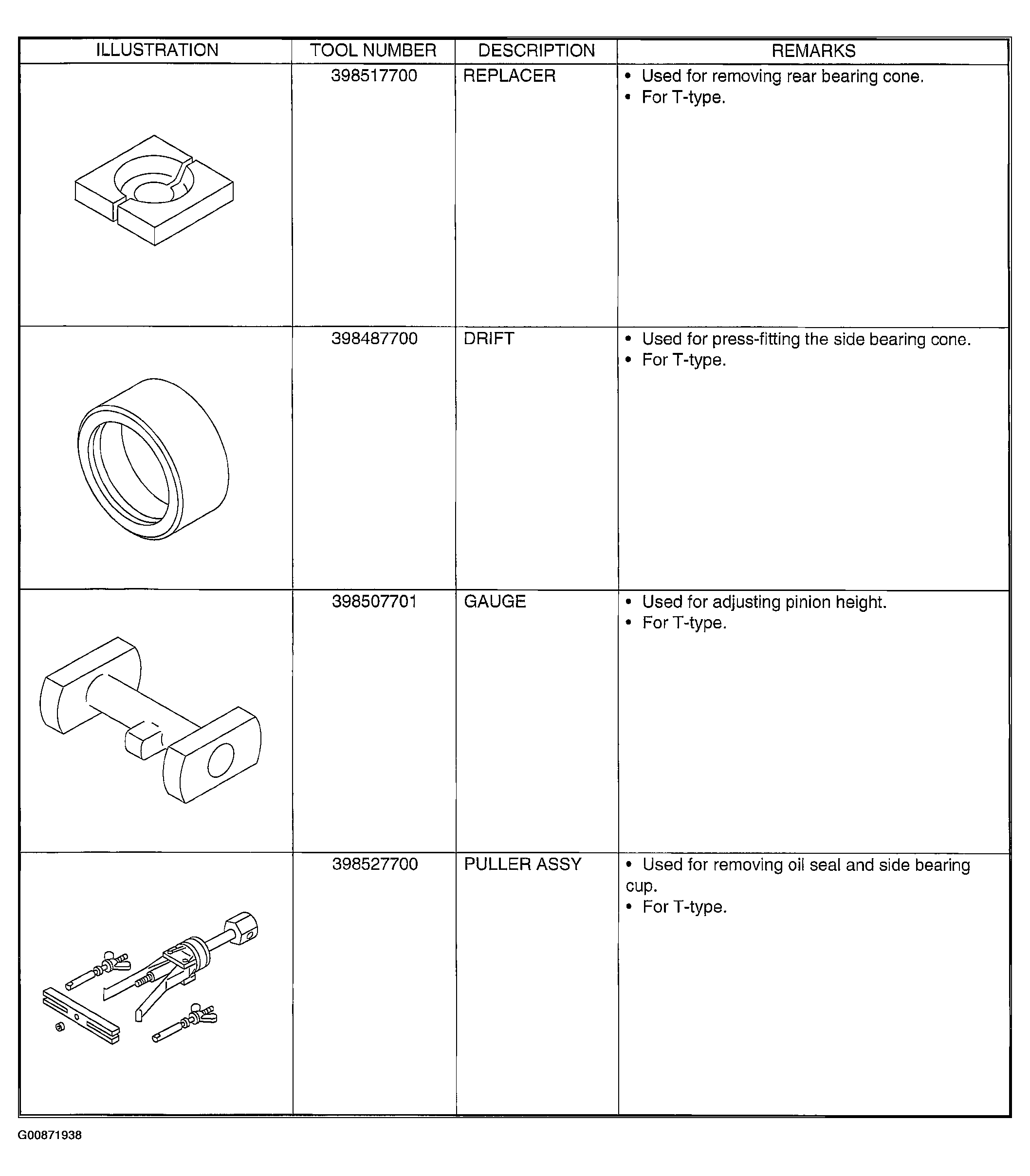

Fig 6: Identifying Special Tools (6 Of 11)

G00871938

Courtesy of SUBARU OF AMERICA, INC.

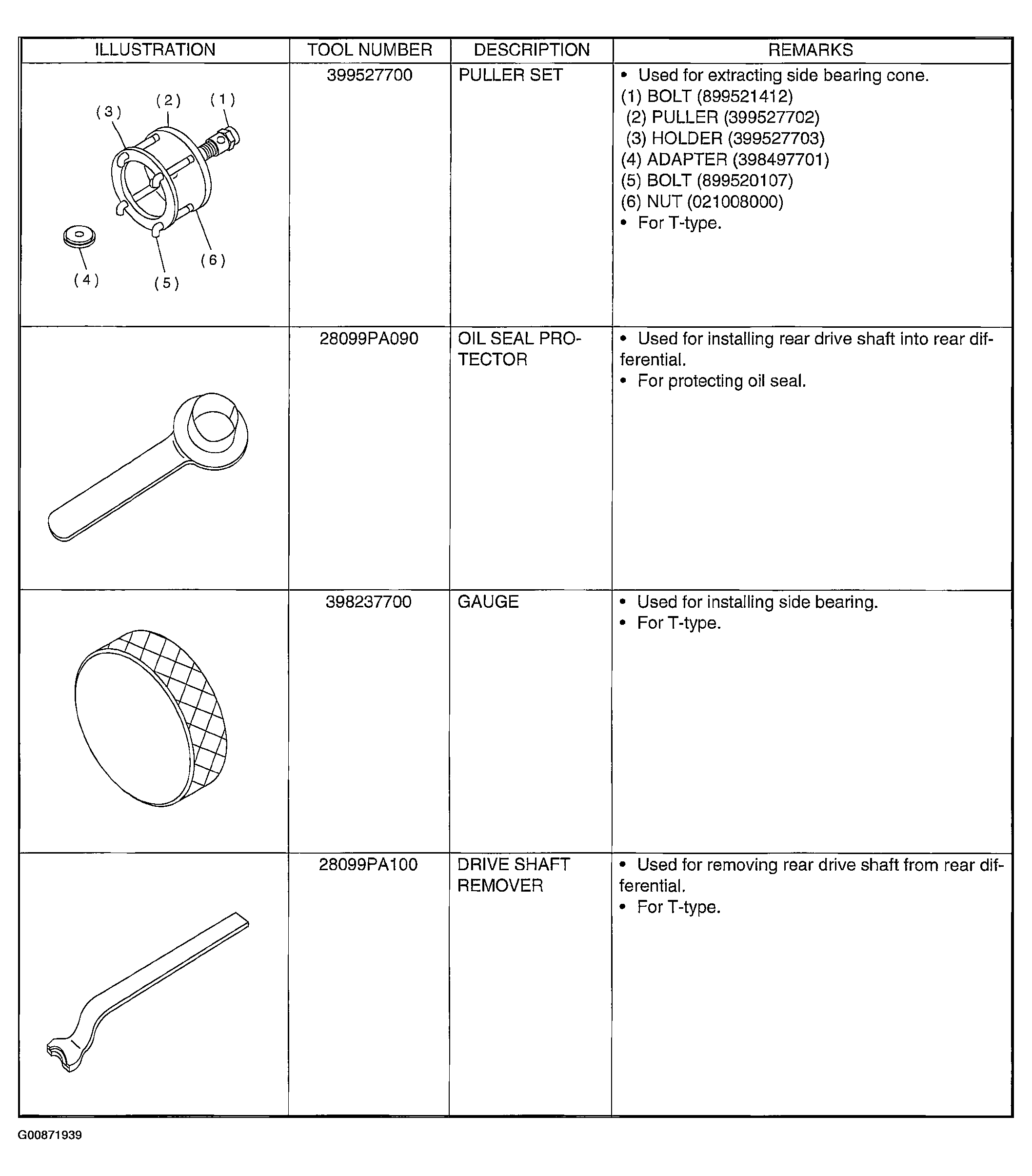

Fig 7: Identifying Special Tools (7 Of 11)

G00871939

Courtesy of SUBARU OF AMERICA, INC.

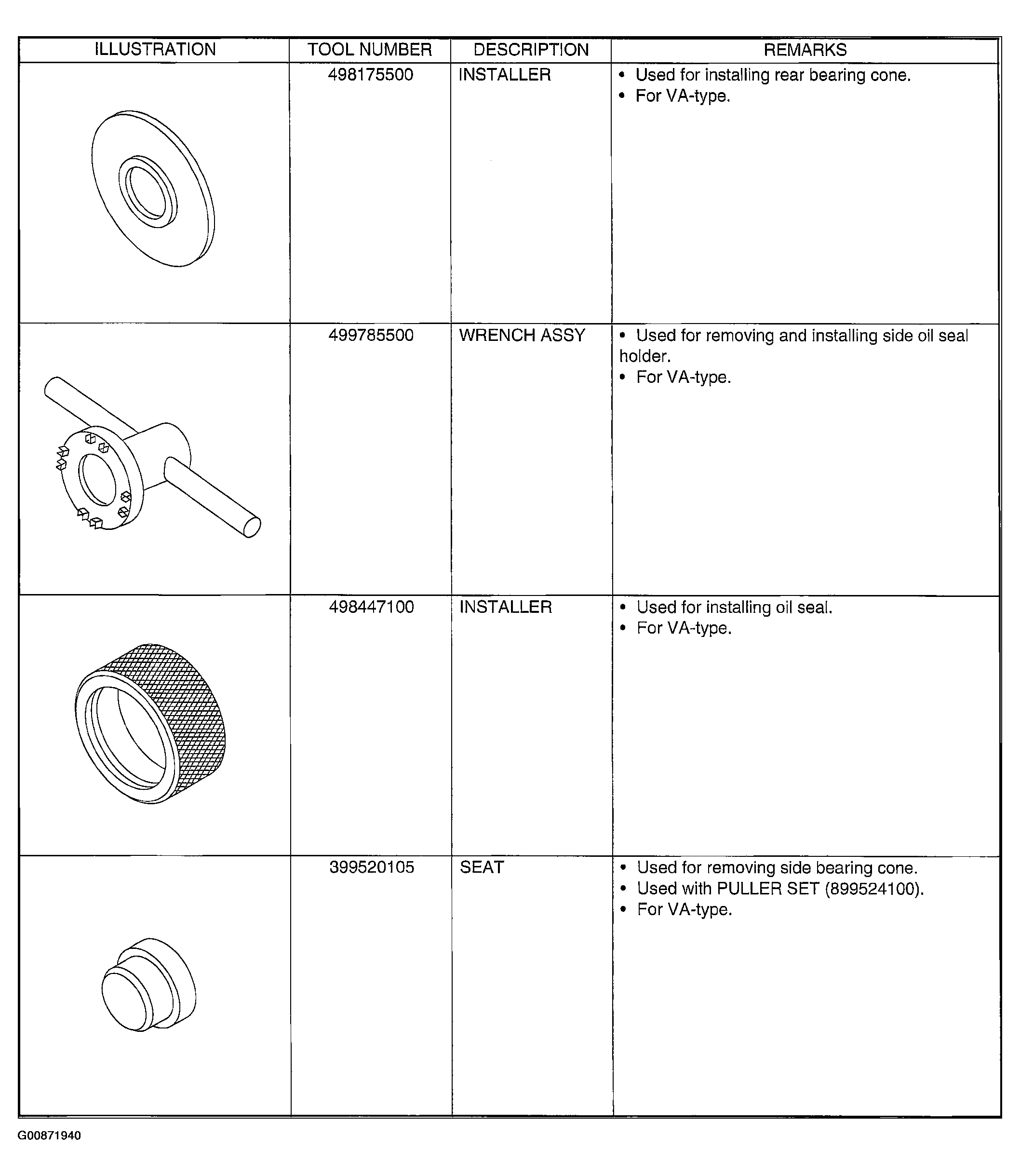

Fig 8: Identifying Special Tools (8 Of 11)

G00871940

Courtesy of SUBARU OF AMERICA, INC.

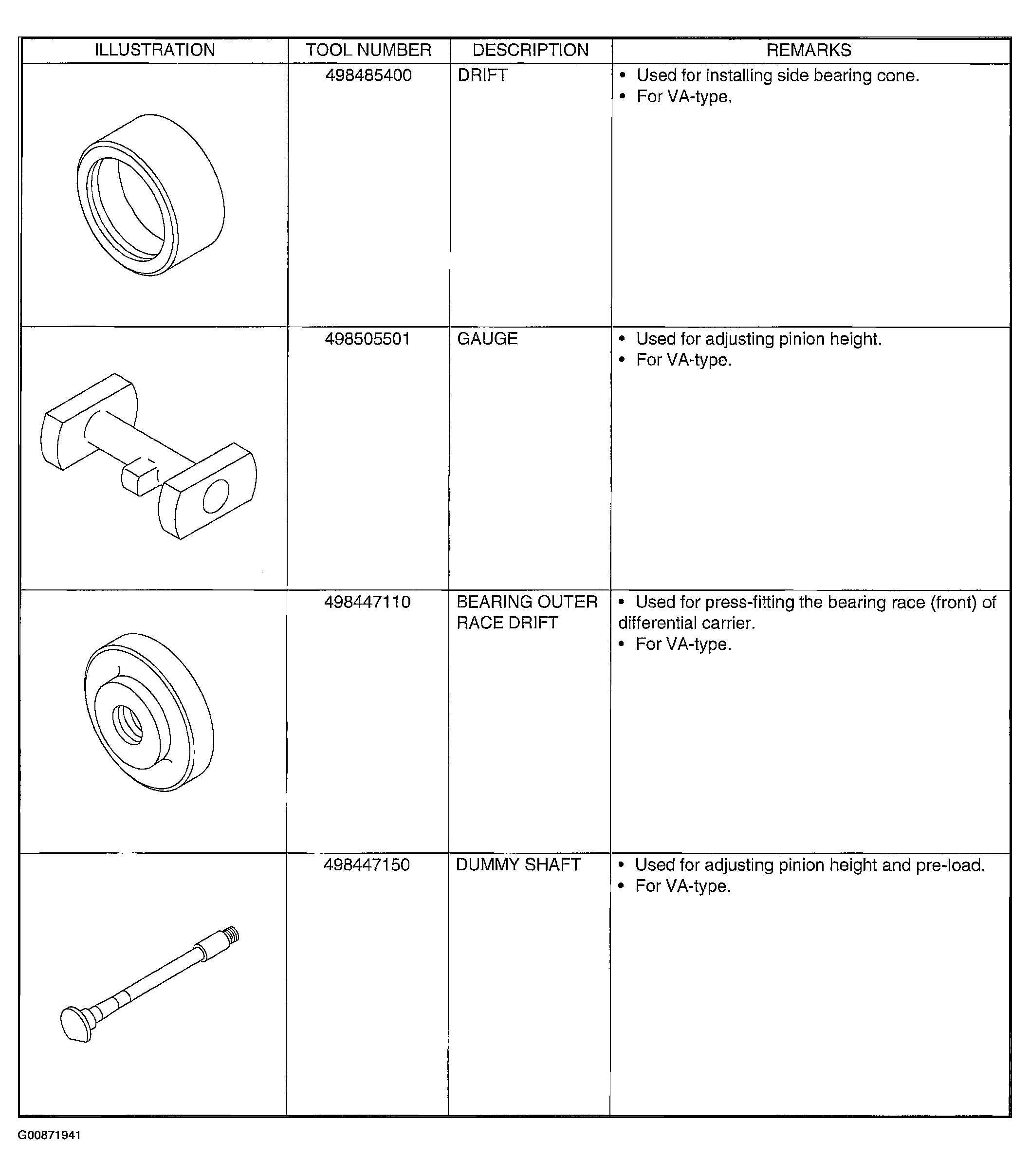

Fig 9: Identifying Special Tools (9 Of 11)

G00871941

Courtesy of SUBARU OF AMERICA, INC.

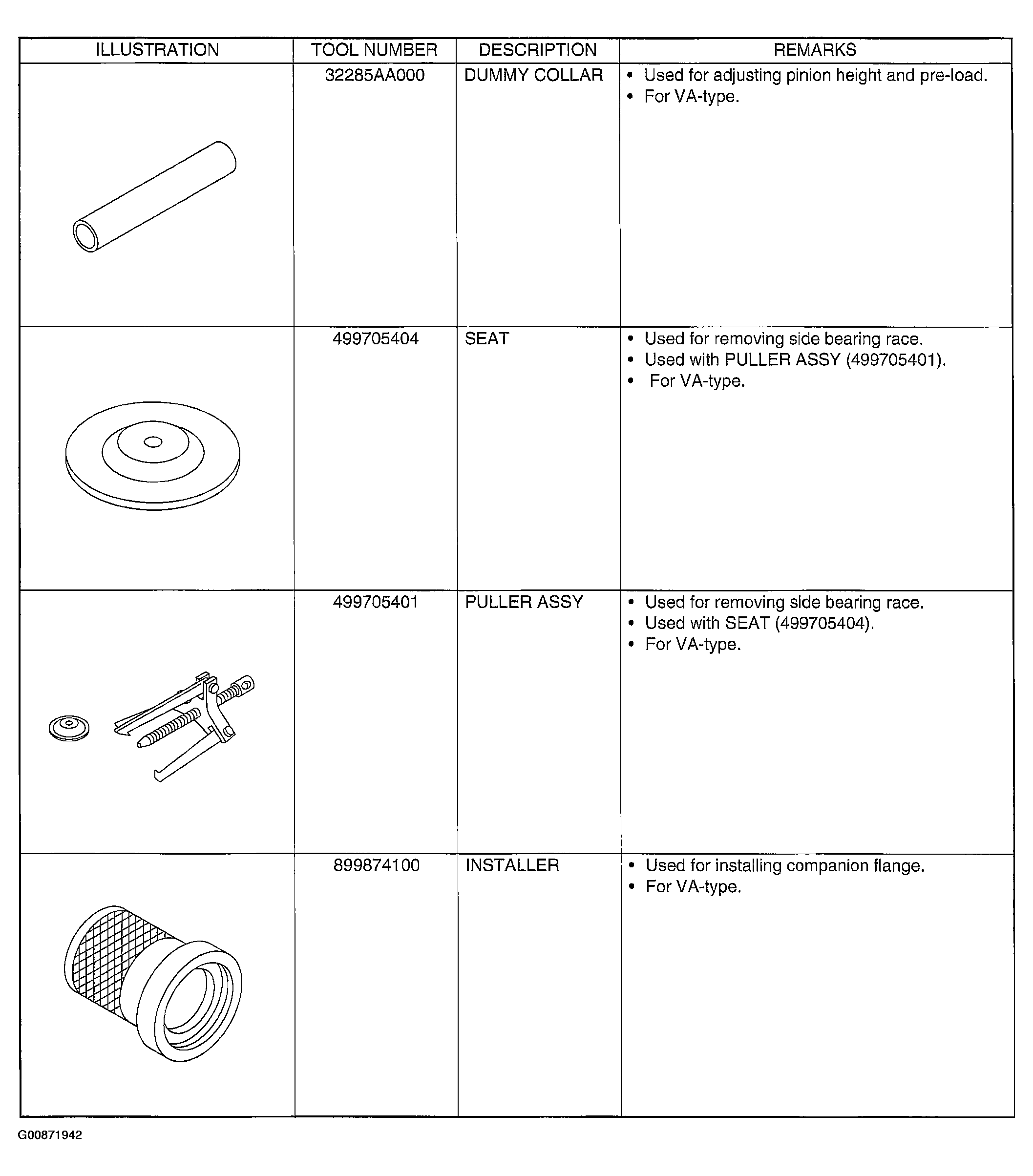

Fig 10: Identifying Special Tools (10 Of 11)

G00871942

Courtesy of SUBARU OF AMERICA, INC.

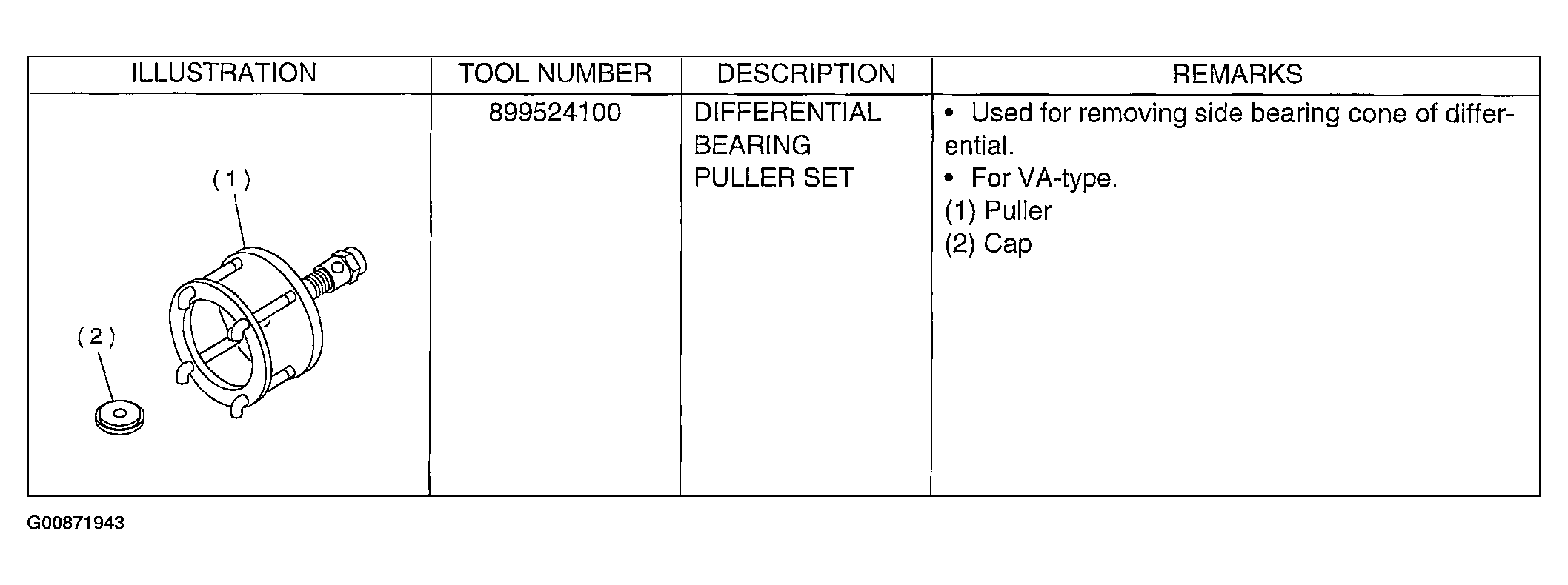

Fig 11: Identifying Special Tools (11 Of 11)

G00871943

Courtesy of SUBARU OF AMERICA, INC.
