Switch Back Gate Lock
Switch Back Gate Lock

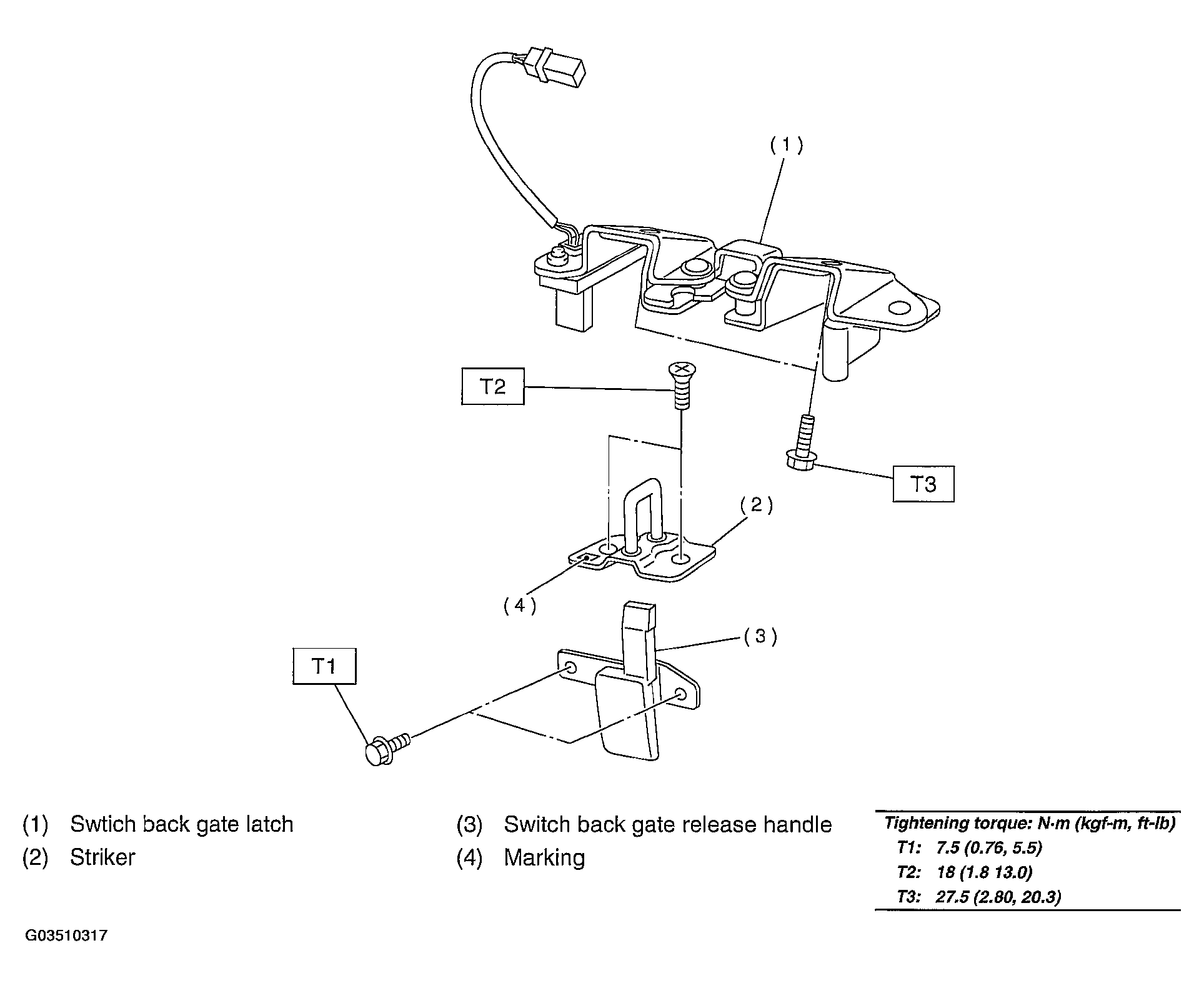

Fig 1: Identifying Switch Back Gate Lock Components
Courtesy of SUBARU OF AMERICA, INC.
NOTE:
When installing striker, mount with marked portion facing the vehicle front.
Courtesy of SUBARU OF AMERICA, INC.
