Front Tweeter: Removal

  1. Disconnect ground cable from battery.
  2. Remove gusset cover.

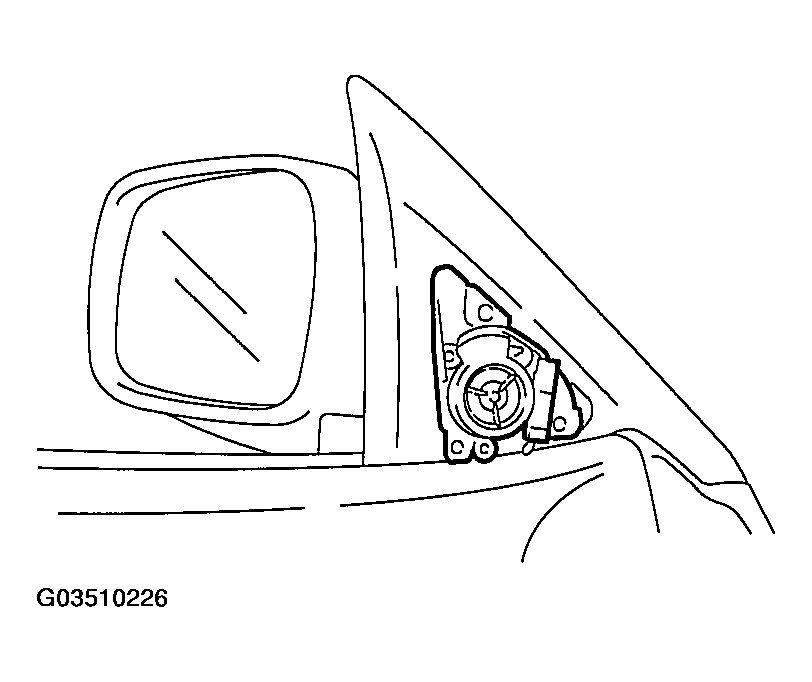

    Fig 1: Disconnecting Harness Connector & Removing Tweeter
    G03510226Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect harness connector and remove tweeter.
