Parking Pawl: Installation

  1. Install the parking pawl, shaft and return spring.

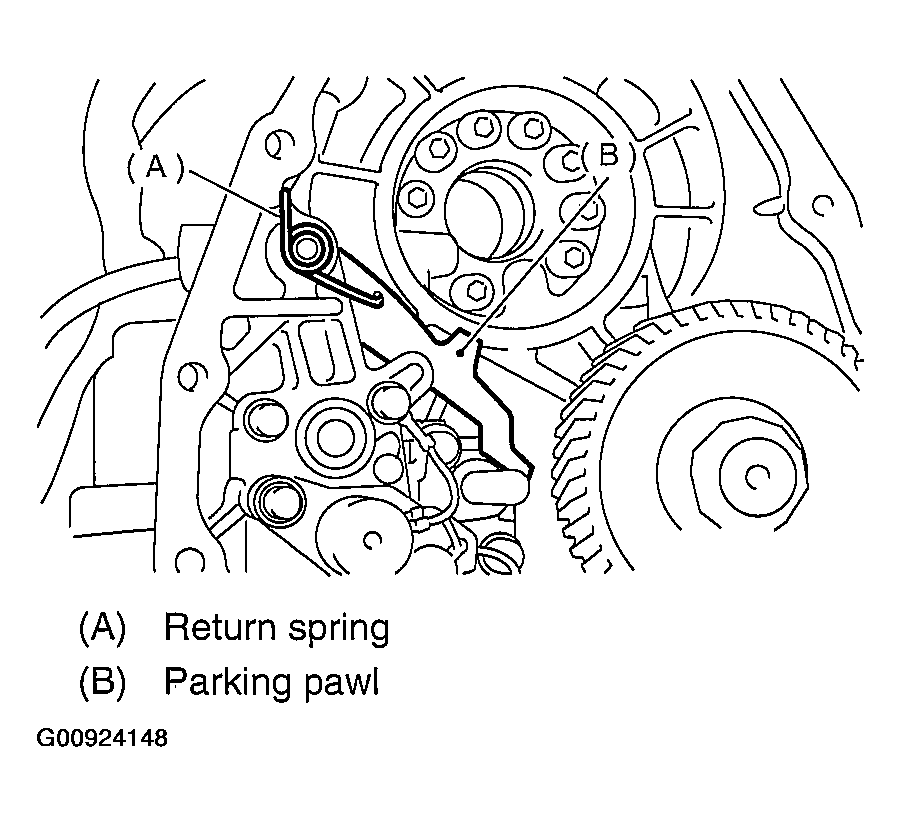

    Fig 1: Installing Parking Pawl, Shaft & Return Spring
    G00924148Courtesy of SUBARU OF AMERICA, INC.
  2. Install the reduction drive gear. Refer to INSTALLATION .
  3. Install the center differential carrier. (VTD model) Refer to INSTALLATION .
  4. Install the rear vehicle speed sensor and extension case. Refer to INSTALLATION .
  5. Install the transmission assembly to the vehicle. Refer to INSTALLATION .
