Oil Pump Housing: Installation

  1. Secure the oil pump housing with two nuts and the bolt.
    1. Tightening torque: 42 N.m (4.3 kgf-m, 31 ft-lb)

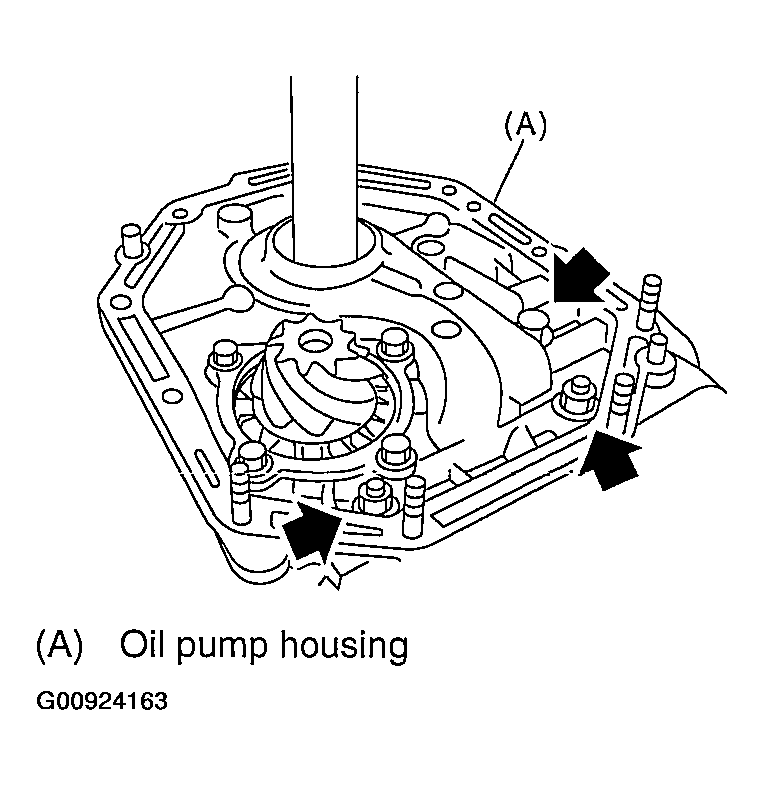

    Fig 1: Installing Oil Pump Housing With Nuts & Bolt
    G00924163Courtesy of SUBARU OF AMERICA, INC.
  2. Install the torque converter clutch case assembly to the transmission case assembly. Refer to INSTALLATION .
  3. Install reduction driven gear. Refer to INSTALLATION .
  4. Install the reduction drive gear. (MPT model) Refer to INSTALLATION .
  5. Install the center differential carrier. (VTD model) Refer to INSTALLATION .
  6. Combine the extension case with the transmission case, and install vehicle speed sensor 1 (rear). Refer to INSTALLATION .
  7. Insert inhibitor switch and transmission connector into stay.

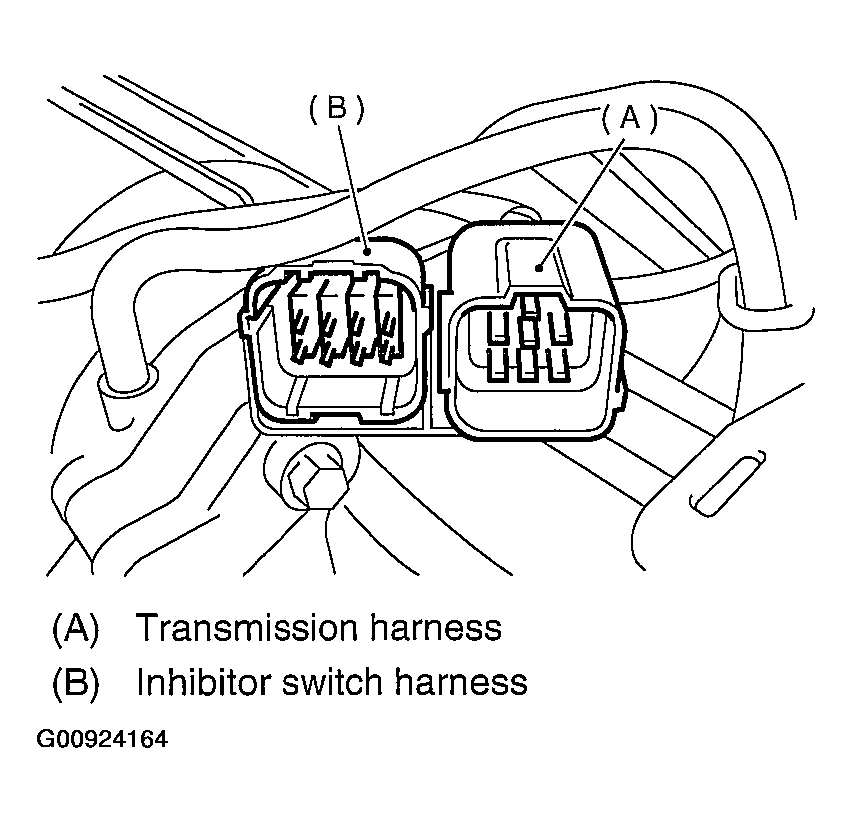

    Fig 2: Inserting Inhibitor Switch & Transmission Connector Into Stay
    G00924164Courtesy of SUBARU OF AMERICA, INC.
  8. Install the oil cooler pipe. Refer to INSTALLATION .
  9. Install the oil charger pipe with O-ring. Refer to INSTALLATION .
  10. Insert the input shaft while turning lightly by hand and verify the protrusion amount.
    1. Normal protrusion A: 50 - 55 mm (1.97 - 2.17 in)

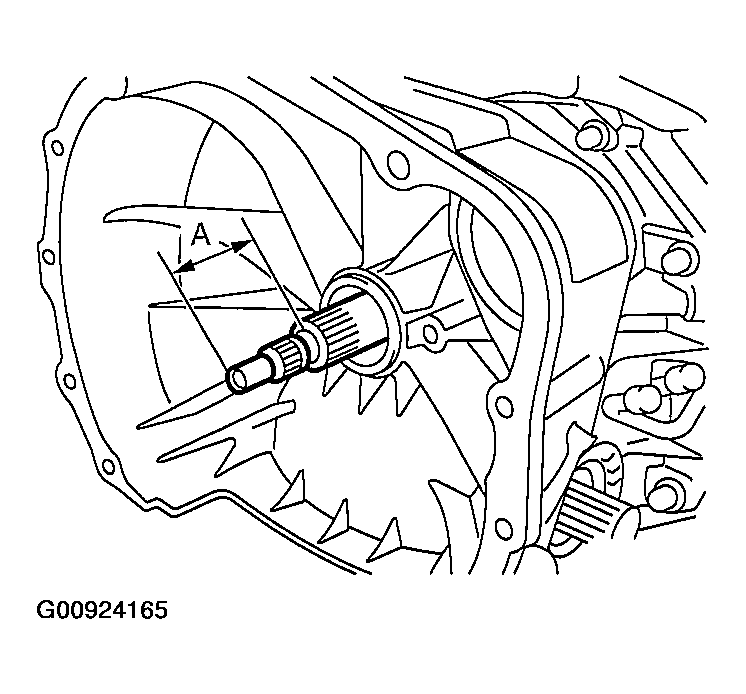

    Fig 3: Inserting Input Shaft
    G00924165Courtesy of SUBARU OF AMERICA, INC.
  11. Install the torque converter clutch assembly. Refer to INSTALLATION .
  12. Install the transmission assembly to the vehicle. Refer to INSTALLATION .
