Oil Pump Housing: Disassembly

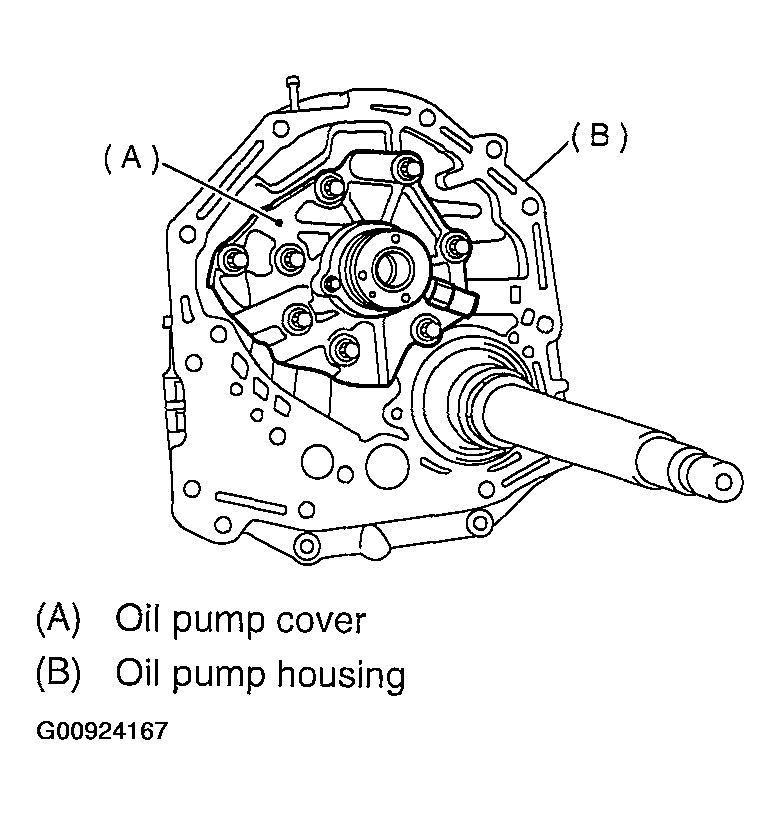

OIL PUMP COVER
1. Remove four seal rings.

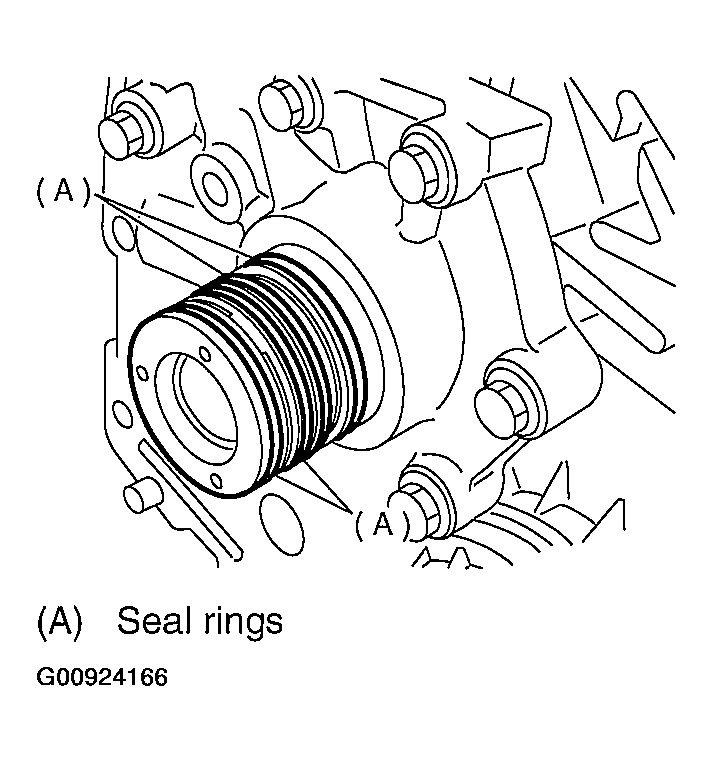

  Fig 1: Removing Seal Rings
  Courtesy of SUBARU OF AMERICA, INC.
2. Lightly tap the end of the stator shaft to remove the cover.

  Fig 2: Taping End Of Stator Shaft
  Courtesy of SUBARU OF AMERICA, INC.
3. Remove the inner and outer rotor.

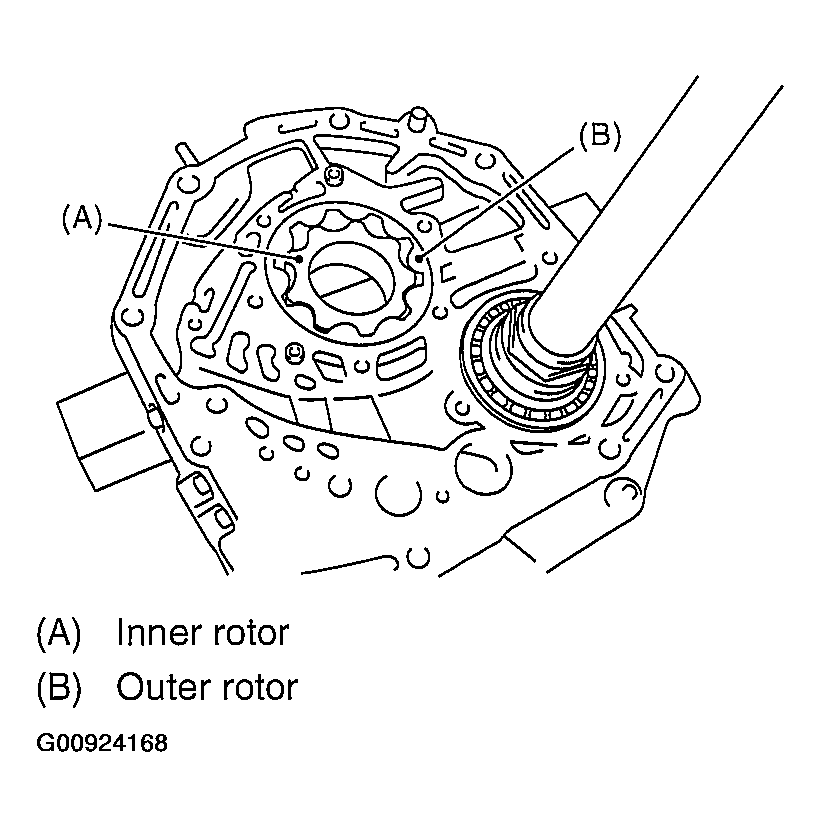

  Fig 3: Removing Inner & Outer Rotor
  Courtesy of SUBARU OF AMERICA, INC.
OIL SEAL RETAINER
1. Remove the oil seal retainer.

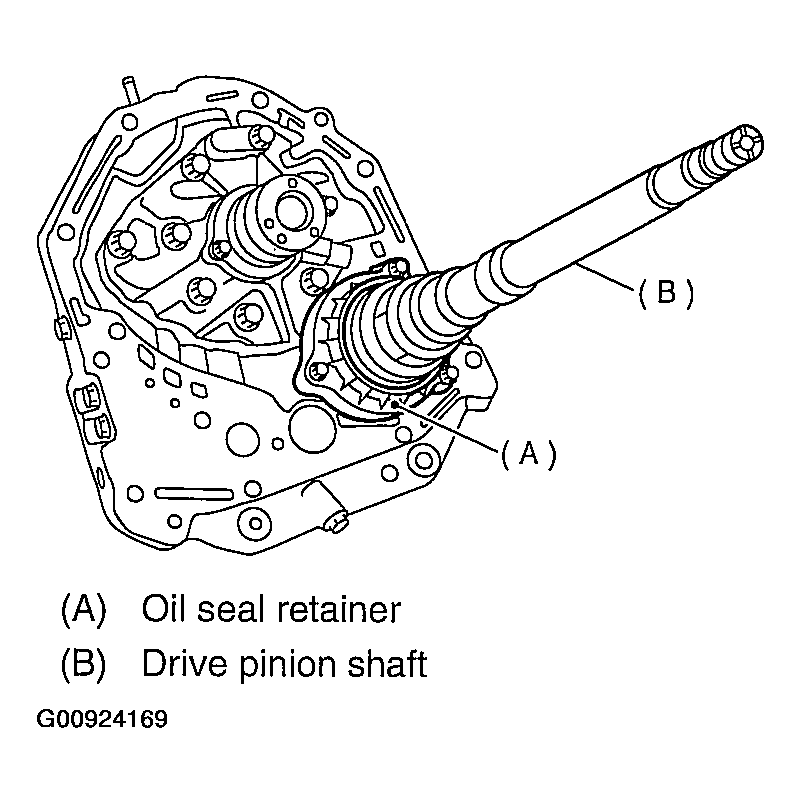

  Fig 4: Removing Oil Seal Retainer
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove the O-ring.

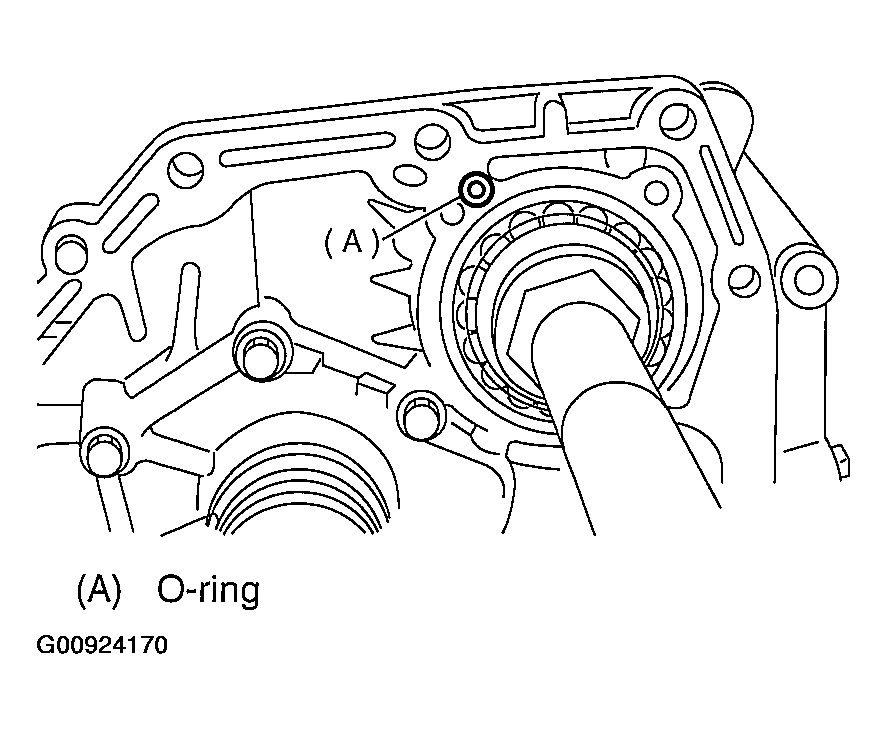

  Fig 5: Removing O-Ring
  Courtesy of SUBARU OF AMERICA, INC.
3. Remove the oil seal from oil seal retainer.

  Fig 6: Removing Oil Seal From Oil Seal Retainer
  Courtesy of SUBARU OF AMERICA, INC.
