Center Differential Carrier: Removal

  1. Remove the transmission assembly from vehicle. Refer to REMOVAL .
  2. Remove the rear wheel speed sensor, and separate the extension case from the transmission case. Refer to REMOVAL .
  3. Pull out the rear driveshaft. Refer to REMOVAL .
  4. Using the special tools, pull out the center differential carrier assembly.

    ST1 499737000 PULLER

    ST2 899524100 PULLER SET

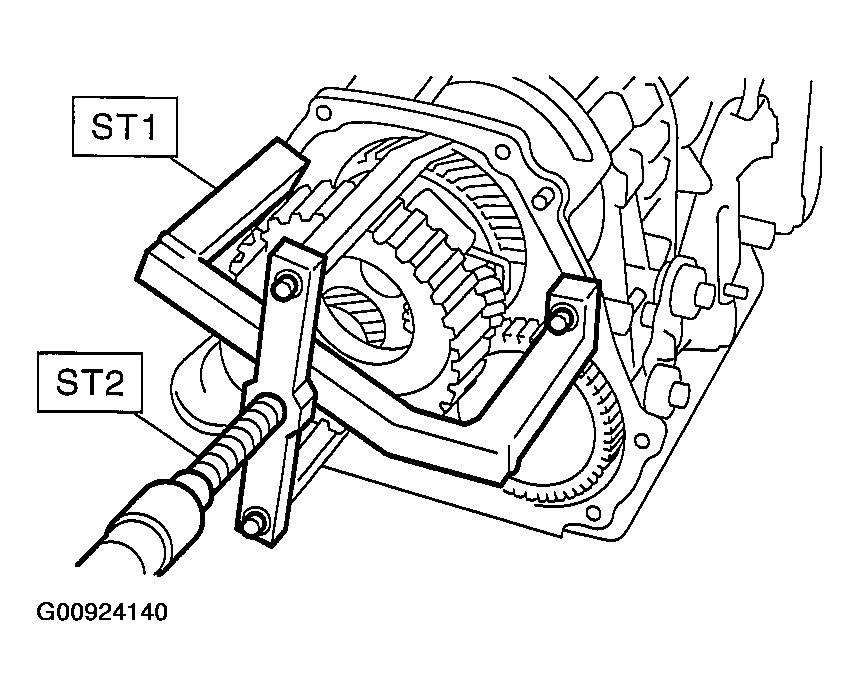

    Fig 1: Pulling Out Center Differential Carrier Assembly Using Special Tool
    G00924140Courtesy of SUBARU OF AMERICA, INC.
  5. Pull out the shim(s) from transmission case.
