Center Differential Carrier: Disassembly

Remove the seal rings.

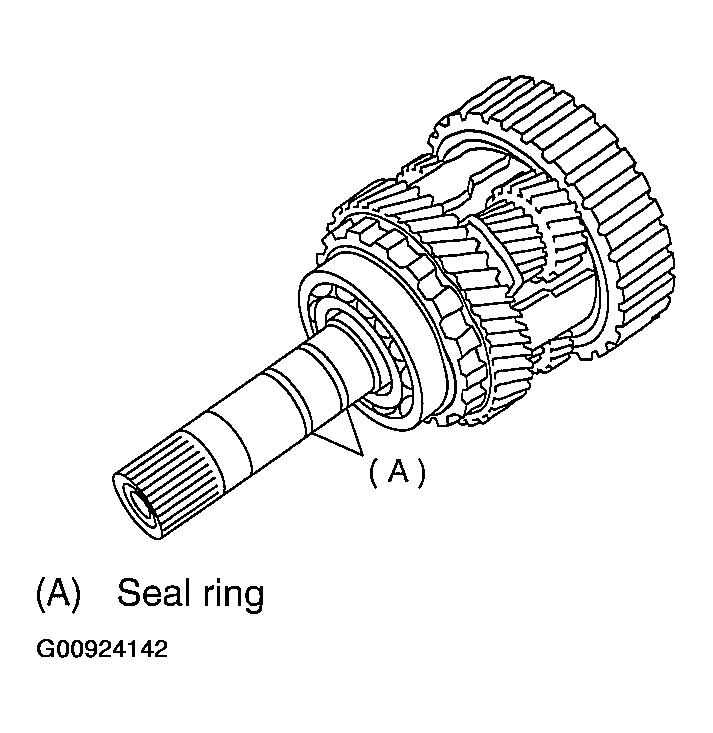

Fig 1: Removing Seal Rings
Courtesy of SUBARU OF AMERICA, INC.
Using a press and the ST, remove the ball bearing.
ST 498077600 REMOVER

Fig 2: Removing Ball Bearing Using Special Tool
Courtesy of SUBARU OF AMERICA, INC.
Remove the snap ring, and pull out the shaft from the center differential assembly.

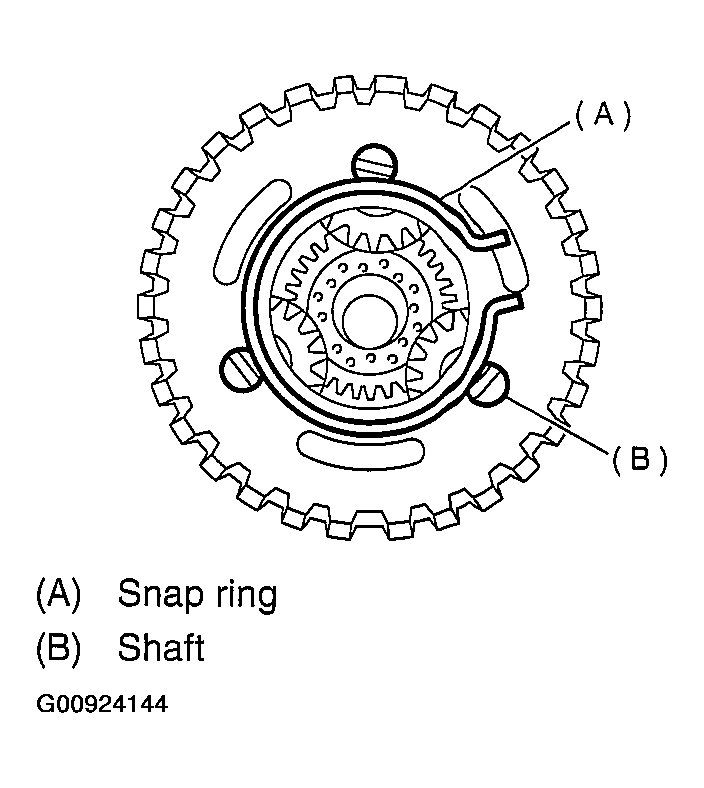

Fig 3: Removing Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Remove the thrust washers, pinion gears, and washers from the center differential assembly.

Fig 4: Removing Thrust Washers, Pinion Gears & Washers From Center Differential Assembly
Courtesy of SUBARU OF AMERICA, INC.
Pull out the intermediate shaft and thrust bearing.
