Automatic Transmission - Mechanism & Function
>>
Hydraulic Control Valve
>>
Construction
>>
Non-Turbo Models
Non-Turbo Models

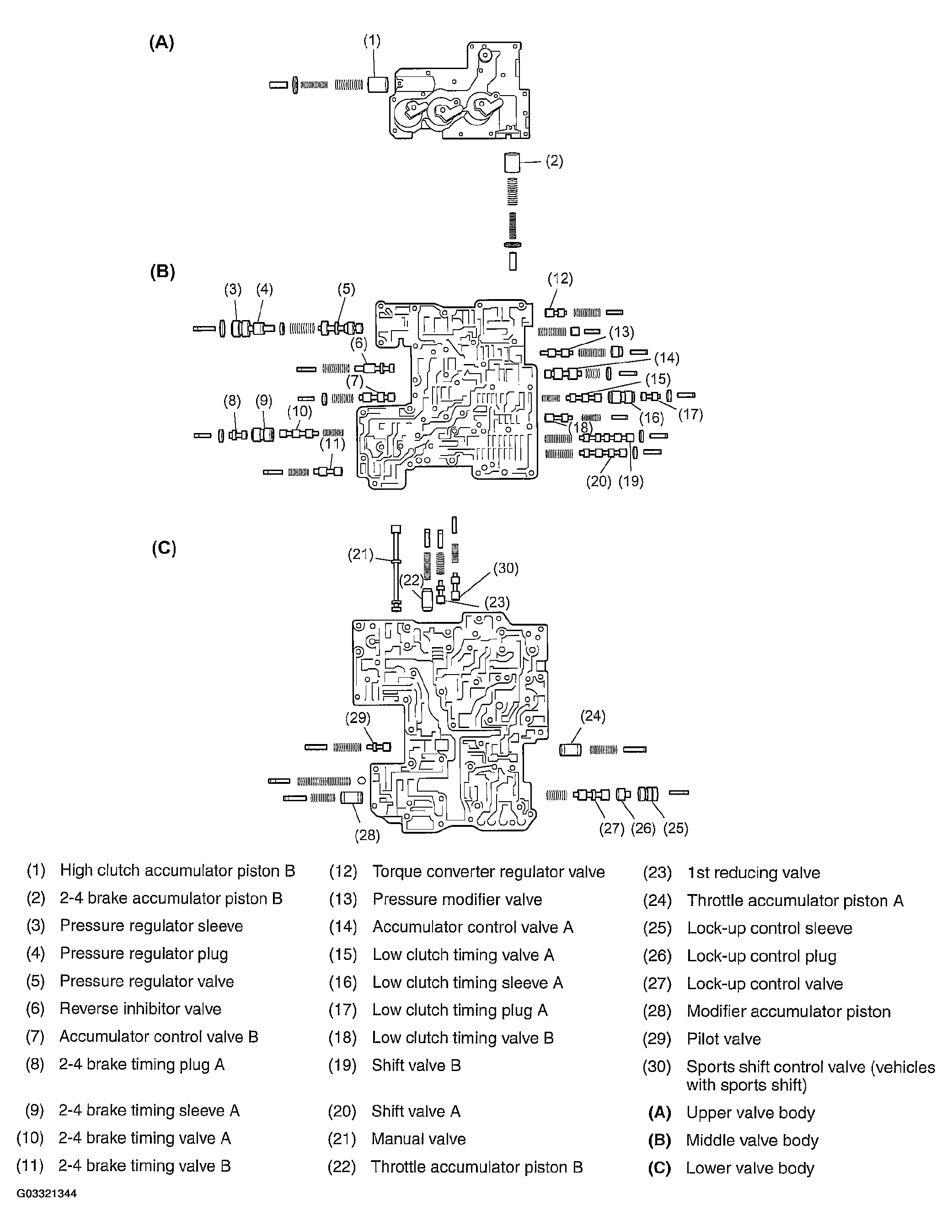

Fig 1: Exploded View Of Hydraulic Control Valve
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
