2.5 L Model

Drain fluid from the reservoir tank.
Disconnect pipe D from return hose and suction hose from oil pump.
CAUTION:
- Do not allow fluid from the hose end to come into contact with pulley belt.
- To prevent foreign matter from entering the hose and pipe, cover the open ends of them with a clean cloth.

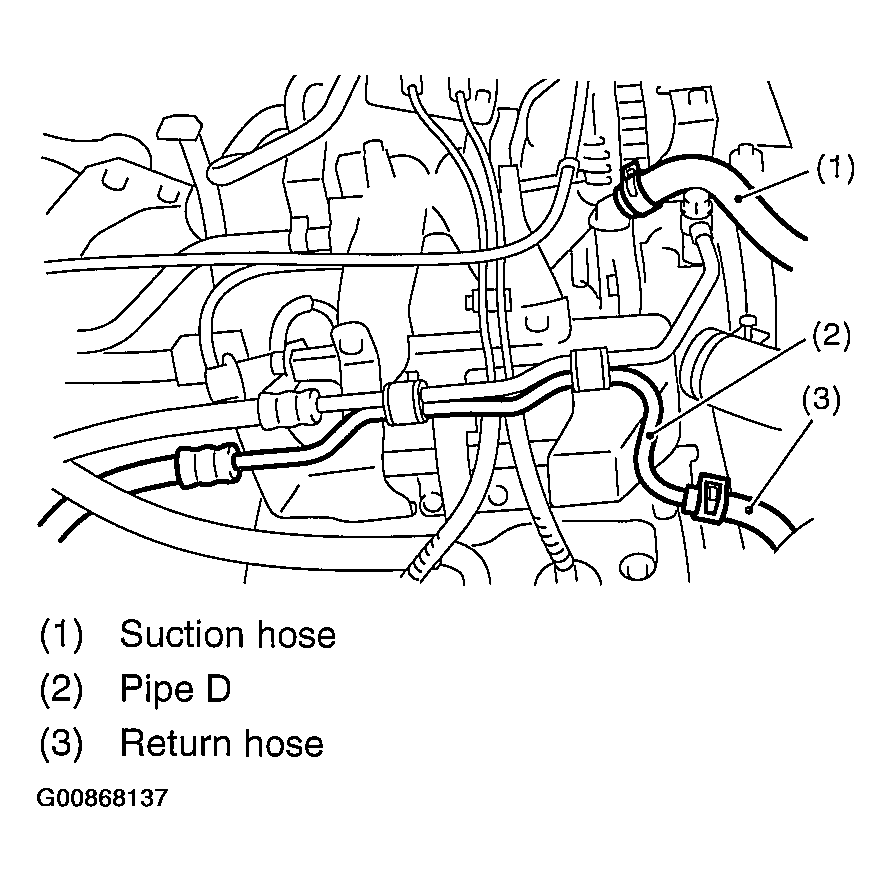

Fig 1: Disconnecting Pipe D From Return Hose & Suction Hose From Oil Pump (Non-Turbo Model)
Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Disconnecting Return Hose & Suction Hose From Reservoir Tank (Turbo Model)
Courtesy of SUBARU OF AMERICA, INC.
Remove reservoir tank from bracket by pulling it upwards.
