Electrical Components Location: Location: Transmission

• MODULE

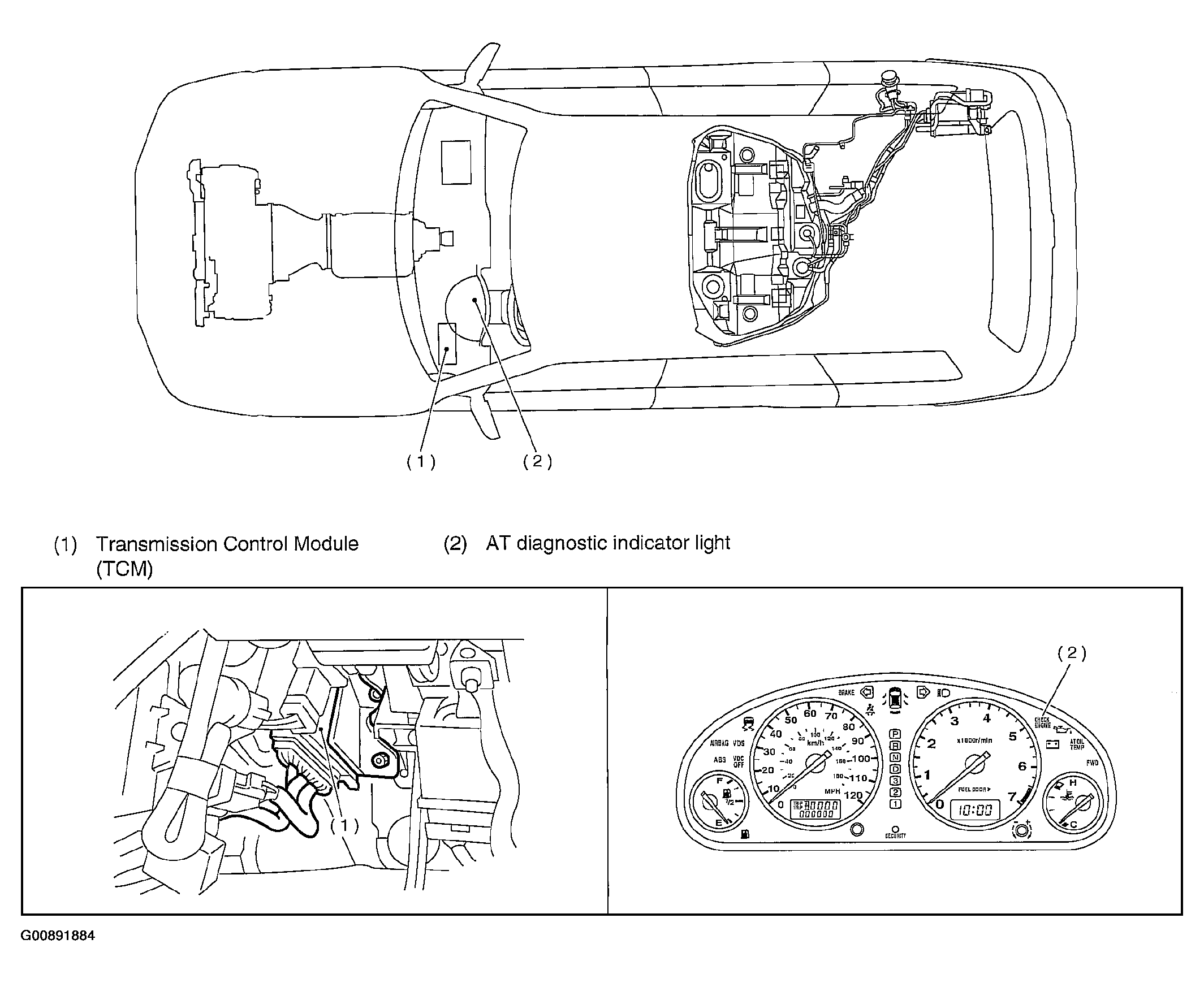

  Fig 1: Identifying Transmission Module

  Courtesy of SUBARU OF AMERICA, INC.
• SENSOR

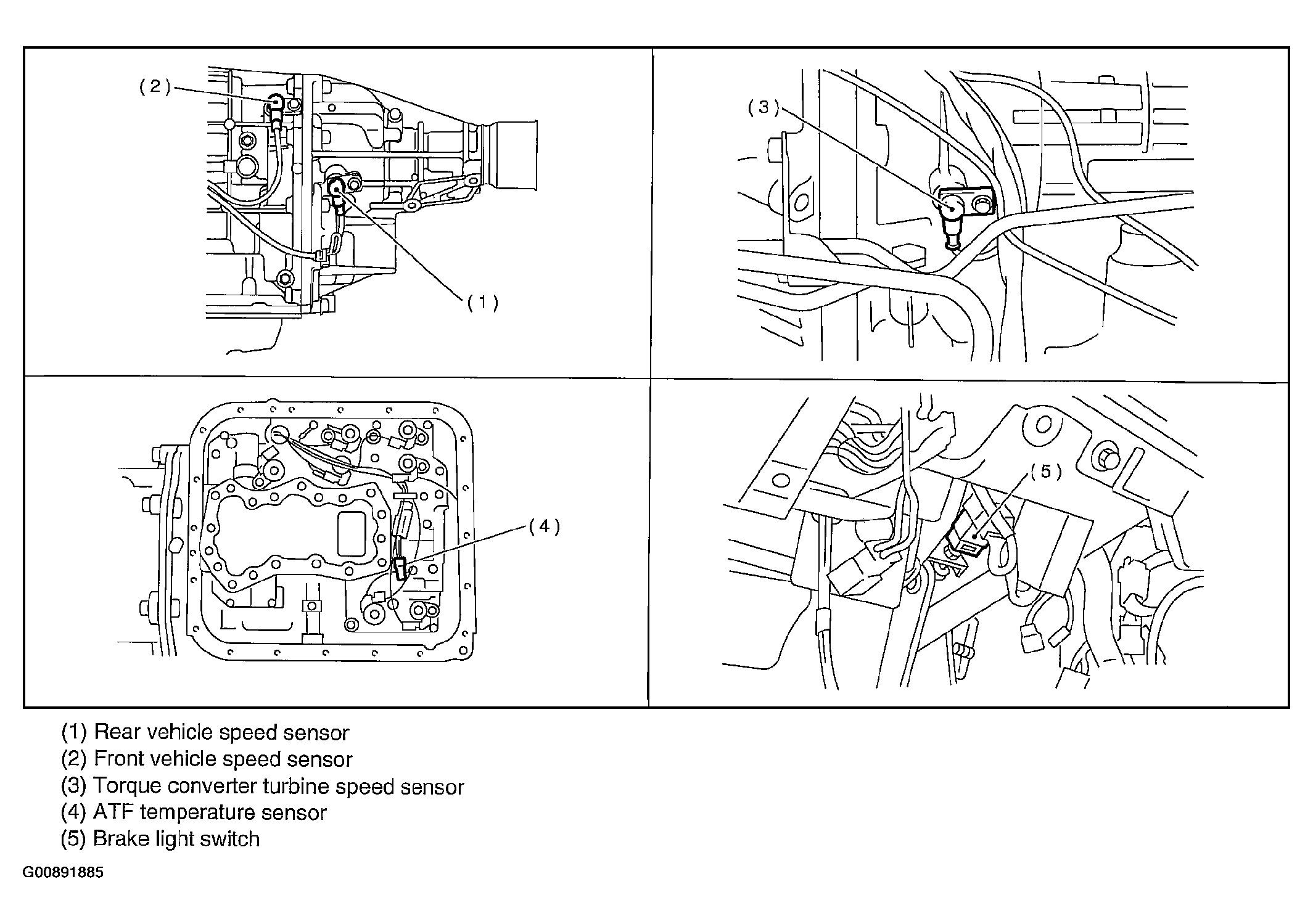

  Fig 2: Identifying Transmission Module Sensor

  Courtesy of SUBARU OF AMERICA, INC.
• SOLENOID VALVE AND SWITCH

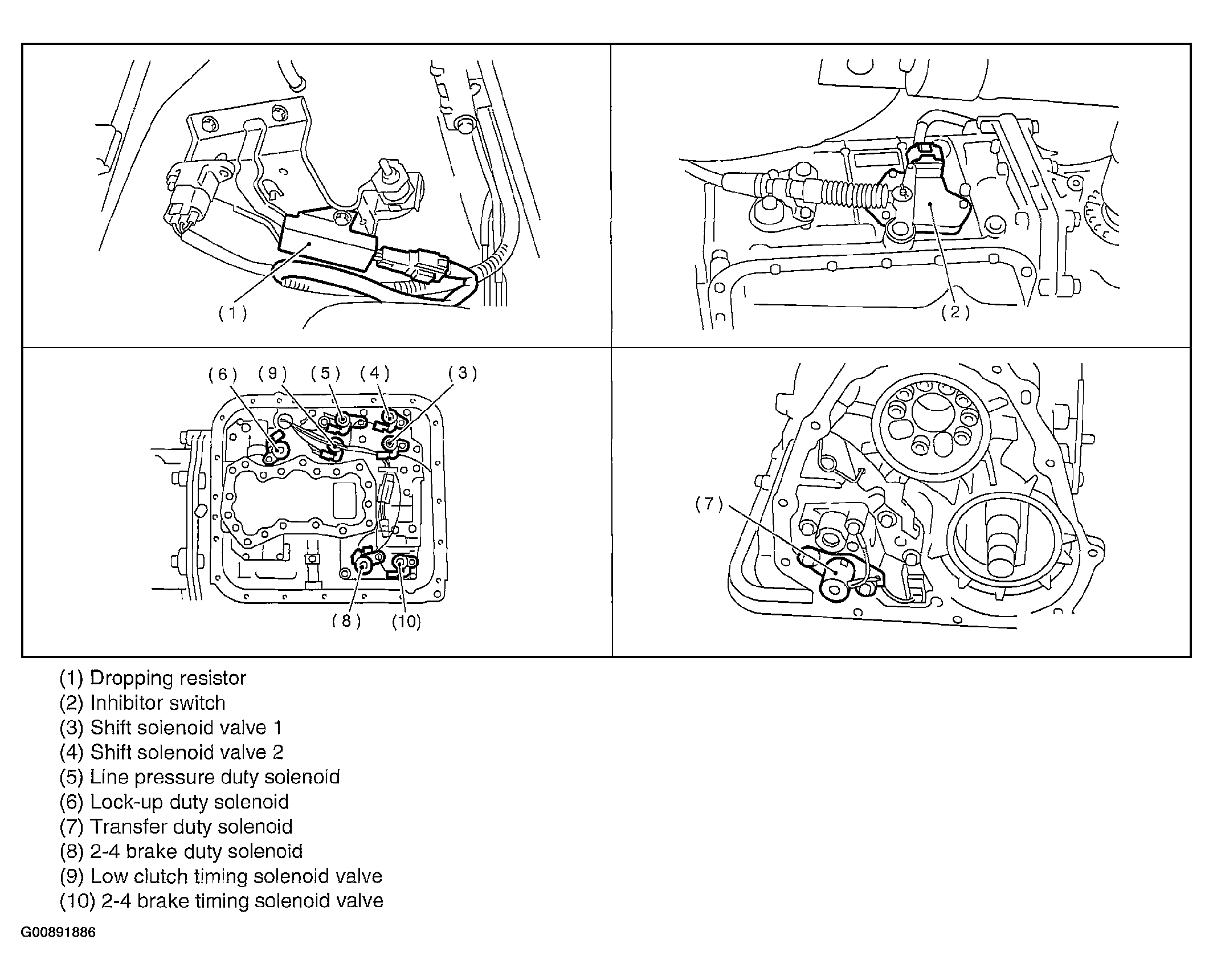

Fig 3: Identifying Solenoid Valve & Switch (AT Model)

Courtesy of SUBARU OF AMERICA, INC.
