RH Side

Release fuel pressure.
Refer to FUEL .
Open fuel flap lid, and remove fuel filler cap.

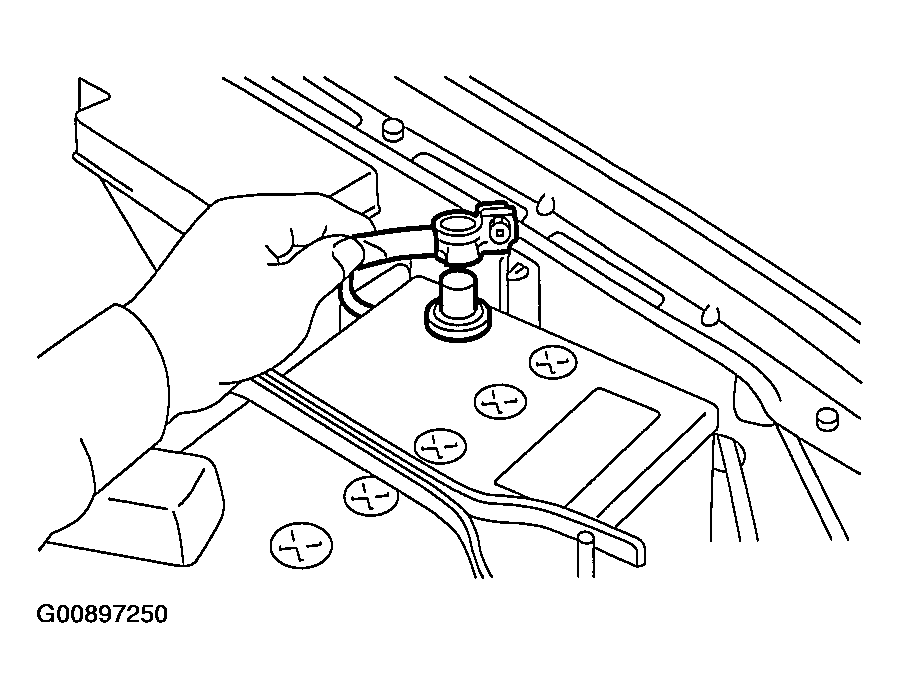

Disconnect ground cable from battery.

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove air cleaner lower case. Refer to REMOVAL , Air Cleaner.
Remove power steering pump and tank from brackets.
1. Remove V-belt.
  Refer to REMOVAL , V-belt.

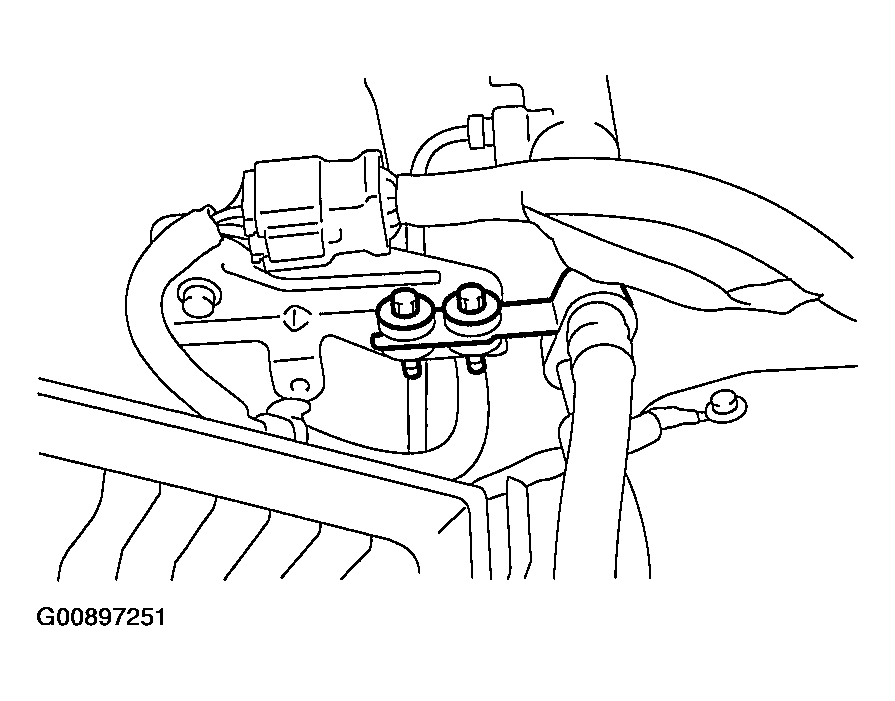

2. Remove power steering oil pipe with bracket.

  Fig 2: Removing Power Steering Oil Pipe
  Courtesy of SUBARU OF AMERICA, INC.

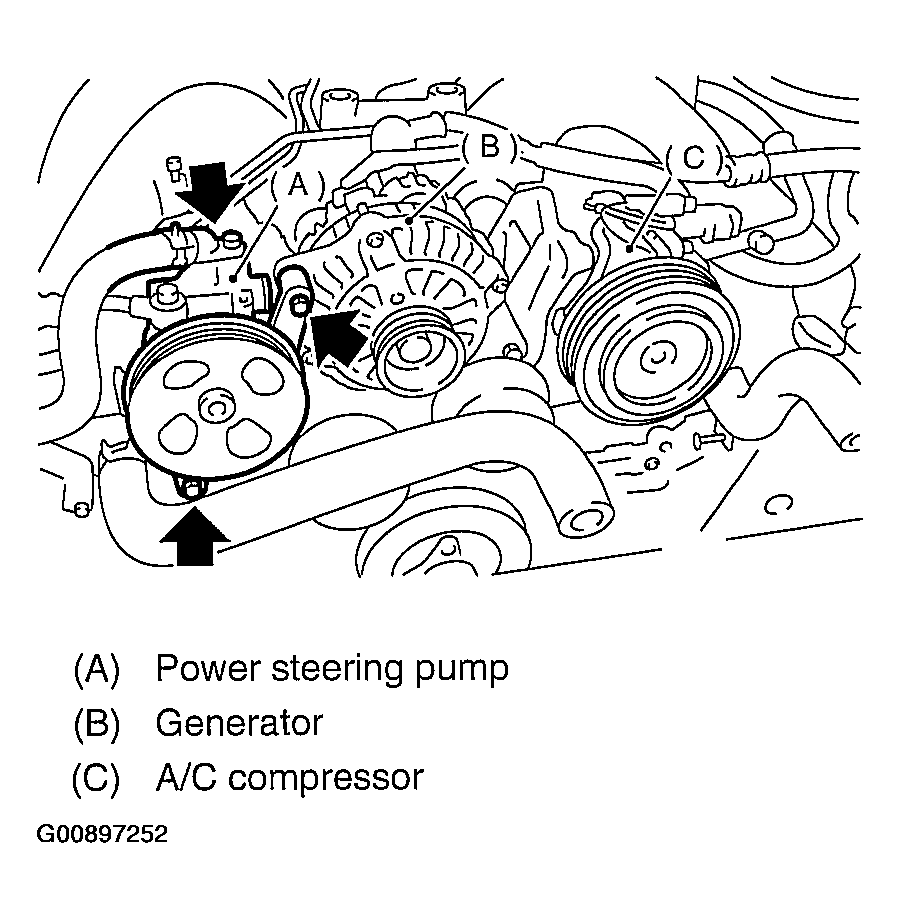

3. Remove bolts which install power steering pump bracket.
  CAUTION: Do not disconnect power steering hose.

  Fig 3: Removing Power Steering Pump Bracket Bolts
  Courtesy of SUBARU OF AMERICA, INC.

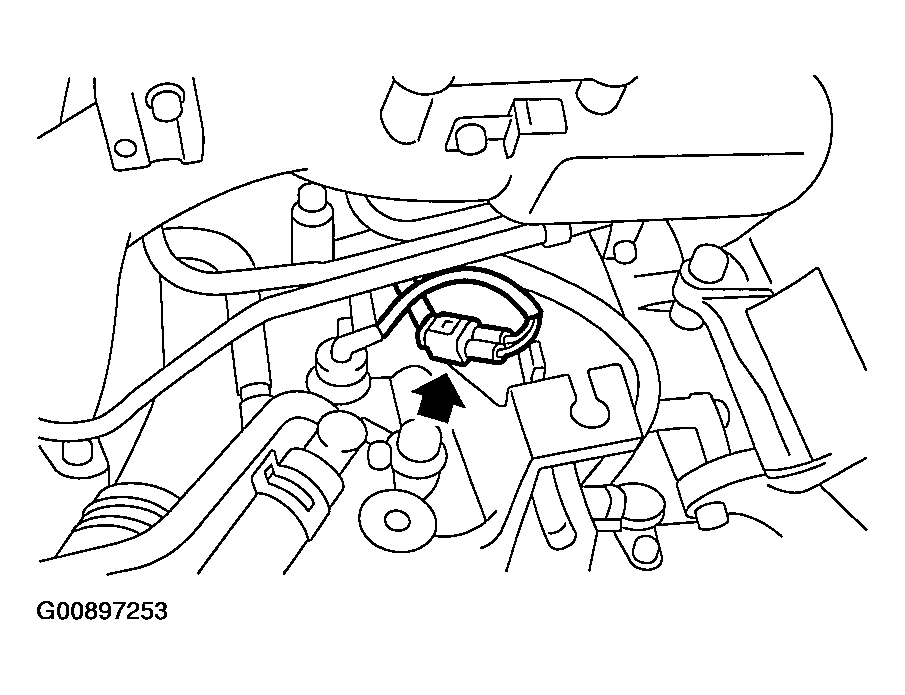

4. Disconnect power steering pump switch connector.

  Fig 4: Disconnecting Power Steering Pump Switch Connector
  Courtesy of SUBARU OF AMERICA, INC.

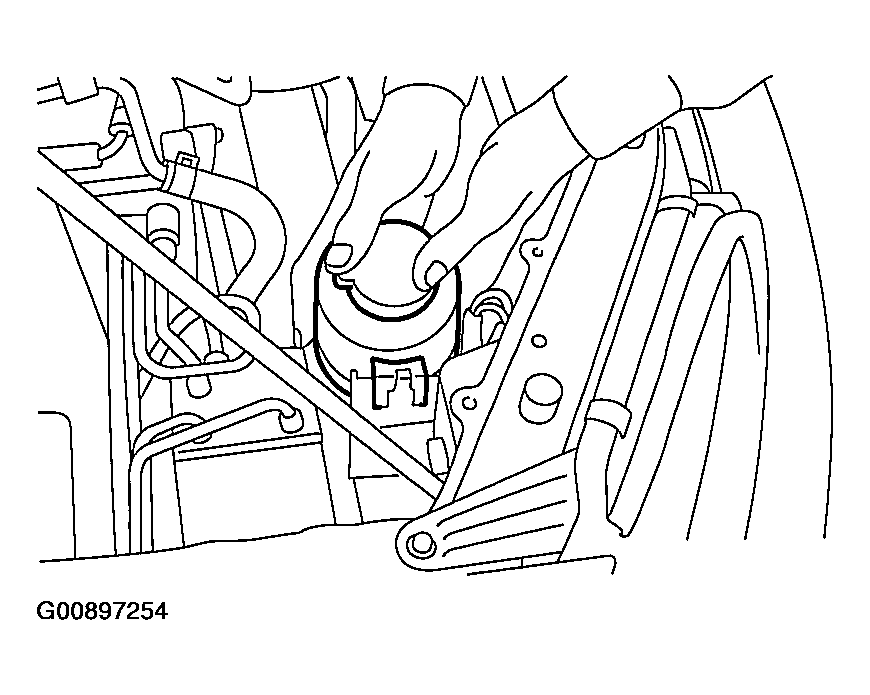

5. Remove power steering tank from the bracket by pulling it upward.

  Fig 5: Removing Power Steering Tank
  Courtesy of SUBARU OF AMERICA, INC.

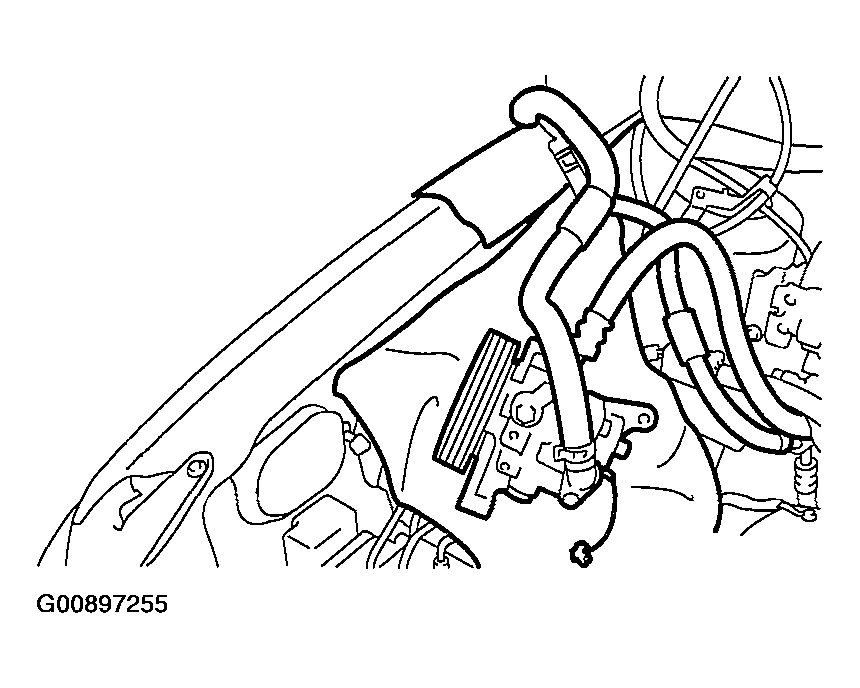

6. Place power steering pump on the right side wheel apron.

  Fig 6: Placing Power Steering Pump
  Courtesy of SUBARU OF AMERICA, INC.

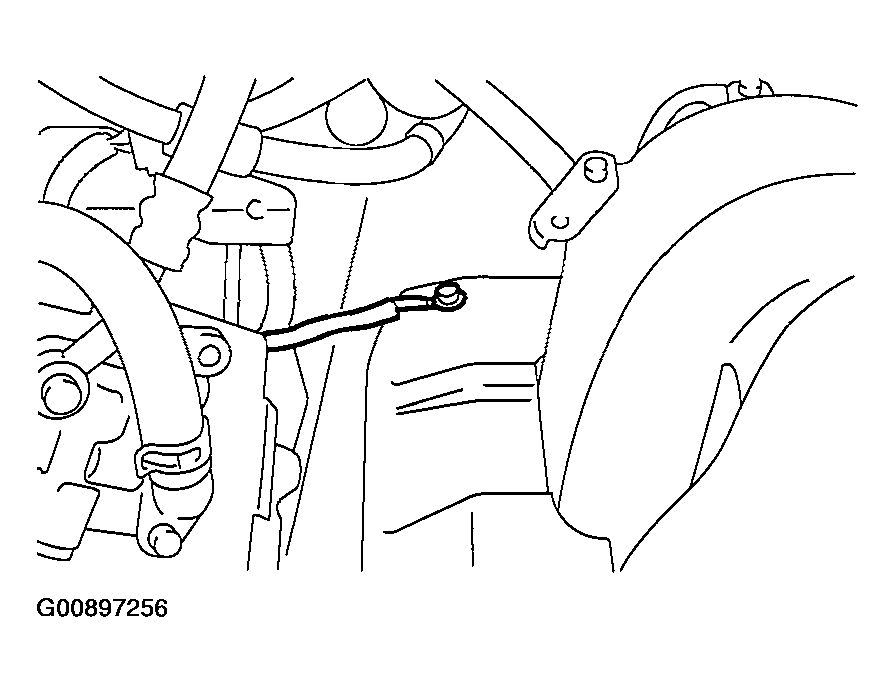

Remove ground cable from fuel pipe protector RH.

Fig 7: Removing Ground Cable
Courtesy of SUBARU OF AMERICA, INC.

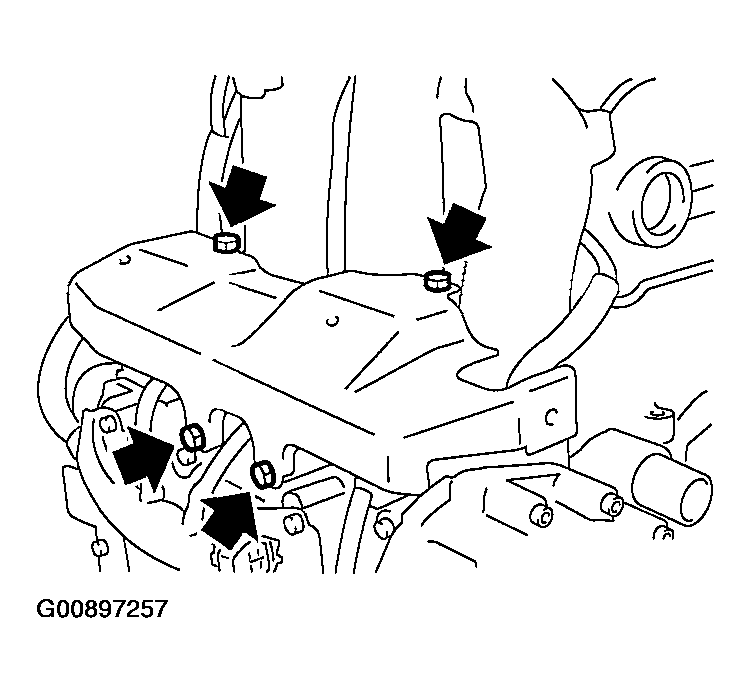

Remove fuel pipe protector RH.

Fig 8: Removing Fuel Pipe Protector
Courtesy of SUBARU OF AMERICA, INC.

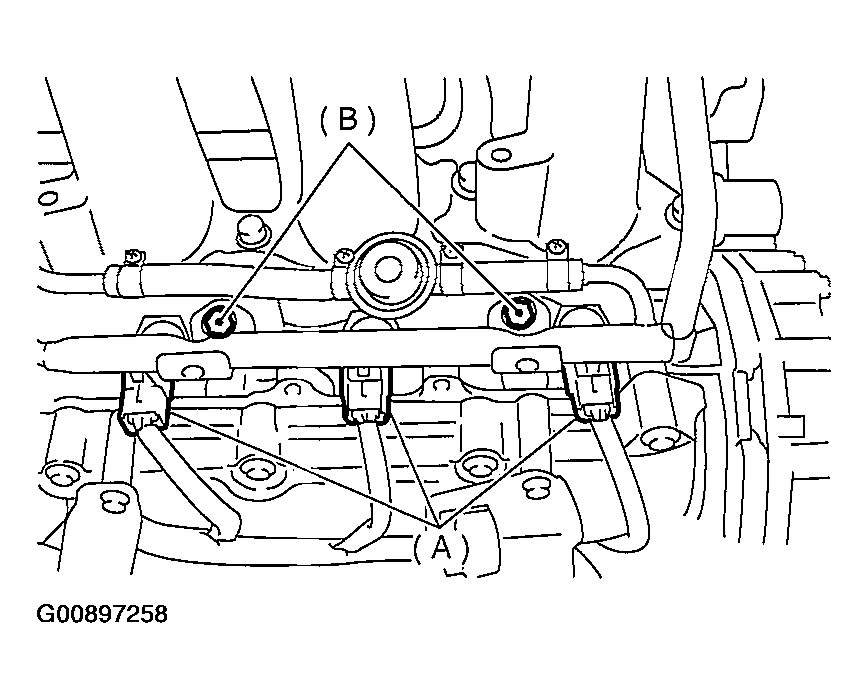

Disconnect connector (A) from fuel injector.
Remove bolt (B) which holds injector pipe onto cylinder head.

Fig 9: Removing Injector Pipe Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove fuel injector while lifting up fuel injector pipe.
