LH Side

Release fuel pressure. Refer to FUEL .
Open fuel flap lid, and remove fuel filler cap.
Disconnect ground cable from battery.

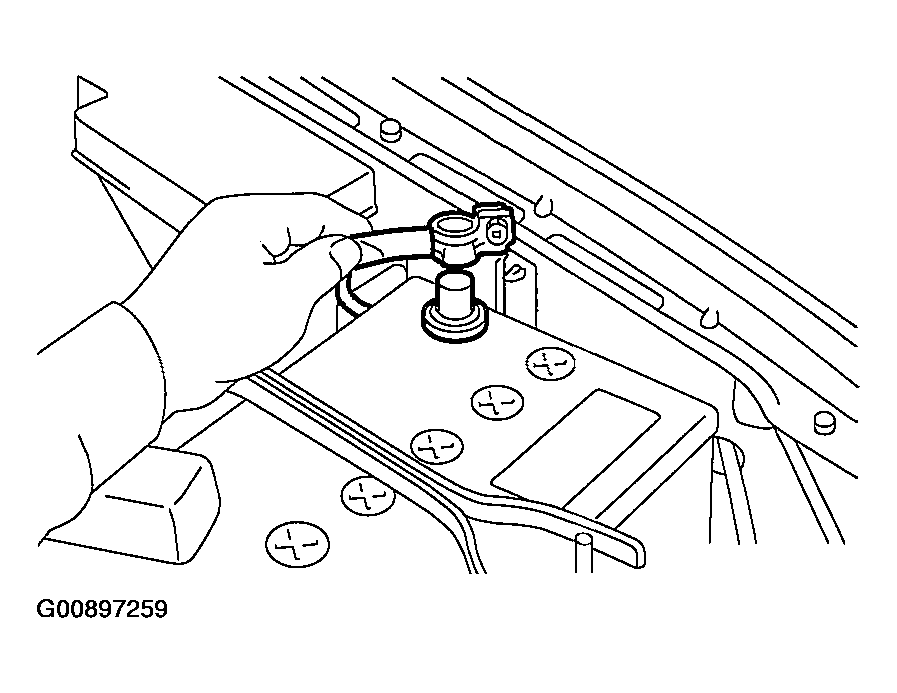

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove two bolts which install washer tank on body.

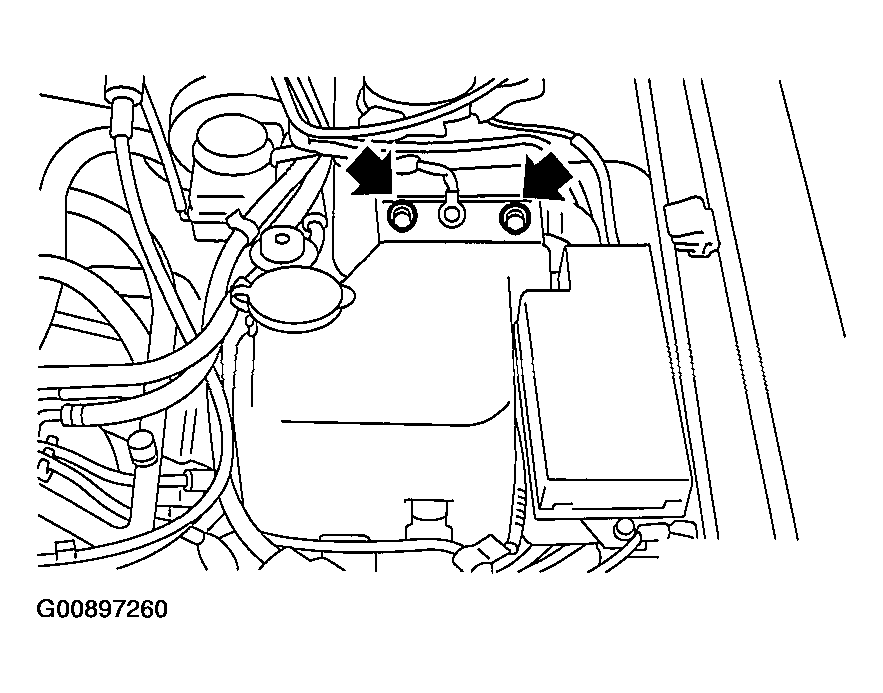

Fig 2: Removing Washer Tank Bolts
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector from front window washer motor.
Disconnect connector from rear gate glass washer motor.

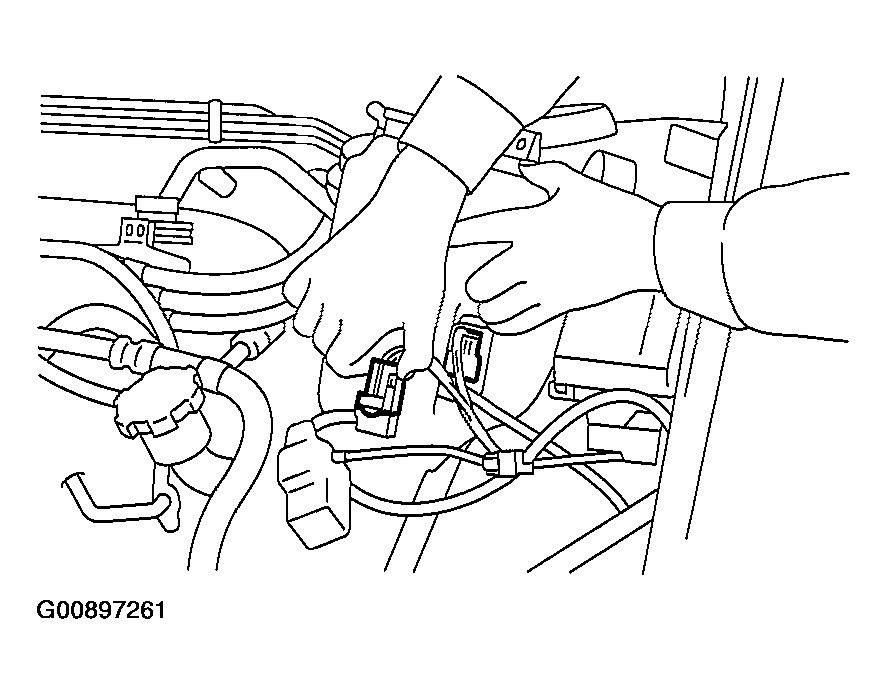

Fig 3: Disconnecting Gate Glass Washer Motor Connector
Courtesy of SUBARU OF AMERICA, INC.
Disconnect rear window glass washer hose from washer motor, then plug connection with a suitable cap.
Move washer tank upward.

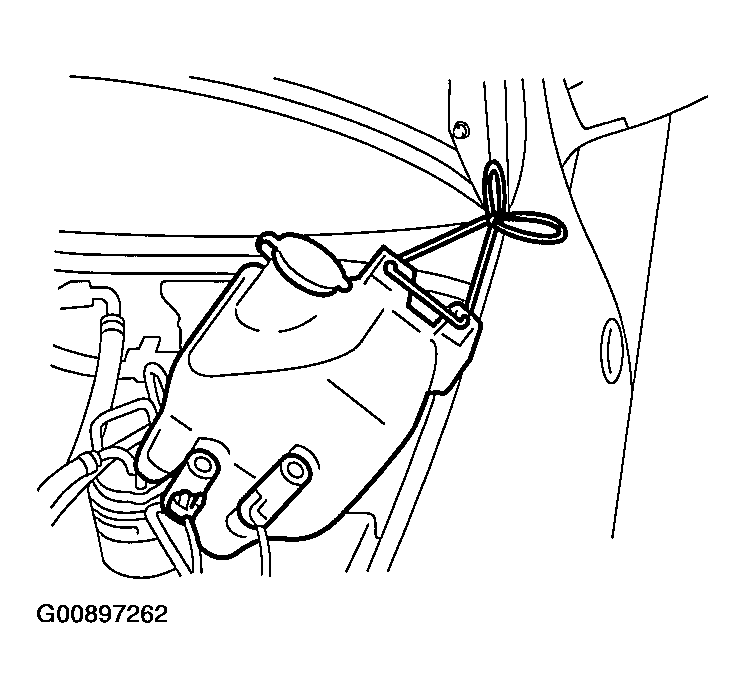

Fig 4: Moving Washer Tank Upward
Courtesy of SUBARU OF AMERICA, INC.
Remove ground cable from fuel pipe protector LH.

Fig 5: Removing Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove fuel pipe protector LH.

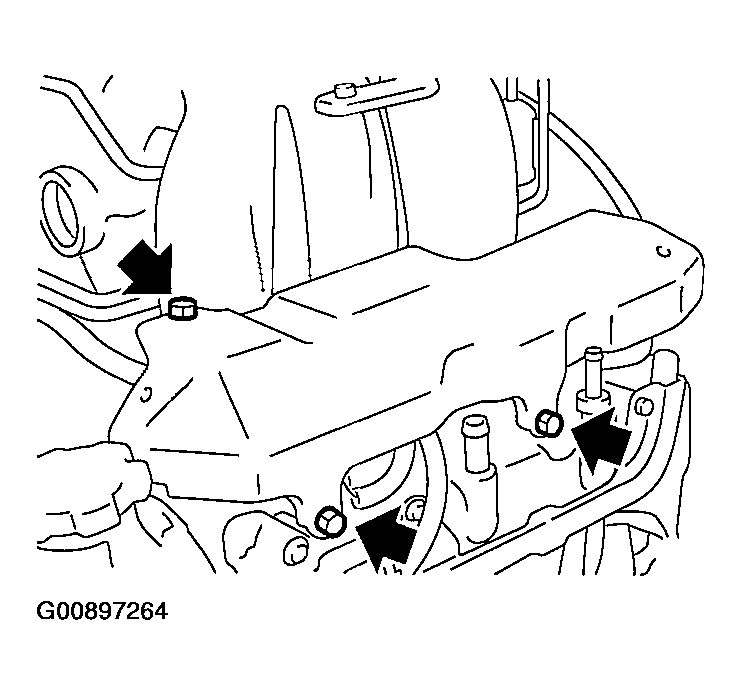

Fig 6: Removing Fuel Pipe Protector
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector (A) from fuel injector.
Remove bolt (B) which holds injector pipe onto cylinder head.

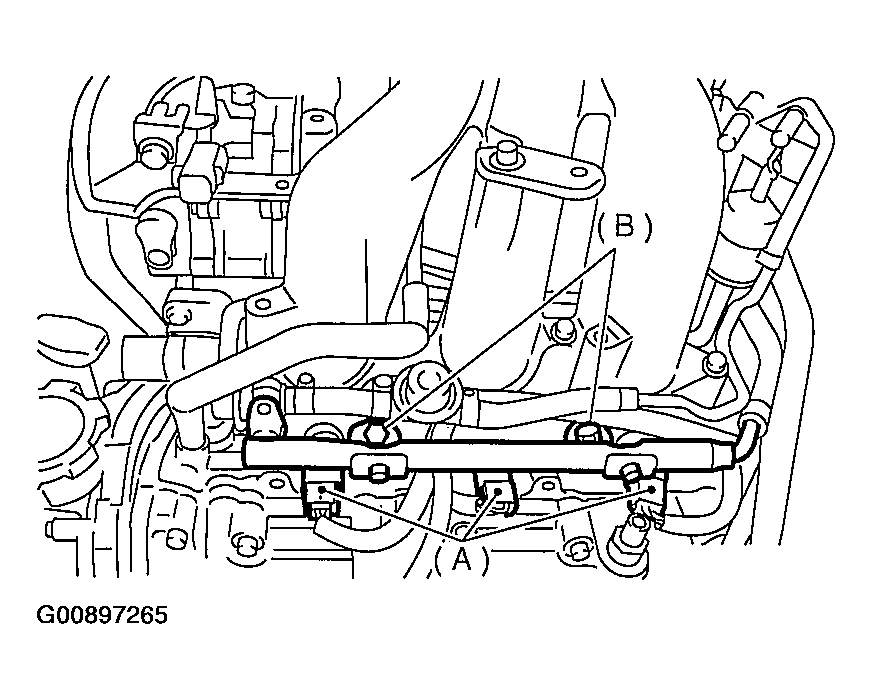

Fig 7: Removing Injector Pipe Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove fuel injector while lifting up fuel injector pipe.
